Kenmerken
Aantal dieren
6 Paarden
Familie
Equipe Familie, 15000 kg
Anzahl Schlafplätze
The Equipe L6 for up to six horses in lengthwise position has an impressive range of features. The large loading ramps at the side offer horse and riders an equally high standard of comfort particularly during the loading.
Technische specificaties
Basis
Aantal dieren
6 Paarden
Wohnung
Badezimmer
Gewicht
Bruto Gewicht
15000 kg
Draagvermogen
6450 kg
Buitenafmeting
Gesamtlänge
8250 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Binnenafmeting breedte
Binnenmaten Lengte
6450 mm
Binnenmaten Breedte
2440 mm
Binnenmaten Hoogte
2450 mm
Standaarduitrusting
Opbouw
-
Opbouw algemeen
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- 24mm high density plywood platform
- 2 Loading ramps with rubber covering with special step bars+side stop
- 2 feed alleys (aluminum checker plate floor) with separate external
-
Opbouw paardenstalruimte
- Tethering rings
- L-partitions (4x) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)

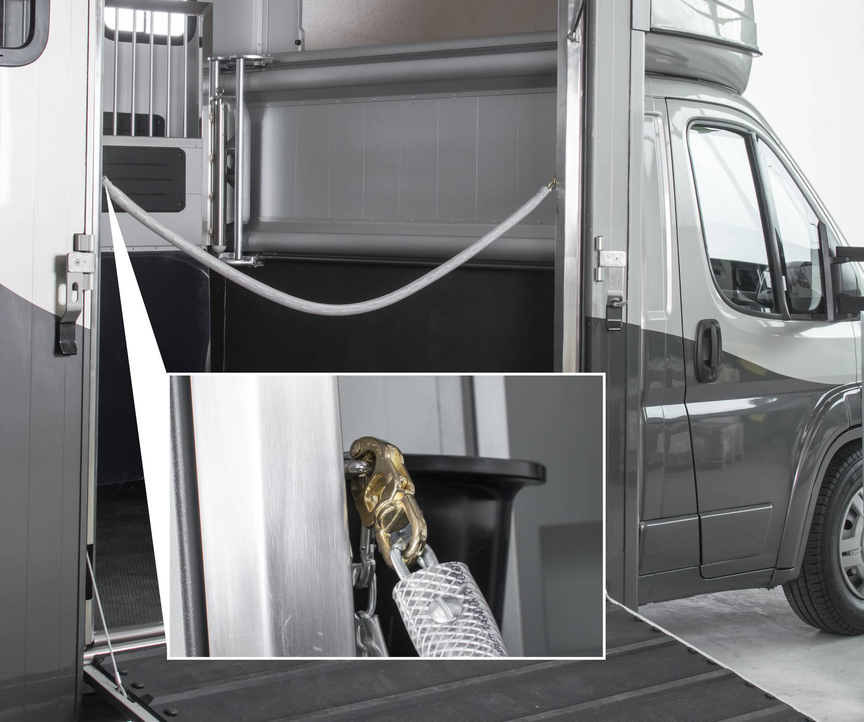

- Cordon in front of the loading flap

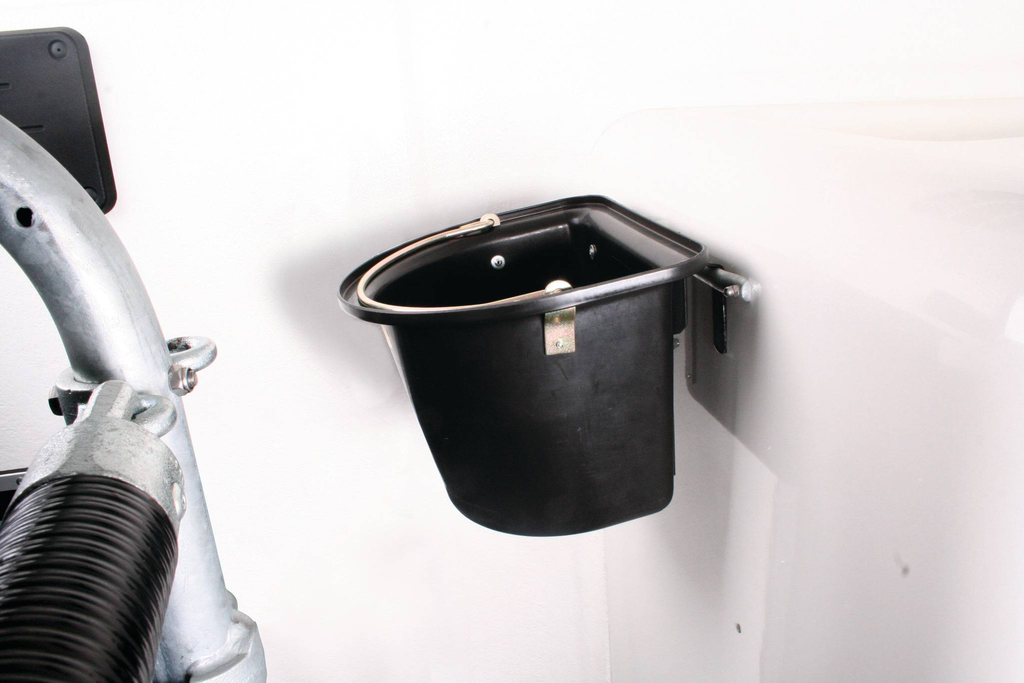

- Feeding trough for hanging, black plastic, with suspension (6pc.)
- Hay net hooks (1 per horse)
- Aluminum partition profiling
- Roof skylights (2)
- Lighting switchable from the driver's cab (4 lights in horse area)
- Plastic kicking protection on left side
Bovendien
-
Elektrotechniek
- CEE input socket (230 V) with fuse and charger
- battery guard
- AGM battery 200 AH
-
Lakken
- Painture: white
Chassis
-
Chassis
- 2x12V/100 Ah batteries
- Front passenger seat, simple
- Driver swing seat standard
- Tank 120 l
- Mercedes-Benz Atego Neu 15 L
- 177 hp /130 KW
- Cruisecontrol
- front springs parabolic
- AdBlue® tank 25 l
- PowerShift 3 transmission
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Daytime Running Light
Accessoires
Opbouw
-
Opbouw algemeen
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Ramp limiter for loading flap, of anodised aluminium profile

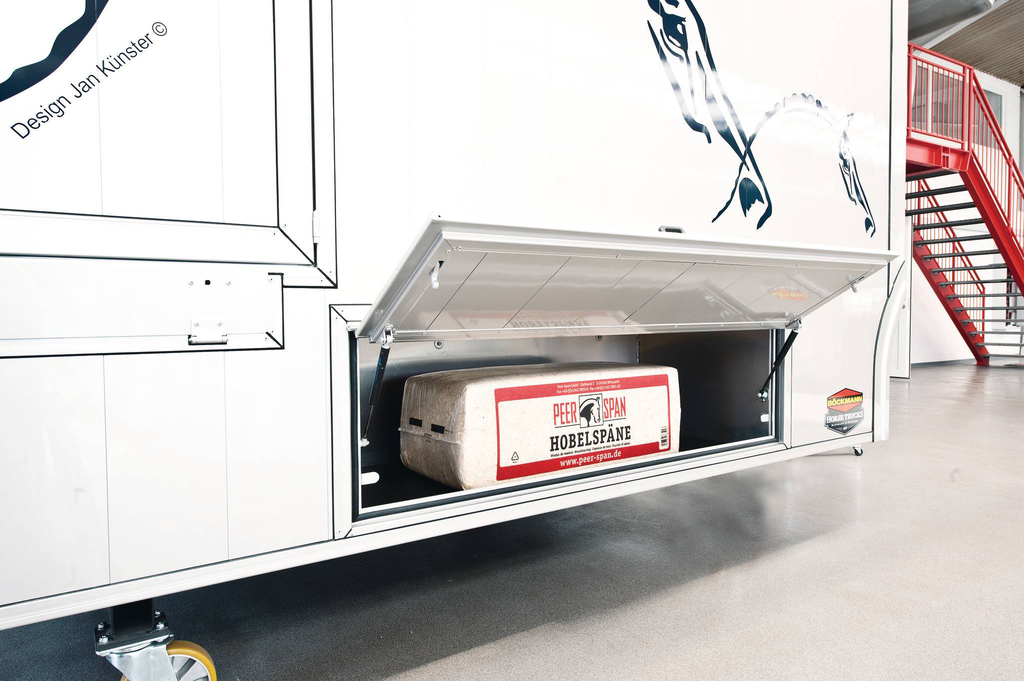

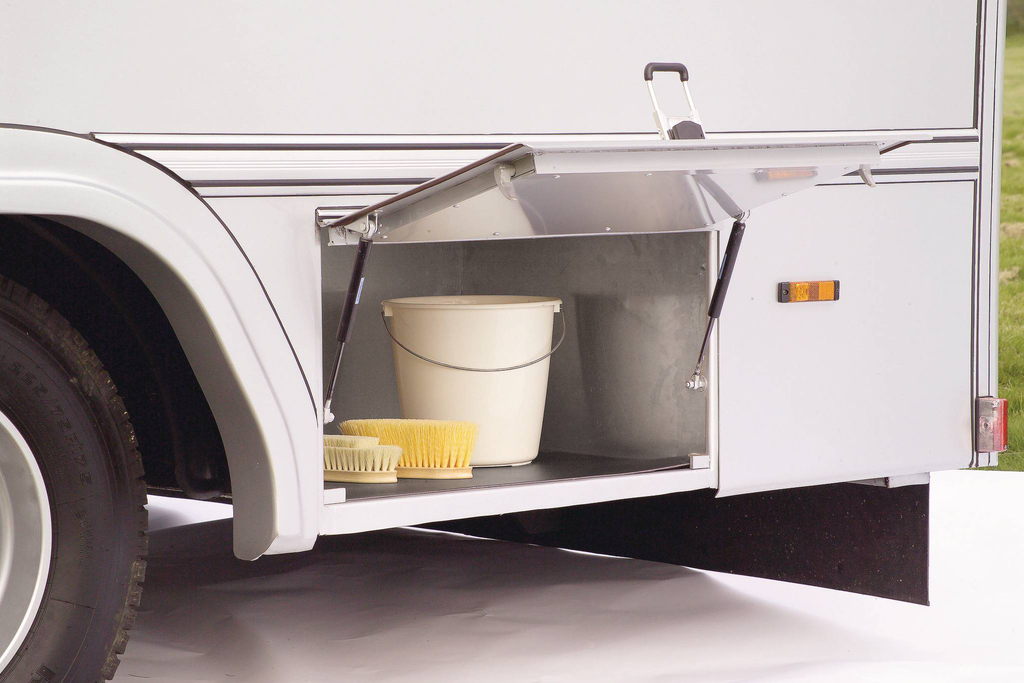

- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Opbouw paardenstalruimte
- Selectie aanbind mogelijkheden
- Airliner rail with 2 Anbindeketten,
- Selectie tussenschot
- Partition completely closed
- Verdere uitrustingsopties
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed table (slightly oblique plate) instead of feeding trough

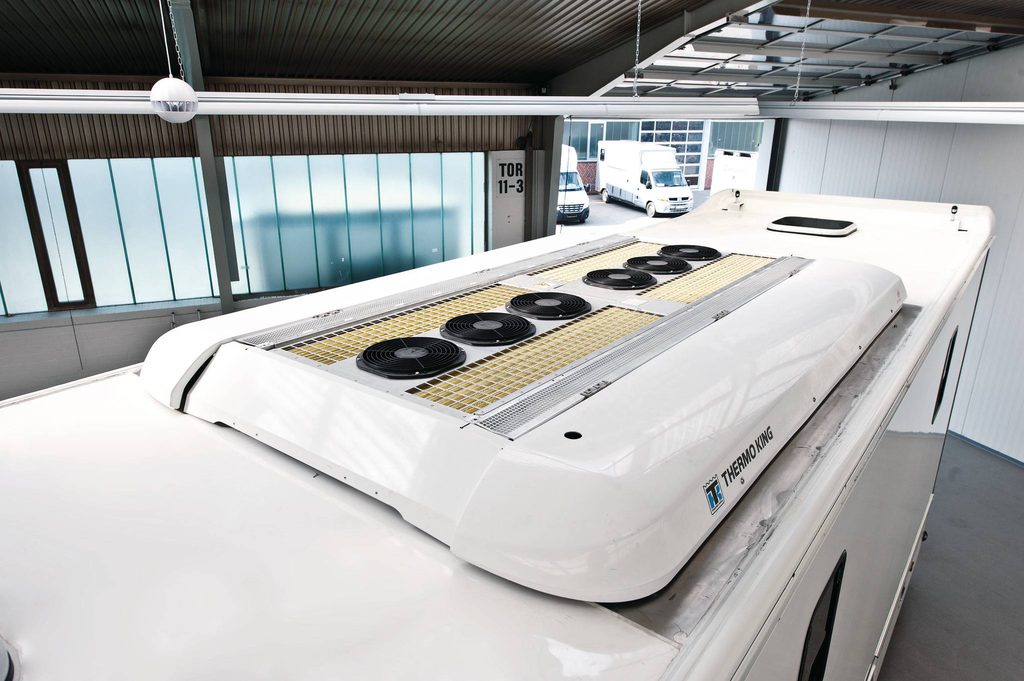

- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, for L-partition
- Excrement slide
- Calm lighting
- Sliding on feed trough /feed table (2 parts)
- Screen made of PVC on feed trough / table
- Temperature control in horse compartment (recordable, separate printo

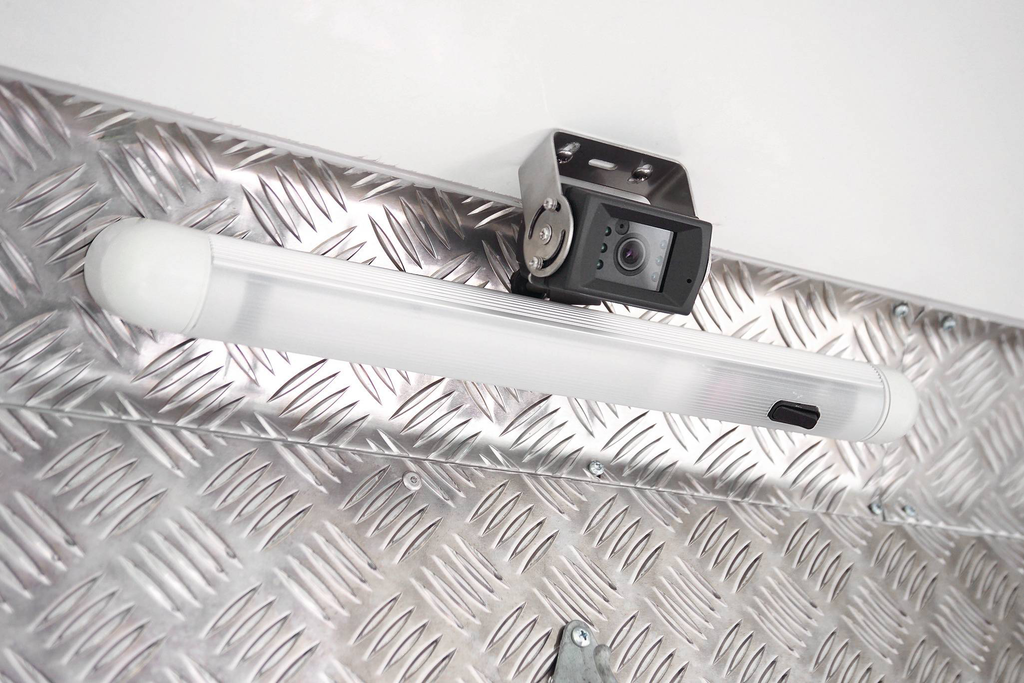

- Video surveillance horses,revers.camera 7Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
-
Opbouw zadelkamer

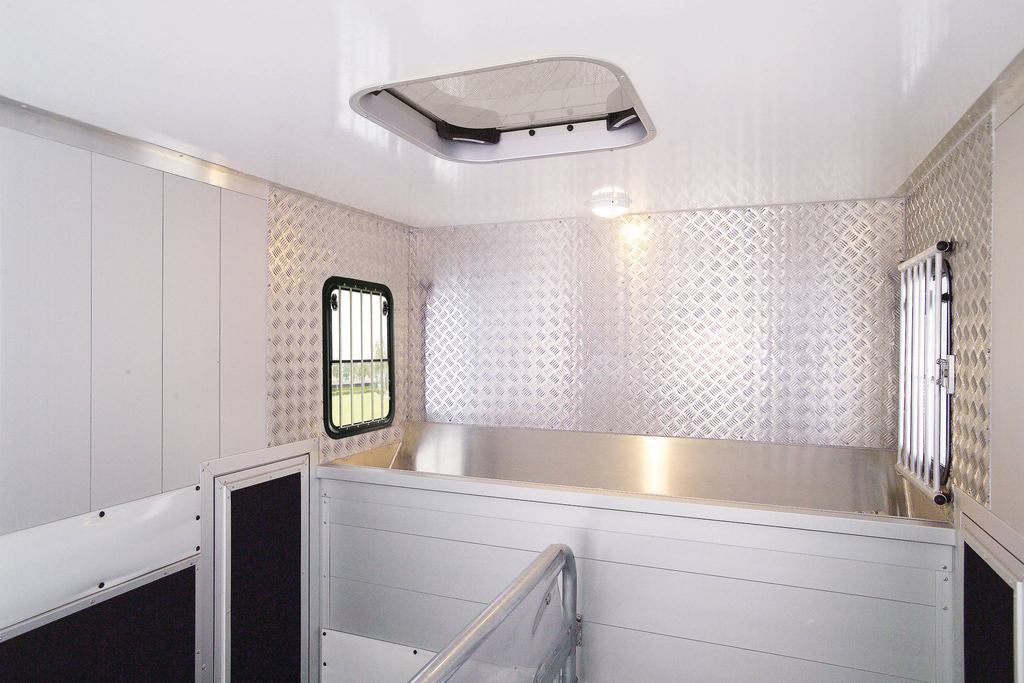

- Tack room in the intermediate gear/feed alley, outside+internal access
Bovendien
-
Lakken
- Lettering 2-Horse-Heads left and right
- Accessoires
Chassis
-
Chassis
- Selectie batterij sterkte
- 2x12V/165 Ah batteries
- Selectie passagiersstoel
- Passenger suspension seat, comfort
- Selectie stuurstoel
- Driver's suspension seat, comfort
- Selectie tank maat
- Tank 180 l
- Verdere uitrustingsopties
- Trailer coupling
- trailer socket. 12-V, 13 pole
- electric windows
- Air Conditioning
- Extended central locking systems
- Middle seat with 3-point seat belt
- Halogen fog lamp
- CD-radio, Bluetooth
