Afbeeldingen kunnen accessoires bevatten die niet in de standaard leveringsomvang zijn opgenomen. Illustraties en technische gegevens kunnen enigszins afwijken als gevolg van de voortdurende verdere ontwikkeling. Fouten en wijzigingen voorbehouden!
Kenmerken
Aantal dieren
9 Paarden
Familie
Equipe Familie, 26000 kg
Anzahl Schlafplätze

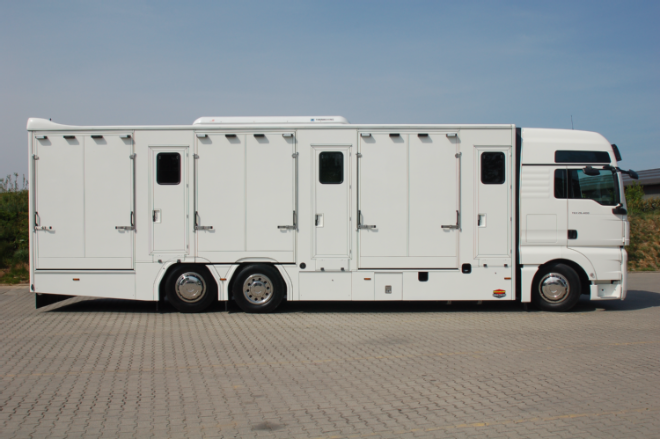

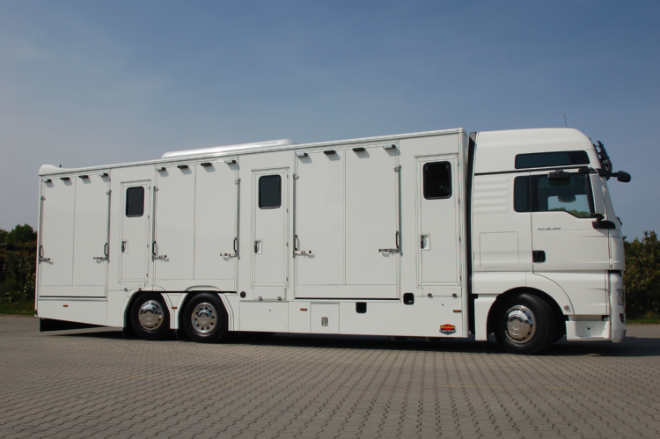

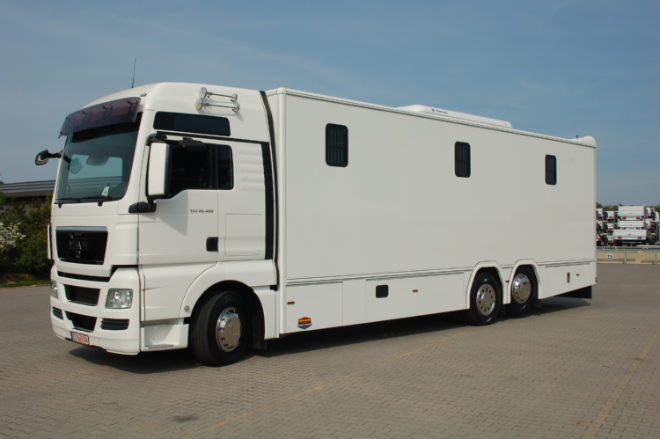

The Big Equipe L with the XXL drivers cab is the ultimate transporter among the horse trucks. Up to nine horses can be comfortably transported in a lengthwise position! You can decide whether your horses stand facing in the direction of travel or the other way and whether two or three horses should be placed next to one another. Our horse compartments have a host of options.
Technische specificaties
Basis
Aantal dieren
9 Paarden
Wohnung
Badezimmer
Gewicht
Bruto Gewicht
26000 kg
Laadvermogen
11855 kg
Buitenafmeting
Totale lengte
11930 mm
Totale breedte
2550 mm
Totale hoogte
4000 mm
Binnenafmeting breedte
Binnenmaten Lengte
9475 mm
Binnenmaten Breedte
2440 mm
Binnenmaten Hoogte
2450 mm
Standaarduitrusting
Opbouw
-
Opbouw algemeen
- Insulated sandwich roof 50 mm thick (GRP)
- 3 feed alleys (aluminum checker plate floor) with separate external
- 24mm high density plywood platform

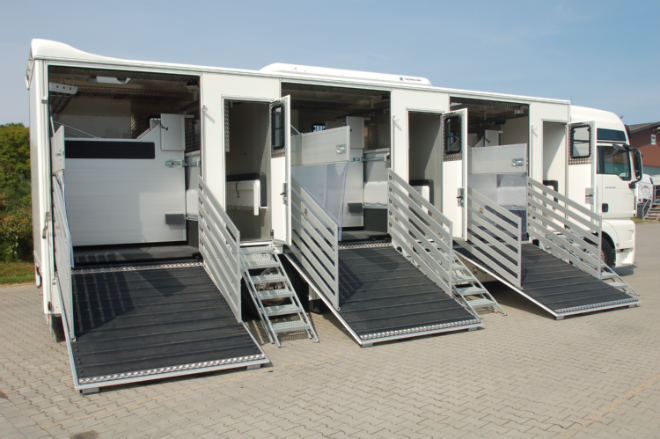

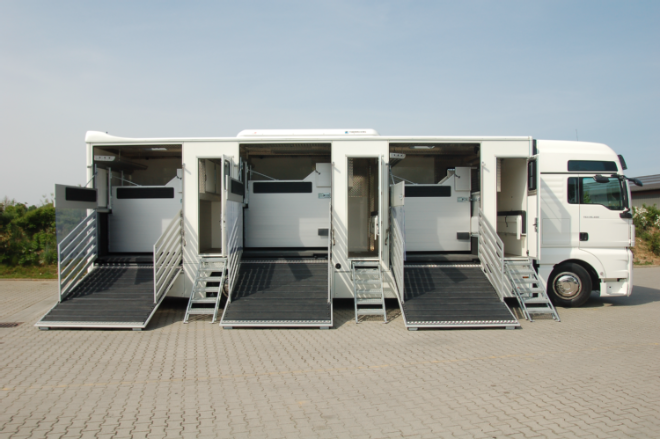

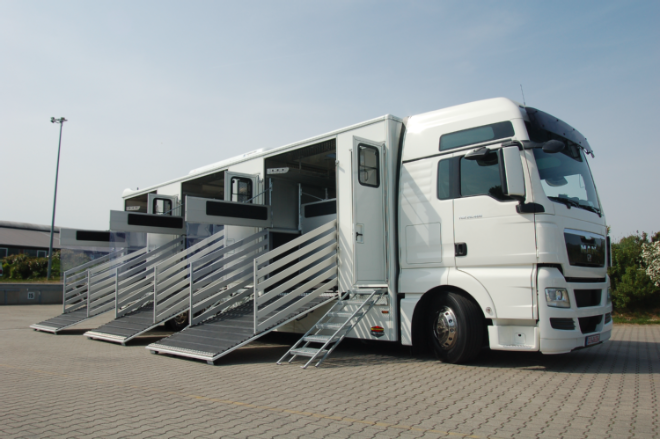

- 3 Loading ramps with rubber covering with special step bars+side stop
- Double ribbed hollow profile, 25 mm, anodized aluminum
-
Opbouw paardenstalruimte
- Tethering rings
- L-partitions (6x) aluminum with transparent PVC curtain
- Feeding trough for hanging, black plastic, with suspension (9pc.)
- Hay net hooks (1 per horse)
- Aluminum partition profiling
- Roof skylights (3)
- Lighting switchable from the driver's cab (6 lights in horse area)
- Plastic kicking protection on left side
- Cordon in front of the loading flap
- Rubber flooring 30 mm (liquid rubber)
Bovendien
-
Elektrotechniek
- CEE input socket (230 V) with fuse and charger
- battery guard
- AGM battery 200 AH
-
Lakken
- Painture: white
Chassis
-
Chassis
- Driver seat standard
- Air Conditioning
- Radio with USB port
- Multifunction steering wheel
- electric windows
- Extended central locking systems
- Wide angle mirror heatable
- Functional seat for passenger
- main mirror electrically adjustable, on drivers side
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- Mercedes-Benz Actros Neu 25 L
- Tank 630 l
- 240 kW / 326 hp
- AdBlue® tank 60 l
- PowerShift 3 transmission
- Cruisecontrol
- Front spring, 7.5 t, 2-leaf
- Trailer coupling
Accessoires
Opbouw
-
Opbouw algemeen
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Opbouw paardenstalruimte
- Selectie aanbind mogelijkheden
- Airliner rail with 2 Anbindeketten,
- Selectie tussenschot
- Partition completely closed
- Verdere uitrustingsopties
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed table (slightly oblique plate) instead of feeding trough
- Air conditioning, 960W
- Head divider, for L-partition
- Excrement slide
- Calm lighting
- Sliding on feed trough /feed table (2 parts)
- Screen made of PVC on feed trough / table
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
-
Opbouw zadelkamer
- Tack room in the intermediate gear/feed alley, outside+internal access
Bovendien
-
Lakken
- Selectie lakken
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Verdere uitrustingsopties
- Lettering 2-Horse-Heads left and right
- Accessoires
Chassis
-
Chassis
- Pilot's seat, with armrests, adjustable, rotatable
