Equipe S 7.20.18
Price on request

Characteristics

Number of animals
7 Horses
Family
Equipe family, 18000 kg
Number of sleeping places
3

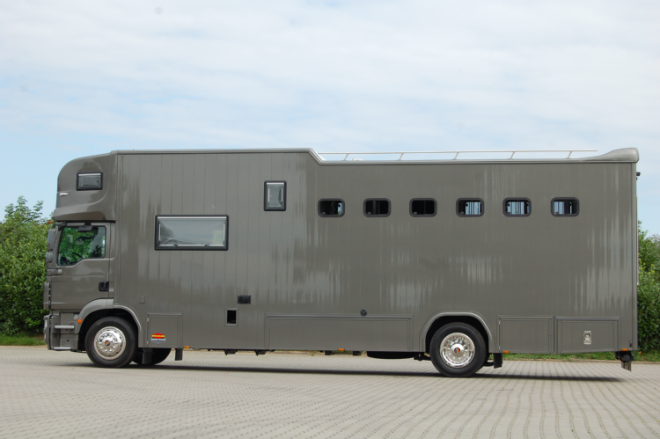

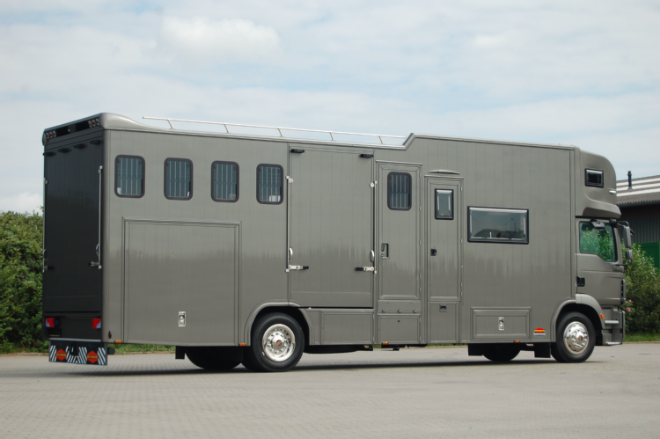

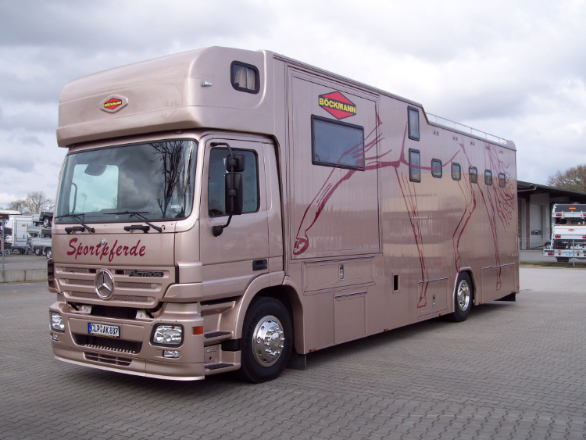

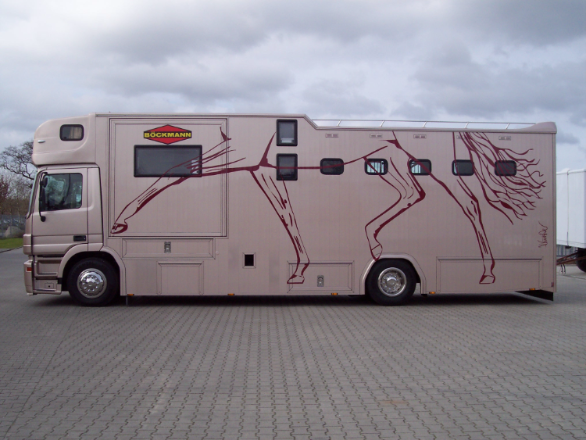

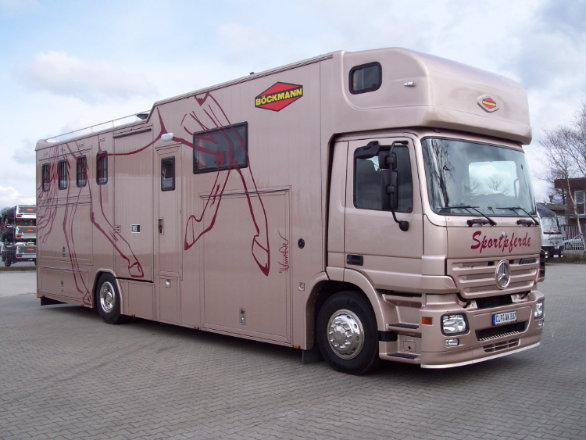

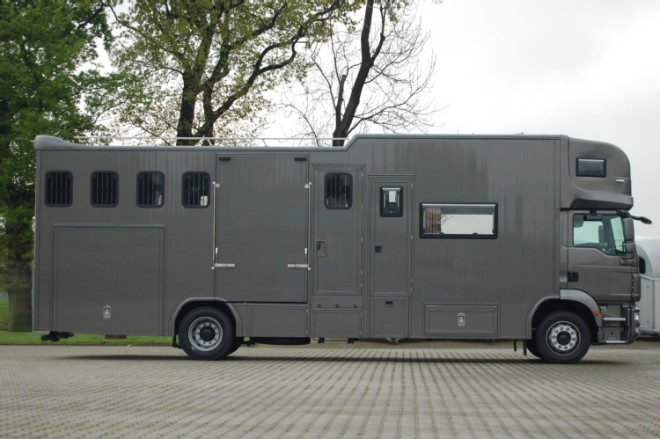

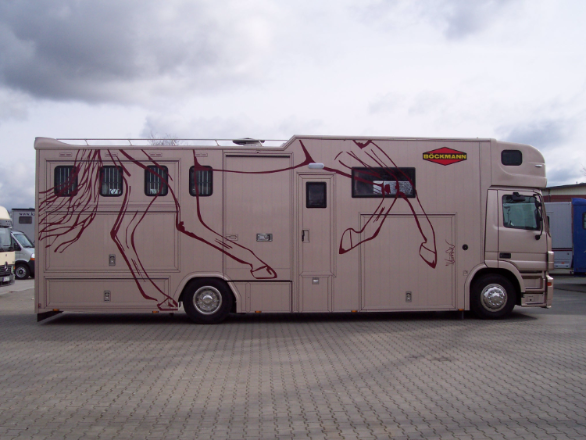

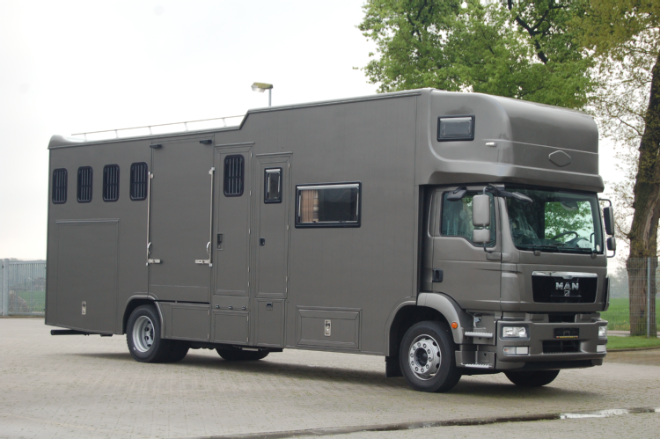

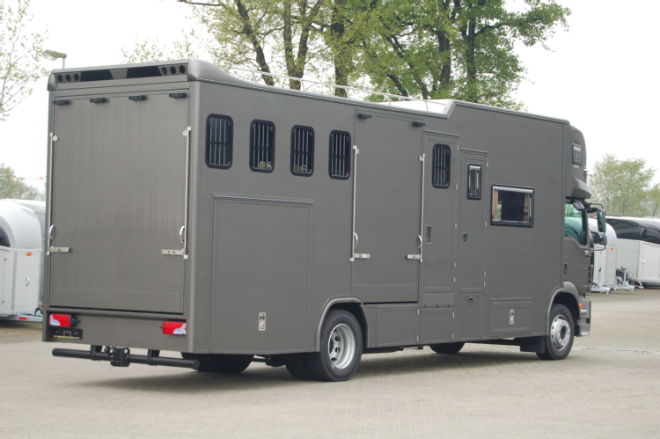

Makes every trip a pleasure: The Equipe S7 for up to seven horses in a slant position. Separately connected living quarters offers all passengers high standard of comfort and one or two additional sleeping berths in the topsleeper above the drivers cab.

Technical data

Base
Number of animals Number of animals
7 Horses

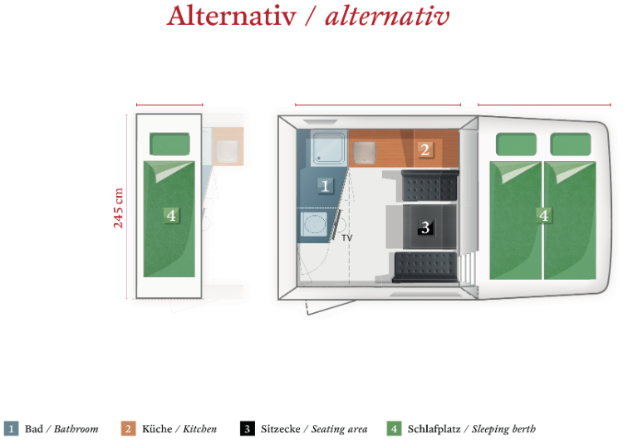

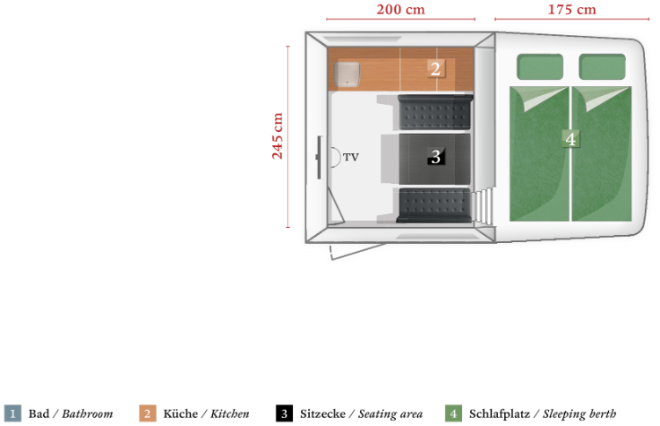

Apartments Apartments
Classic 200 cm
Bathroom Bathroom
Weight
Total weight Total weight
18000 kg
Payload Payload
5460 kg
External dimensions
Total length Total length
10410 mm
Total width Total width
2550 mm
Total height Total height
4000 mm
Internal dimensions
Interior length Interior length
6460 mm
Interior width Interior width
2440 mm
Interior height Interior height
2450 mm

Standard features

Body

Chassis

  • Chassis
    • 2x12V/170 Ah batteries
    • 175 kW / 238 hp
    • Radio with USB port
    • Mercedes-Benz Antos 18 L
    • Tank 290 l
    • AdBlue® tank 60 l
    • PowerShift 3 transmission
    • Front spring, 7.5 t, 1-leaf
    • Trailer coupling
    • trailer socket. 24-V, 15 pole
    • Front mirror, heatable
    • main mirror electrically adjustable, on drivers side
    • Wide angle mirror heatable
    • Extended central locking systems
    • Cruisecontrol
    • Multifunction steering wheel
    • Functional seat for passenger
    • Driver swing seat standard

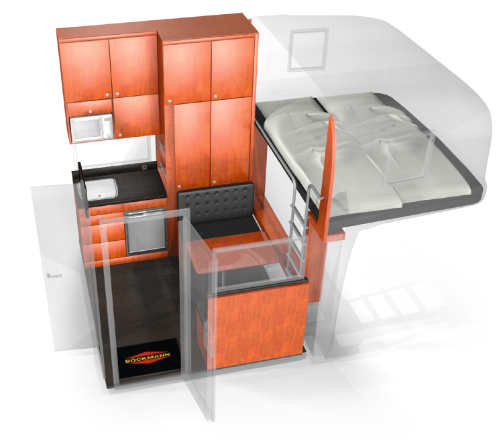

Internal Space

  • Living area
    • Lockable entrance door with 3-point closure
    • All furnitures in solid construction with safety catches
    • Topsleeper, insulated, lined with carpet, incl mattress and ladder
    • PVC Flooring
    • Walls panelled with laminated plastic sheeting
    • Extension ladder at the front door with latch
    • Separation to horse area by 25mm anodized.Aluminium Double web profile
    • Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
    • Two opposing benches for 4 persons with seat cushion
    • Lowerable table
    • Mirror
    • 4 coat hooks in the entrance area
    • Door mat with emblem Böckmann
    • Living room window above the bench, 900x600 mm, multifunctional,
  • Kitchen
  • Sleeping
  • Lighting
    • 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper

Accessories

Body

Chassis

  • Chassis
    • Selection battery power
    • 2x12V/220 Ah batteries
    • Selection motorisation
    • 260 hp / 354 KW
    • Selection radio
    • CD-radio, Bluetooth
    • Radio / navigation system, Bluetooth, comfort
    • Further equipment options
    • electric windows
    • Middle seat with 3-point seat belt
    • Fog light / LED-Daytime running light

Internal Space

Other

  • Electrical system
    • Selection electricity
    • Electrical basic package 2
    • Electrical basic package 3
    • Further equipment options
    • AGM auxiliary battery 200 AH
    • Hydraulic package
    • 3,5 - 4 KW generator (diesel generator)
  • Heating
    • Ceiling air conditioner
    • Combi boiler, diesel D6 6000 watts (hot water and heating)
    • Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
    • Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
  • Paintwork
    • Selection painting
    • Paint, complete in metallic-colors (except PVC parts of the chassis)
    • Paint, complete in RAL-Colors
    • Paint of plastic parts (cab), metallic-colors
    • Paint of plastic parts (cab), RAL colors
    • Further equipment options
    • Lettering "2-Horse-Heads" left and right
  • Water / wastewater
  • Accessories
