Characteristics
Number of animals
6 Horses
Model family
Equipe family, 15000 kg
Sleeping berth

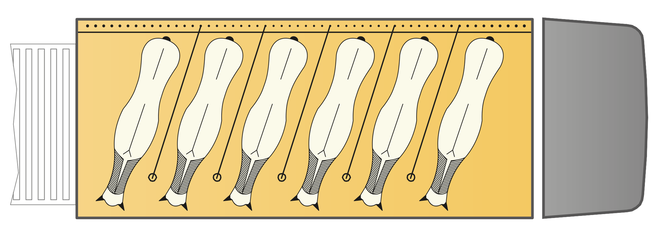

Makes every trip a pleasure: The Equipe S6 for up to six horses in a slant position. For a comfortable transport for horse and rider.
Technical data
Base
Number of animals
6 Horses
Living quater
Bathroom
Weight
Total weight
15000 kg
Payload
6330 kg
External dimensions
Total length
7460 mm
Total width
2550 mm
Total height
4000 mm
Internal dimensions
Interior length
5660 mm
Interior width
2440 mm
Interior height
2450 mm
Standard features
Body
-
Body general
- Insulated sandwich roof 50 mm thick (GRP)
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
-
Body Horse department
- Tethering rings
- slidable H-partitions (5pc. ) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Hay net hooks (1 per horse)
- Feeding trough for hanging, black plastic, with suspension (6pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (6x)
- Roof skylights (2)
- Lighting switchable from the driver's cab (6 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
Other
-
Electrical system
- CEE input socket (230 V) with fuse and charger
- battery guard
- AGM battery 200 AH
-
Paintwork
- Painture: white
Chassis
-
Chassis
- 2x12V/100 Ah batteries
- Front passenger seat, simple
- Driver swing seat standard
- Tank 120 l
- 177 hp /130 KW
- Mercedes-Benz Atego Neu 15 L
- Daytime Running Light
- front springs parabolic
- main mirror electrically adjustable, on drivers side
- Front mirror, heatable
- Cruisecontrol
- AdBlue® tank 25 l
- PowerShift 3 transmission
Accessories
Body
-
Body general
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box "big"
- Stowage box "small"
- Stowage box "medium"
- Stowage box extendable "big"
- Water hose with automatic roll up and electric pump
-
Body Horse department
- Selection tying-up options
- Airliner rail with 12 tying chains
- Selection partition
- Partition completely closed
- Further equipment options
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7"Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Tack room
- Laterally large Tack room (deep drawn) in front of 2 horses,
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Other
-
Paintwork
- Selection painting
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Further equipment options
- Lettering "2-Horse-Heads" left and right
- Accessories
Chassis
-
Chassis
- Selection battery power
- 2x12V/165 Ah batteries
- Selection front passenger seat
- Passenger suspension seat, comfort
- Selection driver's seat
- Driver's suspension seat, comfort
- Selection tank size
- Tank 180 l
- Engine power
- 200 kW / 272 hp
- 220 hp / 299 KW
- Further equipment options
- Trailer coupling
- trailer socket. 12-V, 13 pole
- electric windows
- Air Conditioning
- Extended central locking systems
- Middle seat with 3-point seat belt
- Halogen fog lamp
- CD-radio, Bluetooth
