Characteristics
Number of animals
6 Horses
Model family
Equipe family, 15000 kg
Sleeping berth
3

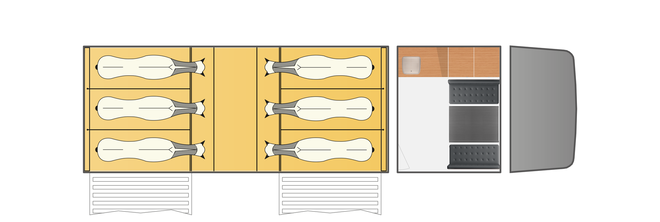

The compact Equipe L6 for six horses in lengthwise position has an impressive range of features. The large loading ramps at the side and the cosy living quarters offer horse and riders an equally high standard of comfort and a number of convenient features.
Technical data
Base
Number of animals
6 Horses
Living quater
Classic 200 cm
Bathroom
Weight
Total weight
15000 kg
Payload
4950 kg
External dimensions
Gesamtlänge
9550 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Internal dimensions
Interior length
5700 mm
Interior width
2440 mm
Interior height
2450 mm
Standard features
Body
-
Body general
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- 24mm high density plywood platform
- 2 Loading ramps with rubber covering with special step bars+side stop
- Feed alley (aluminum checker plate floor) with separate exterior
-
Body Horse department
- Tethering rings
- L-partitions (4x) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Feeding trough for hanging, black plastic, with suspension (6pc.)
- Hay net hooks (1 per horse)
- Aluminum partition profiling
- Roof skylights (2)
- Lighting switchable from the driver's cab (4 lights in horse area)
- Plastic kicking protection on left side
Chassis
-
Chassis
- 2x12V/100 Ah batteries
- Front passenger seat, simple
- Driver swing seat standard
- Tank 120 l
- 177 hp /130 KW
- Mercedes-Benz Atego Neu 15 L
- Cruisecontrol
- front springs parabolic
- AdBlue® tank 25 l
- PowerShift 3 transmission
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Daytime Running Light
Internal Space
-
Living area
- Extension ladder at the front door with latch
- All furnitures in solid construction with safety catches
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- PVC Flooring
- Walls panelled with laminated plastic sheeting
- Lockable entrance door with 3-point closure
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Lowerable table
- Mirror
- 4 coat hooks in the entrance area
- Door mat with emblem Böckmann
- Living room window above the bench, 900x600 mm, multifunctional,
-
Kitchen
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- Cabinet with drawers under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
-
Sleeping
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
-
Lighting
- 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper
Other
- Electrical system
-
Paintwork
- Painture: white
Accessories
Body
-
Body general
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box "big"
- Stowage box "small"
- Stowage box "medium"
- Stowage box extendable "big"
- Water hose with automatic roll up and electric pump
-
Body Horse department
- Selection tying-up options
- Airliner rail with 2 Anbindeketten,
- Selection partition
- Partition completely closed
- Further equipment options
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed table (slightly oblique plate) instead of feeding trough
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, for L-partition
- Excrement slide
- Calm lighting
- Sliding on feed trough /feed table (2 parts)
- Screen made of PVC on feed trough / table
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7"Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
-
Tack room
- Tack room in the intermediate gear/feed alley, outside+internal access
Chassis
-
Chassis
- Selection battery power
- 2x12V/165 Ah batteries
- Selection front passenger seat
- Passenger suspension seat, comfort
- Selection driver's seat
- Driver's suspension seat, comfort
- Selection tank size
- Tank 180 l
- Engine power
- 220 hp / 299 KW
- Further equipment options
- Trailer coupling
- trailer socket. 12-V, 13 pole
- electric windows
- Air Conditioning
- Extended central locking systems
- Middle seat with 3-point seat belt
- Halogen fog lamp
- CD-radio, Bluetooth
Internal Space
-
Living area
- Selection ladder to entrance
- Folding steps insted of extension ladder, with treads of alu
- Further equipment options
- Window (bullseye) in front door
- Accesss way to the cabin, covered with laminate
- TV flat screen 22"
- Blinds for living room window
- Blinds for living room window (370x500mm)
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Kitchen
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Bathroom
- complete bathroom
- Mobile toilet, incl elec. flush, fresh- and waste water tank
-
Lighting
- LED ambient lighting
Other
-
Electrical system
- Selection electricity
- Electrical basic package 2
- Electrical basic package 3
- Further equipment options
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
-
Heating
- Ceiling air conditioner
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Paintwork
- Selection painting
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Further equipment options
- Lettering "2-Horse-Heads" left and right
-
Water / wastewater
- Waste water tank 200 l
- Waste water tank 300 l
- Fresh water tank 200 l
- Fresh water tank 300 l
- Accessories
