Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Equipe L 2.35.15
Price on request

Characteristics

Number of animals
2 Horses
Family
Equipe family, 15000 kg
Number of sleeping places
5

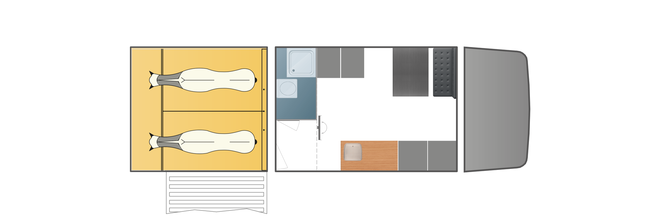

The compact Equipe L2 for up to two horses in lengthwise position has an impressive range of features. The easily accessible tack room at the rear, the large loading ramp at the side and the cosy living quarters offer horse and riders an equally high standard of comfort and a number of convenient features.

Technical data

Base
Number of animals Number of animals
2 Horses
Apartments Apartments
Royal 350 cm
Bathroom Bathroom
Small bathroom with toilet
Weight
Total weight Total weight
15000 kg
Payload Payload
5700 kg
External dimensions
Total length Total length
8125 mm
Total width Total width
2550 mm
Total height Total height
4000 mm
Internal dimensions
Interior length Interior length
2775 mm
Interior width Interior width
2440 mm
Interior height Interior height
2450 mm

Standard features

Body

Chassis

  • Chassis
    • 2x12V/100 Ah batteries
    • Front passenger seat, simple
    • Driver swing seat standard
    • Tank 120 l
    • 177 hp /130 KW
    • Mercedes-Benz Atego Neu 15 L
    • Cruisecontrol
    • front springs parabolic
    • AdBlue® tank 25 l
    • PowerShift 3 transmission
    • Front mirror, heatable
    • main mirror electrically adjustable, on drivers side
    • Daytime Running Light

Internal Space

  • Living area
    • Extension ladder at the front door with latch
    • All furnitures in solid construction with safety catches
    • Topsleeper, insulated, lined with carpet, incl mattress and ladder
    • PVC flooring
    • Walls panelled with laminated plastic sheeting
    • Lockable entrance door with 3-point closure
    • Separation to horse area by 25mm anodized.Aluminium Double web profile
    • Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
    • Two opposing benches for 4 persons with seat cushion
    • Lowerable table
    • Mirror
    • 4 coat hooks in the entrance area
    • Door mat with emblem Böckmann
    • Living room window above the bench, 900x600 mm, multifunctional,
  • Kitchen
    • Kitchenette with work surface
    • 230 V sockets (2x) above kitchenette
    • cabinet with drawer and towel rail under the work surface
    • Living room window above kitchen, multi-functional,
    • Ppotlights above kitchenette
    • Sink with tab
  • Bathroom
  • Sleeping
  • Lighting
    • 6 halogen spotlights in the ceiling, 1 radiator (reading lamp) in

Accessories

Body

Chassis

  • Chassis
    • Selection battery power
    • 2x12V/165 Ah batteries
    • Selection front passenger seat
    • Passenger suspension seat, comfort
    • Selection driver's seat
    • Driver's suspension seat, comfort
    • Selection tank size
    • Tank 180 l
    • Engine power
    • 220 hp / 299 KW
    • Further equipment options
    • Trailer coupling
    • trailer socket. 12-V, 13 pole
    • electric windows
    • Air Conditioning
    • Extended central locking systems
    • Middle seat with 3-point seat belt
    • Halogen fog lamp
    • CD-radio, Bluetooth

Internal Space

Other

  • Electrical system
    • Selection electricity
    • Electrical basic package 2
    • Electrical basic package 3
    • Further equipment options
    • AGM auxiliary battery 200 AH
    • Hydraulic package
    • 3,5 - 4 KW generator (diesel generator)
    • 4800W generator (diesel generator)
  • Heating
  • Paintwork
    • Selection painting
    • Paint, complete in metallic-colors (except PVC parts of the chassis)
    • Paint, complete in RAL-Colors
    • Paint of plastic parts (cab), metallic-colors
    • Paint of plastic parts (cab), RAL colors
    • Further equipment options
    • Lettering "2-Horse-Heads" left and right
  • Water / wastewater
    • Selection waste water tank
    • Waste tank 300 l (Surcharge)
    • Selection fresh water tank
    • Fresh water tank 300 l (Surcharge)
    • Further equipment options
    • Warm water, 15 l
  • Accessories
