Characteristics
Number of animals
8 Horses
Model family
Equipe family, 0 kg
Sleeping berth
3
Some competitions are already won on the way to the event: The Big Equipe S with a large horse compartment for up to eight horses, spacious living quarters and XXL drivers cab is really impressive and will also spark your enthusiasm. Unsurpassed space and comfort? - what more can you ask?
Technical data
Base
Number of animals
8 Horses
Living quater
Deluxe 250 cm
Bathroom
Small bathroom
Weight
Total weight
0 kg
Payload
10635 kg
External dimensions
Gesamtlänge
12260 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Internal dimensions
Interior length
7260 mm
Interior width
2440 mm
Interior height
2450 mm
Standard features
Body
-
Body general
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
-

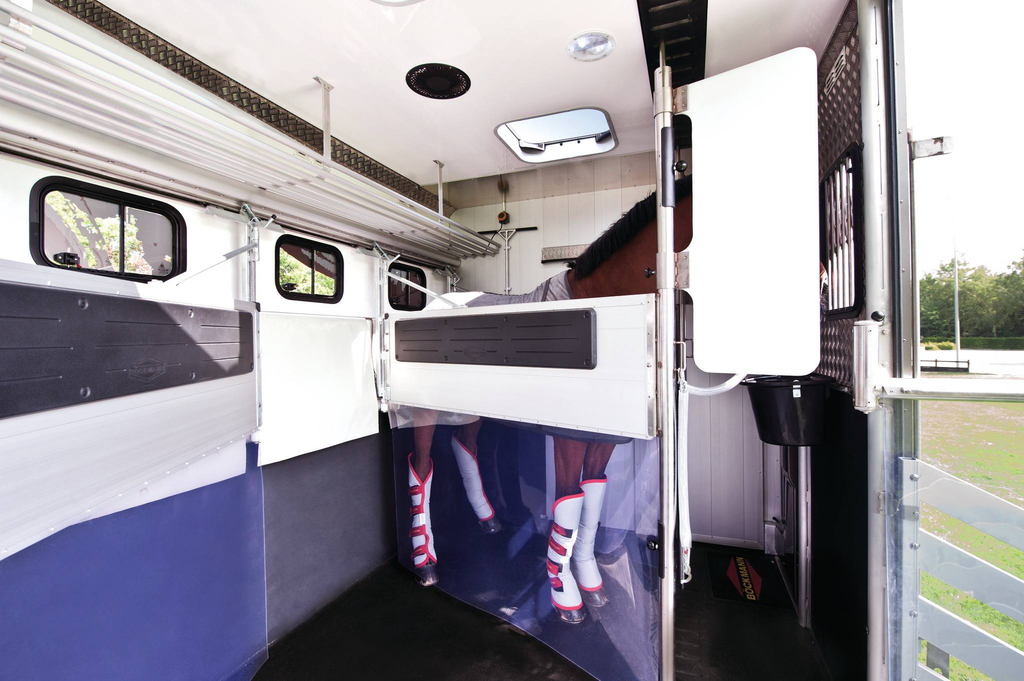

Body Horse department
- Tethering rings
- slidable H-partitions (7pc. ) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Hay net hooks (1 per horse)
- Feeding trough for hanging, black plastic, with suspension (8pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (8x)
- Roof skylights (4)
- Lighting switchable from the driver's cab (8 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
Chassis
-
Chassis
- Driver seat standard
- Mercedes-Benz Actros Neu 25 L
- Tank 630 l
- 240 kW / 326 hp
- AdBlue® tank 60 l
- PowerShift 3 transmission
- Cruisecontrol
- Front spring, 7.5 t, 2-leaf
- Trailer coupling
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Wide angle mirror heatable
- Extended central locking systems
- electric windows
- Multifunction steering wheel
- Functional seat for passenger
- Air Conditioning
- Radio with USB port
Internal Space
-
Living area
- Extension ladder at the front door with latch
- Door mat with emblem Böckmann
- All furnitures in solid construction with safety catches
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- PVC Flooring
- Walls panelled with laminated plastic sheeting
- Lockable entrance door with 3-point closure
- Mirror
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Lowerable table
- 4 coat hooks in the entrance area
- Living room window above the bench, 900x600 mm, multifunctional,
-
Kitchen
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- cabinet with drawer and towel rail under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
- Sink with tab
- Bathroom
-
Sleeping
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
-
Lighting
- 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper
Other
- Electrical system
-
Paintwork
- Painture: white
-
Water / wastewater
- Waste water tank 200 l
- Fresh water tank 200 l
Accessories
Body
-
Body general
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box "big"
- Stowage box "small"
- Stowage box "medium"
- Stowage box extendable "big"
- Water hose with automatic roll up and electric pump
-
Body Horse department
- Selection tying-up options
- Airliner rail with 16 tying chains
- Selection partition
- Partition completely closed
- Further equipment options
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7"Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Tack room
- Laterally large Tack room (deep drawn) in front of 2 horses,
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Chassis
-
Chassis
- Pilot's seat, with armrests, adjustable, rotatable
Internal Space
-
Living area
- Selection ladder to entrance
- Folding steps insted of extension ladder, with treads of alu
- Further equipment options
- Window (bullseye) in front door
- Accesss way to the cabin, covered with laminate
- TV flat screen 22"
- Blinds for living room window
- Blinds for living room window (370x500mm)
- Groom apartment 1000mm (minus space for one horse),
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Kitchen
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Bathroom
- Mobile toilet, incl elec. flush, fresh- and waste water tank
-
Lighting
- LED ambient lighting
Other
-
Electrical system
- Selection electricity
- Electrical basic package 2
- Electrical basic package 3
- Further equipment options
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
-
Heating
- Ceiling air conditioner
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Paintwork
- Selection painting
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Further equipment options
- Lettering "2-Horse-Heads" left and right
-
Water / wastewater
- Selection waste water tank
- Waste tank 300 l (Surcharge)
- Selection fresh water tank
- Fresh water tank 300 l (Surcharge)
- Further equipment options
- Warm water, 15 l
- Accessories
