Compact L Plus Basic Tour

Compact L Plus Basic Tour
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Compact L Plus Basic Tour
Price on request

Characteristics

Number of animals
2 Horses
Family
Compact family, 4500 kg
Number of sleeping places

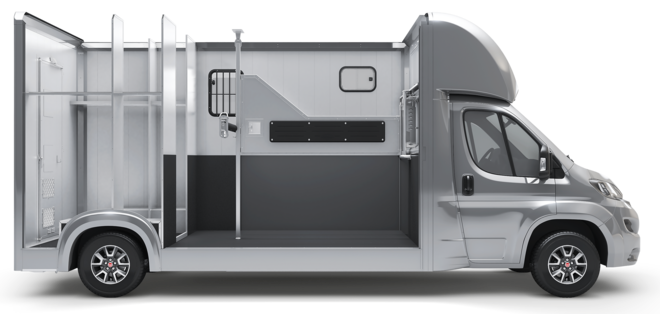

The horse compartment of the Compact L Plus Basic Tour is equipped with a variable floor to ceiling partition wall, a three-door system and a passage to the tack room. The side padding on the aluminium partition wall and side wall provides the requisite safety. The three-door system enables flexible use of the horse compartment. A living area of 750 mm which can also offer space for additional passengers is located between the driver's cab and the horse compartment. The chassis of the L Plus variant is 630 mm longer than the basic model and therefore offers more space for individual designs.

Technical data

Base
Number of animals Number of animals
2 Horses
Apartments Apartments
Bathroom Bathroom
Weight
Total weight Total weight
4500 kg
Payload Payload
1630 kg
External dimensions
Total length Total length
6800 mm
Total width Total width
2080 mm
Total height Total height
3130 mm
Internal dimensions
Interior length Interior length
4230 mm
Interior width Interior width
2040 mm
Interior height Interior height
2400 mm

Standard features

Body

Chassis

Internal Space

Other

  • Paintwork
    • Selection decor front and back
      • Decal "Horsetrucks by Böckmann" on both sides and behind (anthracite)
    • Paintwork
    • Decors
      • Decal "Horses" in front and behind (anthracite)
  • Accessories

Accessories

Body

  • Body general
    • Equipement above loading ramp
    • SES
      • Window for exterior door,370x500mm, erectable, incl.rollo+mosquito net
    • Front door, lockable
      • Front door, lockable
    • Options for living area left wall
      • Window for living room (left)
    • Further equipment options
      • Tie bar, folding,
      • Tethering rings
      • Additional Roof skylight, big version
      • Lock for loading ramp
      • Surrounding lighting
      • Video camera system (wired) for horse trailer
      • Video socket
  • Body Horse department
    • Selection barrier in front of loading ramp
      • Stop board before loading ramp instead cordon, pivotable
    • partition (standard)
      • Movable partition, aluminium, with transparent PVC curtain
    • Selection horse compartment/tack room
      • Door between tack room / horse area
    • Further equipment options
  • Tack room
    • Selection walk-in tack room door
      • Lockable double-wing door in the rear to the saddle room
    • Further equipment options
      • Step below the door
      • Bag net additional
      • folding seat
      • Clothes rail in the saddle room
      • Shelf on the left side additionally
      • Shelf on the right side additionally
      • Shelf-system with storage boxes in tack room
      • Saddle rack additional
      • Snaffle hooks, additional

Chassis

  • Chassis
    • Selection front passenger seat
      • Passenger double seat with folding table in medium backrest
      • Passenger Seat rotatable
    • Selection spare wheel or set
      • Spare wheel (full-size) incl. spare wheel holder
    • Selectrion gears
      • 9-gear-automatic transmission
    • Selection motorisation
      • 180 HP Multijet (131 KW), diesel engine, 4 cylinders
    • Selection seat covers
      • Seat covers artificial leather (driver and double seat bench)
      • Seat covers artificial leather (driver and single passenger seat)
    • Selection lane departure warning system
      • Lane-departure warning and traffic sign recognition
    • Selection daytime running lights
      • Daytime Running Light LED
    • Selection tank size
      • Fuel tank 120 L
    • Speed limiter
      • Elimination overspeed
    • Smart tachograph
      • ommission smart tachograph
    • Summer tyres on steel rim 16 inch
      • All-Season tires
      • Alloy rim 16 "Diamond"
      • Winter tires
    • Further equipment options
      • 7" intotainmentsystem with touchscreen + DAB
      • 7 ?infotainment system with touchscreen + NAV + DAB
      • Mirrors for vehicle width 2.35 m
      • Autonomous heater (Webasto)
      • Battery (110 Ah)
      • Cruise control
      • Driver's seat rotatable
      • Floor mat (fabric)
      • Floor mat (rubber)
      • Door mat (cab)
      • Manual air conditioning with pollen filter,outside temperature display
      • Automatic single zone air conditioning with pollen filters
      • Leather covers double row of seats
      • Single row of seats in leather
      • Leather covers with heated seats (single row of seats)
      • Leather covers with seat heating, double row of seats
      • Front fog lamps
      • Full wheel covers
      • Rain and light sensor
      • Light bordering, black
      • Black grill (piano coating)
      • Seat heating, double seat row
      • Seat heating, single seat row
      • Seat heating for the driver
      • Fixed trailer coupling (trailer ball)
      • Traction+ with downhill assistant
      • USB charging port
      • Reinforced alternator 200 Ah
      • Additional heater under the driver's seat in the direction of travel

Internal Space

  • Living area
    • Selection refrigerator
      • Refrigerator
    • Living area
      • Apartment 1: jacket cabinet, 2 drawers, folding table,
      • Apartment 2: jacket cabinet, open compartment,
      • Apartment 3: jacket cabinet, open compartment, fixed bench
    • Further equipment options
      • Door mat with emblem Böckmann
      • Mirror 900x300mm
      • Diesel auxiliary heating, 2000 watts
      • TV SAT equipment, fully automatic
      • TV with DVBT antenna
      • Blackout curtain front and side windows
    • Equipement of seats (for flat selection)
      • Seat with artificial leather (Apartmante 1)
      • Seat with artificial leather (Apartmante 2)
      • Seat with artificial leather (Apartmante 3)
      • Seat with leather cover (Apartmante 1)
      • Seat with leather cover (Apartmante 2)
      • Seat with leather cover (Apartmante 3)
  • Sleeping
    • Mattress in alcove (incl. ladder)

Other

  • Electrical system
    • battery guard
    • Socket 12V in saddle compartment
    • Socket 12V in living quarter
    • Socket 230V in saddle compartment
    • Socket 230V in living quarter
  • Paintwork
    • Selection decor front and back
      • Decal "Horsetrucks by Böckmann" on both sides and behind (silver)
    • Paintwork
      • Metallic painting body
      • Metallic painting body / cab
      • Metallic painting body / cab / plastic parts
      • RAL paintwork body
      • RAL paintwork body / cab
      • RAL paintwork body / cab / plastic parts
    • Decors
      • Decal "Horses" in front and behind (silver)
    • Further equipment options
      • Decors on the truck as desired / effort
      • Paint exterior mirrors
  • Accessories
