Characteristics
Number of animals
2 Horses
Model family
Compact family, 4250 kg
Sleeping berth

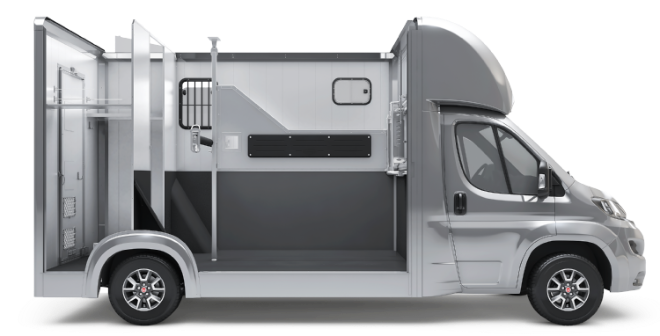

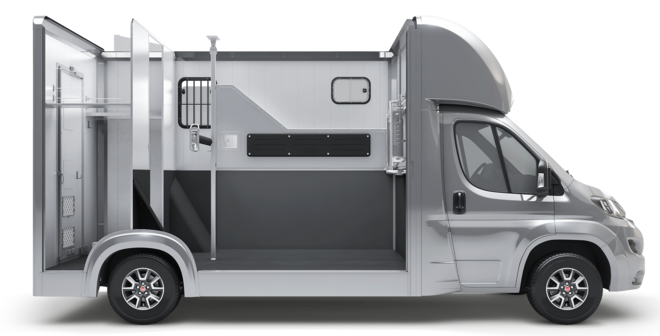

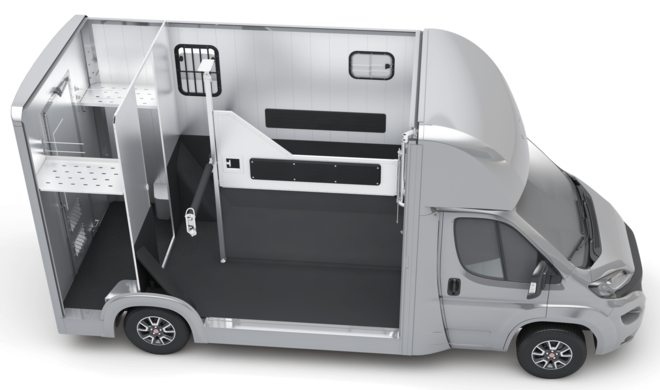

The horse compartment of the Compact Basic is equipped with a fixed partition wall and a passage to the tack room. Loading the horse is simple thanks to a pivoting and optionally sliding partition wall. The passage from the tack room to the horse compartment can be closed with an optional lockable door.
Technical data
Base
Number of animals
2 Horses
Living quater
Bathroom
Weight
Total weight
4250 kg
Payload
1560 kg
External dimensions
Gesamtlänge
6170 mm
Gesamtbreite
2114 mm
Gesamthöhe
3130 mm
Internal dimensions
Interior length
3600 mm
Interior width
2040 mm
Interior height
2400 mm
Standard features
Body
-
Body general
- Flap above loading ramp
- Roller blind (alcove closure)
- Structure made of 18 mm aluminum profiles
- Roof spoiler on tailgate integrated brake and clearance lights (LED)
- Roof ventilator 12 V., switchable from the drivers cab
- Alcove
- Roof skylight, big version, incl. closing support
- Horizontal sliding window in left side panel 450x300mm
- Windows (2x) vertically sliding 450x600mm with integral window grille
- Aluminum corner profiles, rounded
- 1 hook for a jacket at the back wall of the cab
- Loading ramp (side) with rubber with special step bars and side stop
-
Body Horse department
- Barrier belt in front of the loading flap
- Tethering rings (4 x )
- Feeding troughs, plastic (2x) for hanging
- Rubber floor, glued and sealed
- hay net hooks ( 2x)
- Kick protection in the back of the horse area
- Side padding for partition wall and left side wall
- LED-Light in horse area

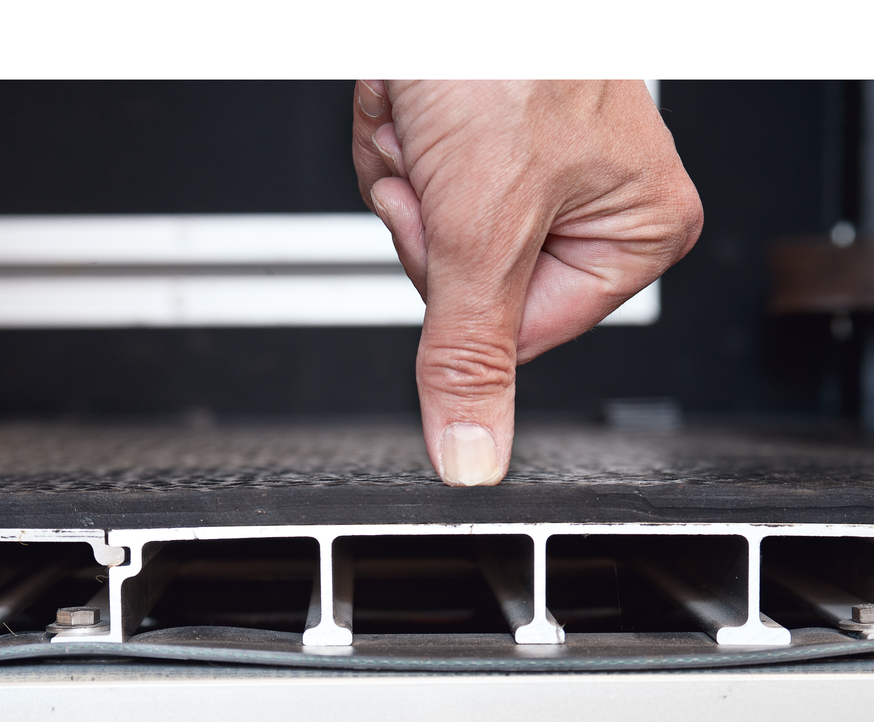

- APP Floor (additional on steel sheet floor)
- 2 breast bars with MSS
- Kick protection at left side
- Partition wall alum. (L) with PVC panel and integrated head section
-
Tack room
- Lockable outside door
- stool for access
- LED-Light in tack room
- Saddle-rack ( 2 x )
- Tack room, about 910x2000 mm
- Shelves left and right
- Forced ventilation in the door
- Mirror at door (2x)
- Snaffle hooks (9x )
- bootjack
Other
-
Paintwork
- Decal "Horsetrucks by Böckmann" on both sides and behind (anthracite)
- Paint: RAL white
- Decal "Horses" in front and behind (anthracite)
- Accessories
Chassis
-
Chassis
- Co driver seat adjustable height and slope with armrest
- Fix & Go Kit (instead of spare wheel)
- Manual gearbox
- 160 HP Multijet (118 KW), diesel engine, 4 cylinders
- Seat Covers Leatherette grey
- lane-departure warning
- Daytime Running Light
- Fuel tank 90 L
- overspeed 90 km/h
- Euro 6d-TEMP
- Central locking with remote control
- Mechanical Break Assistant
- Cup holder
- Stowage compartment under the roof
- Power windows
- Driver air bag
- Sensor for oil level monitoring
- Electronic engine imobiliser
- Elimination of cabin back wall
- ESC incl. overturn prevention
- grey bumper of PVC
- Digital tachograph without calibration
- Prewire for bodybuilder incl. socket at the b-pillar
- Fiat Transporter Ducato Maxi 40
- power heated exterior mirrors
- Armrest and lumbar support for driver seat
- AM/FM and DAB antenna in right-hand wing mirror
- Flat-bottom chassis
- smart tachograph
- Summer tires on 16" steel rims
Accessories
Body
-
Body general
- Equipement above loading ramp
- Lift-up flap with window above loading ramp
- Double-wing door above loading ramp instead of flap
- Selection Alkoven partition
- Flap, aluminum anodized (alcove closure)
- Further equipment options
- Tie bar, folding,
- Tethering rings
- Additional Roof skylight, big version
- Lock for loading ramp
- Surrounding lighting
- Video camera system (wired) for horse trailer
- Video socket
-
Body Horse department
- Selection barrier in front of loading ramp
- Stop board before loading ramp instead cordon, pivotable
- Selection partition
- Movable partition, aluminium, with transparent PVC curtain
- Selection horse compartment/tack room
- Door between tack room / horse area
- Further equipment options
- Air-liner rail mounted both sides
- Anchoring rope with panic hook (set)
- Kickpad
- Kickpads (pair)
- Air conditioning in the horse compartment
- Head partition
- Excrement slide
- LED-working illumination for the vicinity of the loading flap.
- LED-Light in horse area, additional
- Calming illumination (blue)
- Kick protection between partition hangers
- Temperature control (according to regulation EG 1/2005)
- Animal transport report
- Wear mat
- Video monitoring incl. reversing camera
-
Tack room
- Selection walk-in tack room door
- Lockable double-wing door in the rear to the saddle room
- Further equipment options
- Step below the door
- Bag net additional
- folding seat
- Clothes rail in the saddle room
- Shelf on the left side additionally
- Shelf on the right side additionally
- Shelf-system with storage boxes in tack room
- Saddle rack additional
- Anodized aluminum cabinet, ceiling height in high tack room
- Snaffle hooks, additional
Other
-
Electrical system
- battery guard
- Double socket 230V in saddle compartment
- Socket 12V in saddle compartment
-
Paintwork
- Selection decor front and back
- Decal "Horsetrucks by Böckmann" on both sides and behind (gold)
- Decal "Horsetrucks by Böckmann" on both sides and behind (silver)
- Selection painting
- Metallic painting body
- Metallic painting body / cab
- Metallic painting body / cab / plastic parts
- RAL paintwork body
- RAL paintwork body / cab
- RAL paintwork body / cab / plastic parts
- Further equipment options
- Decors on the truck as desired / effort
- Paint exterior mirrors
- Selection decor front and back
- Decal "Horses" in front and behind (gold)
- Decal "Horses" in front and behind (silver)
-
Accessories
- Fire extinguisher
- Saddle-cabinet L
- Saddle-cabinet XL
- First-aid box
- Warning triangle
- Warning lamp
- Safety vest
Chassis
-
Chassis
- Selection front passenger seat
- Passenger double seat with folding table in medium backrest
- Selection spare wheel or set
- Spare wheel (full-size) incl. spare wheel holder
- Selectrion gears
- 9-gear-automatic transmission
- Selection motorisation
- 180 HP Multijet (131 KW), diesel engine, 4 cylinders
- Selection seat covers
- Seat covers artificial leather (driver and double seat bench)
- Seat covers artificial leather (driver and single passenger seat)
- Selection lane departure warning system
- Lane-departure warning and traffic sign recognition
- Selection daytime running lights
- Daytime Running Light LED
- Selection tank size
- Fuel tank 120 L
- Speed limiter
- Elimination overspeed
- Smart tachograph
- ommission smart tachograph
- Summer tyres on steel rim 16 inch
- All-Season tires
- Alloy rim 16 "Diamond"
- Winter tires
- Further equipment options
- 7" intotainmentsystem with touchscreen + DAB
- 7 ?infotainment system with touchscreen + NAV + DAB
- Mirrors for vehicle width 2.35 m
- Autonomous heater (Webasto)
- Battery (110 Ah)
- Cruise control
- Floor mat (fabric)
- Floor mat (rubber)
- Door mat (cab)
- Manual air conditioning with pollen filter,outside temperature display
- Automatic single zone air conditioning with pollen filters
- Leather covers double row of seats
- Single row of seats in leather
- Leather covers with heated seats (single row of seats)
- Leather covers with seat heating, double row of seats
- Front fog lamps
- Full wheel covers
- Rain and light sensor
- Light bordering, black
- Black grill (piano coating)
- Seat heating, double seat row
- Seat heating, single seat row
- Seat heating for the driver
- Fixed trailer coupling (trailer ball)
- Traction+ with downhill assistant
- USB charging port
- Reinforced alternator 200 Ah
- Additional heater under the driver's seat in the direction of travel
- Selection total weight
- Weight reduction to 3,5 to
- Upweighted total weight to 4.5 t
