Characteristics
Model family
vehicle transporters and boat trailers
Total weight
2700 kg
Number of axles
2
The low-bed universal transporter is the ideal professional vehicle for daily use. It stands out from the crowd with its solid workmanship and versatility. With a total weight of 2.7 tonnes it is suitable for a wide range of applications as a vehicle transporter - even for 3-wheel vehicles. If you don't need to transport any vehicle, this range of models is also an excellent choice for transporting piece goods and bulky items.
Technical data
Base
Jockey wheel
Automatic
Tires
14.0 Zoll
Loading height
530 mm
Overrun brake
Weight
Total weight
2700 kg
Payload
2033 kg
Internal dimensions
Interior length
4030 mm
Interior width
1900 mm
Interior height
150 mm
Standard features
Body
-
Side walls
- front wall foldable

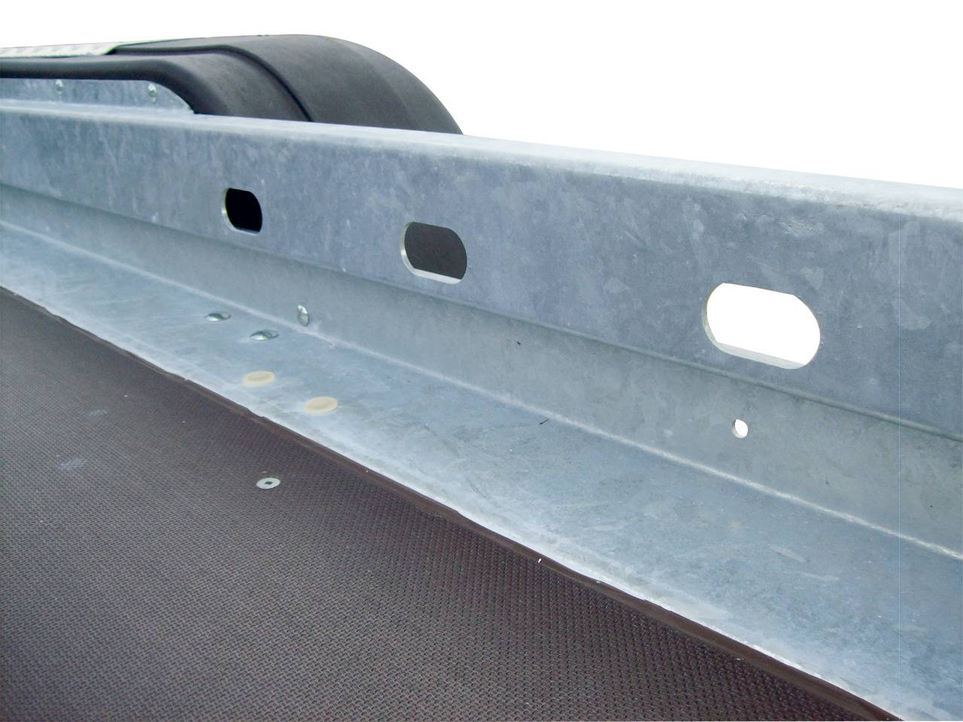

- side walls with integrated railing
- Attachments
-
Loading
- Without cable winch
- Without loading rails

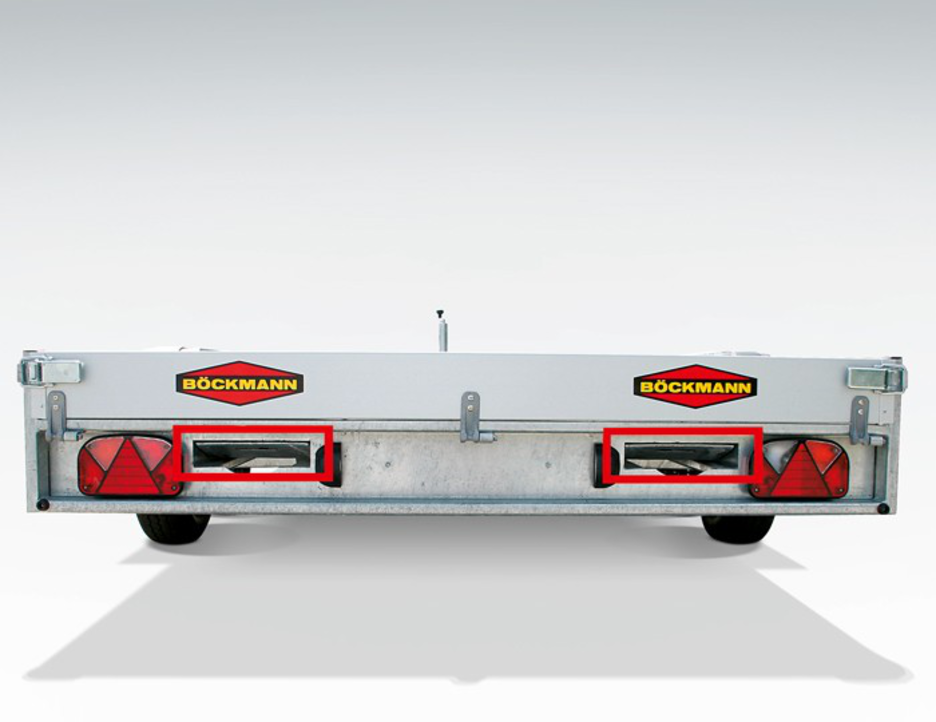

- mounting for the steel rails
Chassis
-
Chassis
- axle with rubber suspension system, free of service

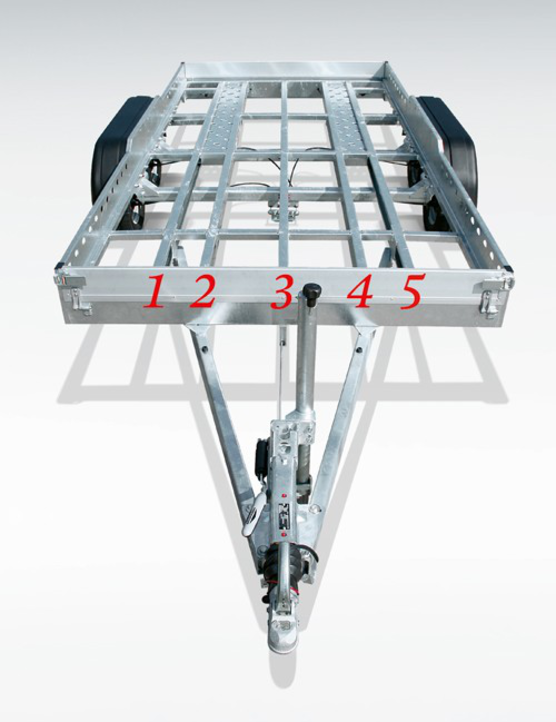

- 5 solid steel-longitudinal supports

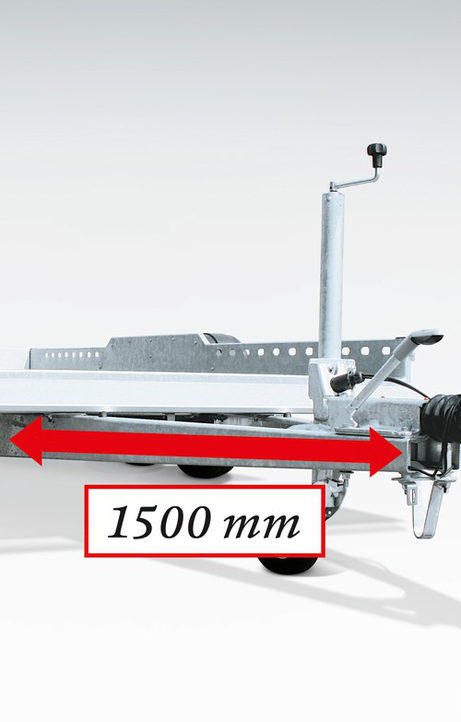

- V-tow bar with 1500 mm length
- Jockey wheel
Accessories
Body
- Attachments
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Loading
- Selection cable winch

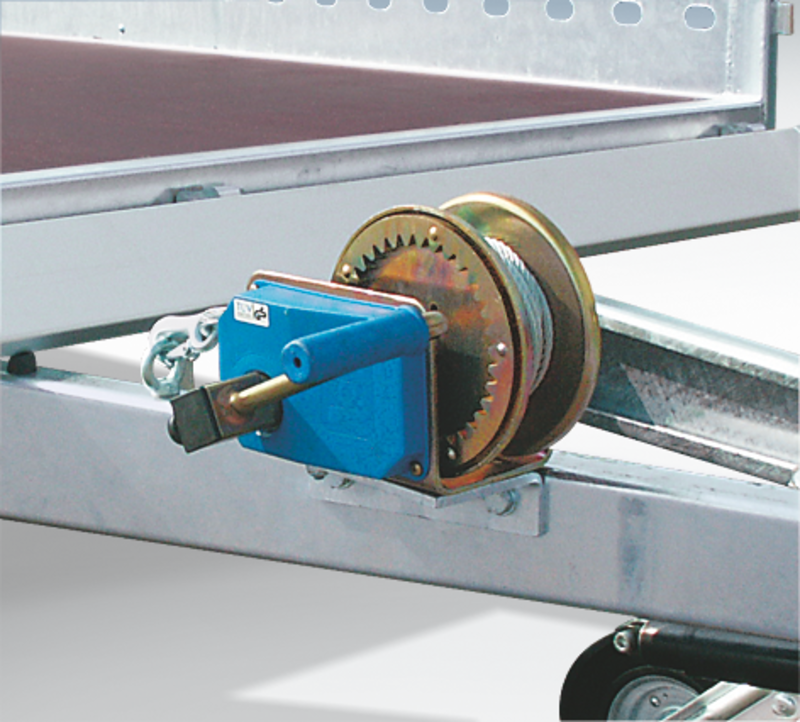

- cable winch with winch bracket
- Selection retractable drive-on rails

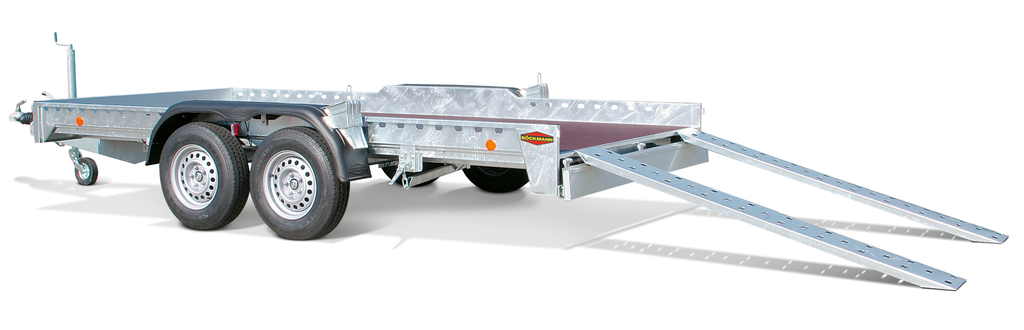

- under-slung steel drive-on rails, clamping device, load.cap.2,4t/pair
- Selection loading
- bicycle support rail
- motorcycle drive-on rail fixed to sidewall (inside)
- motorcycle support rail, fixed to bottom of trailer
Chassis
-
Chassis
- wheel shock absorbers (4 pcs)
