Characteristics
Model family
vehicle transporters and boat trailers
Total weight
1000 kg
Number of axles
1

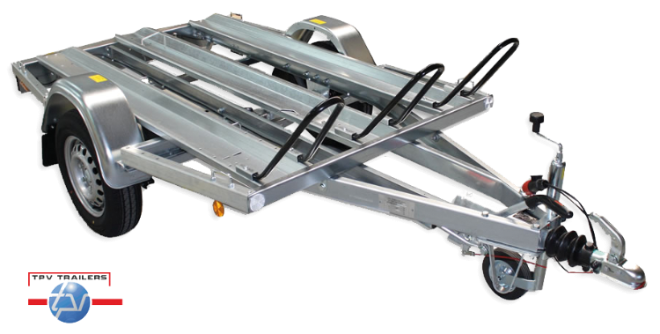

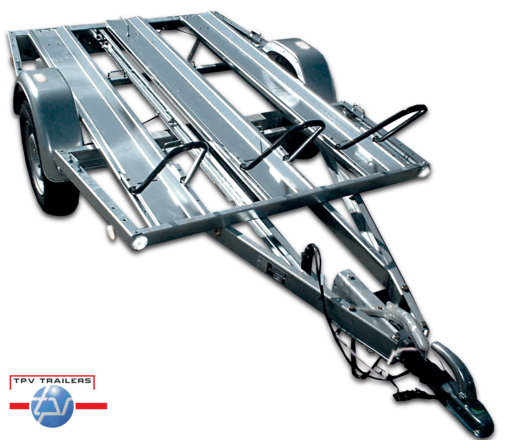

The TPV motorcycle transporter MB2 - quality and service guaranteed
Technical data
Base
Jockey wheel
Longitudinal members
4
Tires
13.0 Zoll
Loading height
530 mm
Overrun brake
Weight
Total weight
1000 kg
Payload
794 kg
External dimensions
Total length
3065 mm
Total width
1520 mm
Total height
970 mm
Internal dimensions
Interior length
1970 mm
Interior width
1140 mm
Interior height
0 mm
Standard features
Body
-
Attachments
- steel sheet fender
- plug, 13 pin
-
Loading
- ideal for transporting 1-2 motorcycles
- 3 motorcycle stand rails with adjustable bracket, 1 drive-on rail
-
Lashings
- 8 lashing shackles
Chassis
-
Chassis
- rubber spring axle with independent suspension
- 4 side members
-
Jockey wheel
- normal support wheel
Accessories
Chassis
-
Chassis
- wheel shock absorber
