AT 4019/27 (13)

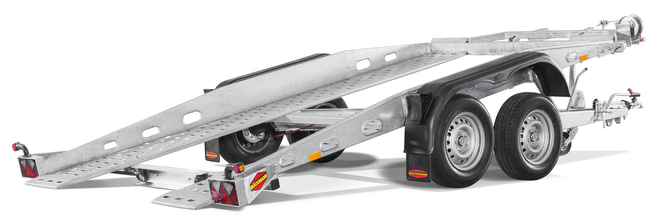

Böckmann Autotransporter AT 4019-27
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
AT 4019/27 (13)
Price on request

Characteristics

Model family
vehicle transporters and boat trailers
Total weight
2700 kg
Number of axles
2
Proven thousandfold: The legendary and compact vehicle transporter has proven its worth many times over in daily applications and shown that it is the right vehicle transporter for professionals. With its robust design, the unique self-supporting and galvanised special profile construction with a safety lifting system for fast and convenient loading as well as an unsurpassed cost-benefit ratio you will appreciate the advantages of this vehicle transporter for many years to come. Compare it yourself!

The Böckmann added valuesAT-models

Böckmann Fahrzeugtransporter Mehrwert  Auffahrwinkel von 13°
Approach angle of 13°

for easy loading and unloading.

Böckmann Fahrzeugtransporter Mehrwert Oberbrücke
Upper bridge

High load capacity due to hot-dip galvanised, solid upper bridge with cable winch and winch block as well as welded running rails.

Böckmann Fahrzeugtransporter Mehrwert hydraulisches Hebesystem
Hydraulic lever system with hand pump

allows for easy tilting of the trailer. Thanks to the EasyHold function, unplanned lowering of the upper bridge is prevented: The upper bridge remains fixed even after lowering the vehicle until the valve is released.

Well thought out construction

Innovative details

Practical accessories

Technical data

Base
Jockey wheel
Automatic
Tires
Böckmann Icon für die Baumaschinentransporter.
14.0 Zoll
Loading height
Böckmann Icon für die Fahrzeugtransporter
480 mm
Overrun brake
Weight
Total weight
Böckmann Icon für die Fahrzeugtransporter
2700 kg
Payload
Böckmann Icon für die Fahrzeugtransporter
2080 kg
External dimensions
Total length
Böckmann Icon für die Fahrzeugtransporter
5940 mm
Total width
Böckmann Icon für die Fahrzeugtransporter
2455 mm
Total height
Böckmann Icon für die Fahrzeugtransporter
1090 mm
Internal dimensions
Interior length
4000 mm
Interior width
1940 mm
Interior height
0 mm

Standard features

Chassis

  • Chassis
    • V-tow hitch
    • axle with rubber suspension
    • self-supporting galvanized profile building method
