AH 4320/35
Price on request

Characteristics

Model family
vehicle transporters and boat trailers
Total weight
3500 kg
Number of axles
2

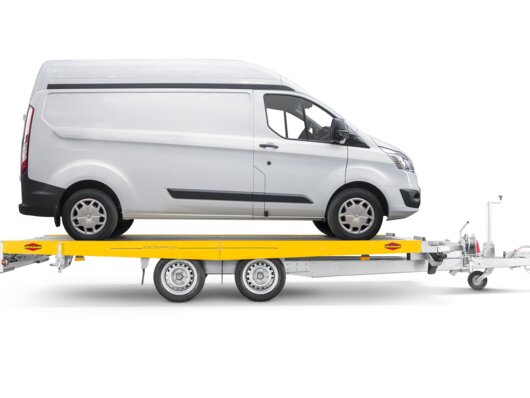

Attention all professionals: The successful vehicle transporter concept was developed further and improved. As a result the loading area length of 4300 mm means that you can also comfortably and reliably transport vehicles with a long wheelbase. And this in the twinkling of an eye with the original Böckmann quick-loading system. Combined with the excellent safety lifting system and a very low loading angle of only 10 degrees you have an excellent professional solution to hand which you will appreciate every day - With the total weight of 3.5 tonnes almost all vehicles can be transported with ease - and all this with an unsurpassed cost-benefit ratio. A vehicle transporter that will continue to set standards in the future.

The Böckmann added valuesAH-models

Oberbrücke der Fahrzeugtransporter Frontansicht mit V-Deichsel
Upper bridge

High load capacity due to hot-dip galvanised, solid upper bridge with cable winch and winch block as well as welded running rails.

Böckmann Fahrzeugtransporter AH-Serie Mehrwert Niedriger Schwerpunkt

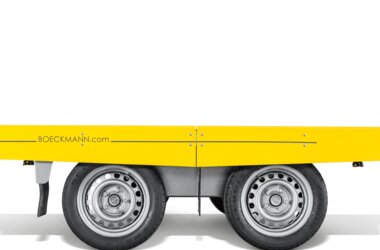

Low centre of gravity

thanks to 13"" low-profile tyres (depending on the model), for smooth running and optimum driving characteristics.

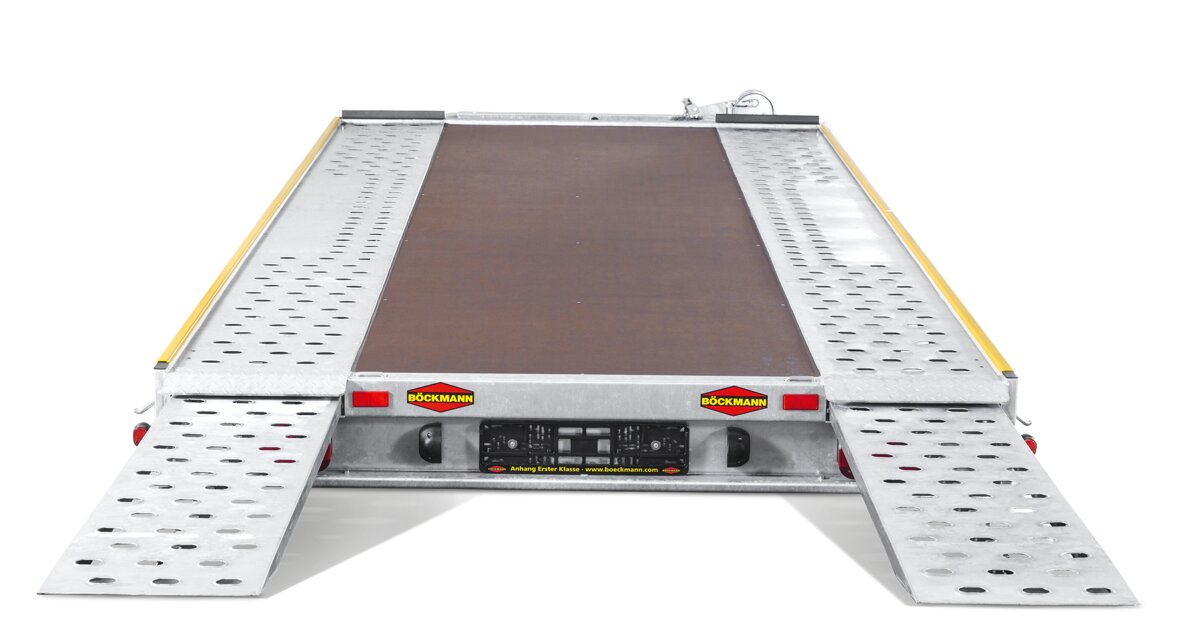

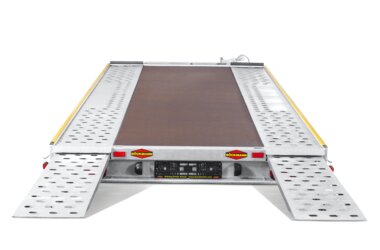

Böckmann Fahrzeugtransporter Zubehör Ladefläche geschlossen

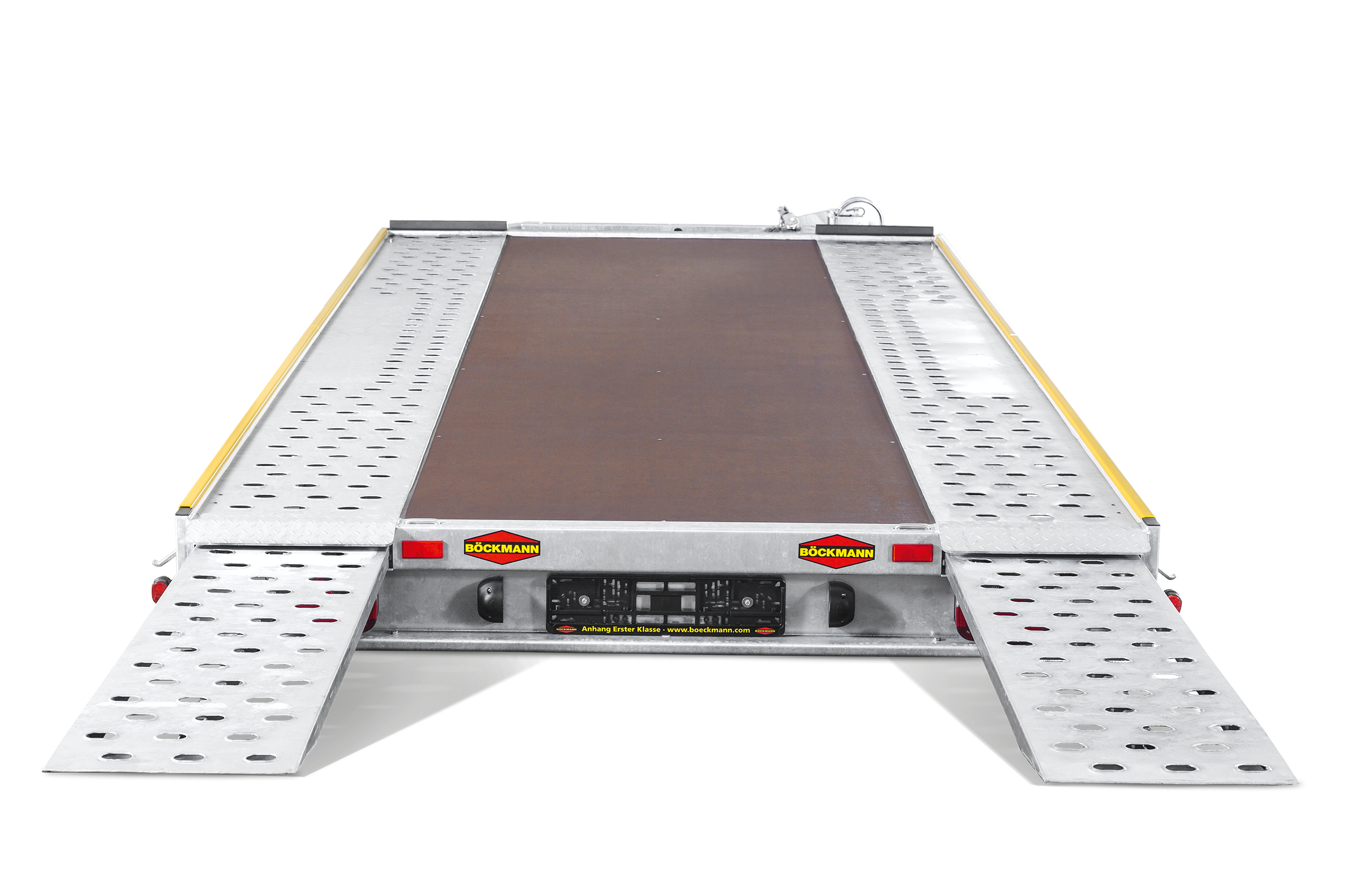

Drive-on rails

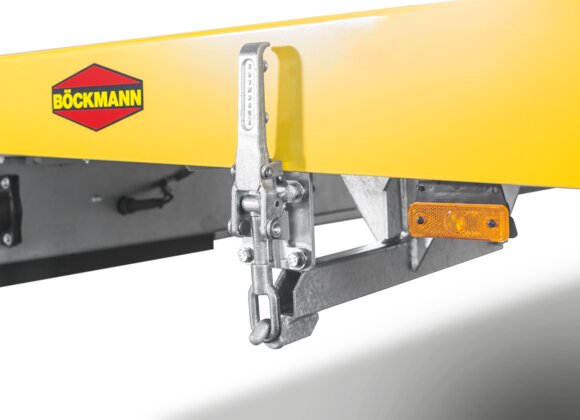

Extendable, robust steel drive-on rails mounted on smooth-running rollers with rattle-free clamping locks for securing (illustration shows accessories: screen-printed floor board between the running rails) (AH series).

Well thought out construction

Innovative details

Practical accessories

Technical data

Base

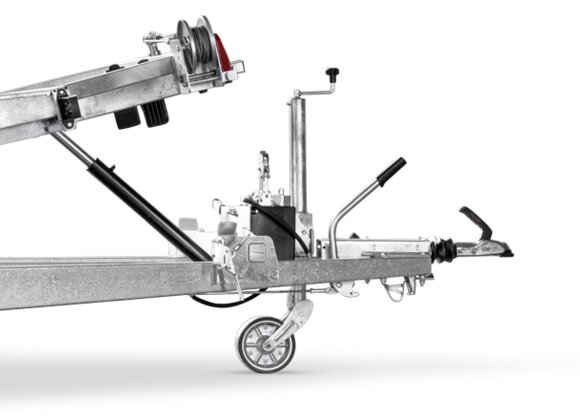

Jockey wheel Jockey wheel
Automatic
Tires Tires
13.0 Zoll
Loading height Loading height
600 mm
Overrun brake Overrun brake
Weight
Total weight Total weight
3500 kg
Payload Payload
2565 kg
Internal dimensions
Interior length Interior length
4300 mm
Interior width Interior width
2080 mm
Interior height Interior height
0 mm

Standard features

Body

  • Body color
    • sides in yellow
  • Body general
    • tiltable durable basic construction
  • Attachments
    • perforated skid-proofed rail
    • specially strong border for lights
    • reversing light (with 13 pin plug)
  • Loading
    • winch block
    • mechanical cable winch (900 kg) with guide roller
    • extendable drive-on rails
  • Lashings
    • 2 lashing shackles behind
    • 2 lashing shackles

Other

Chassis

  • Chassis
    • self-supporting drawbar 1230mm
    • V-tow hitch
    • axle with rubber suspension
    • low load height

Accessories

Body

  • Body color
    • sides painted in RAL colour
  • Attachments
    • spare wheel 13"(195/50R13)
    • spare wheel holder (mounted)

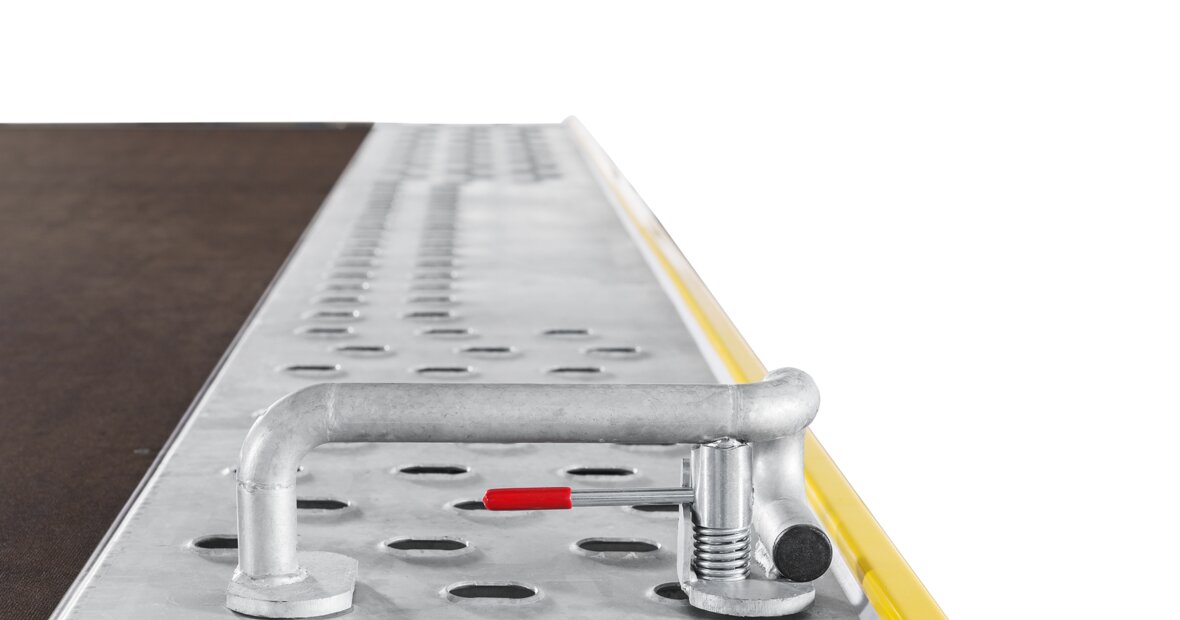

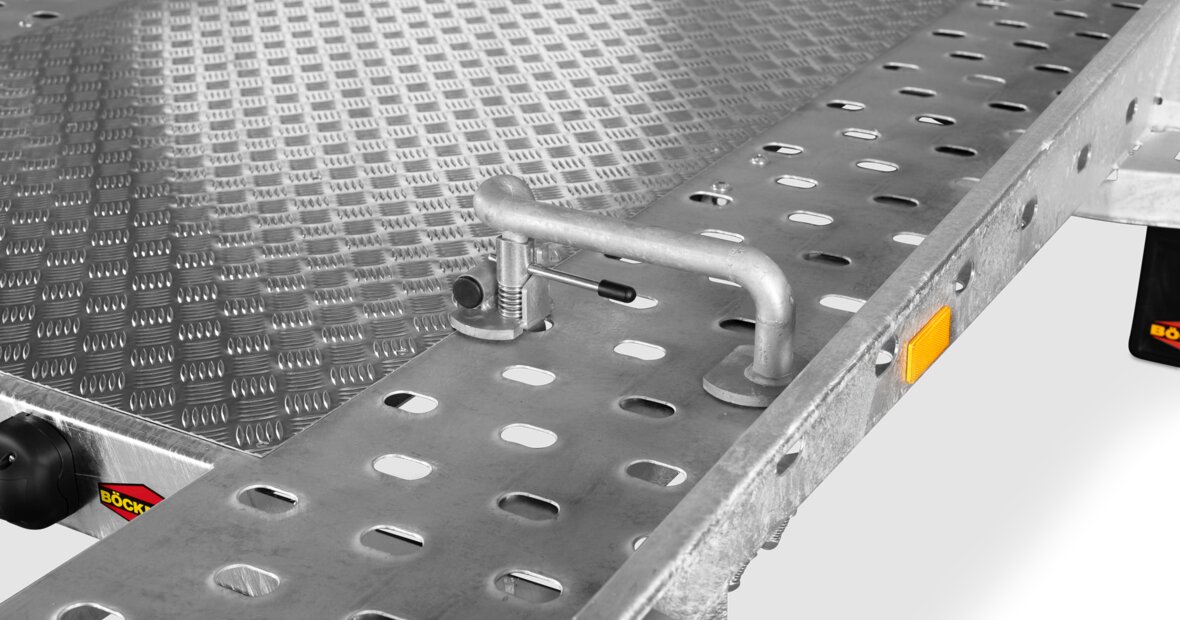

    • securing clamps (pair)
    • guide roller for cable winch
  • Floor
    • loading surface between rails closed (wood)
    • loading surface between rails closed (wood cov.with alu checker plate)
    • loading surface completely covered with alu checker plate

Chassis

  • Chassis

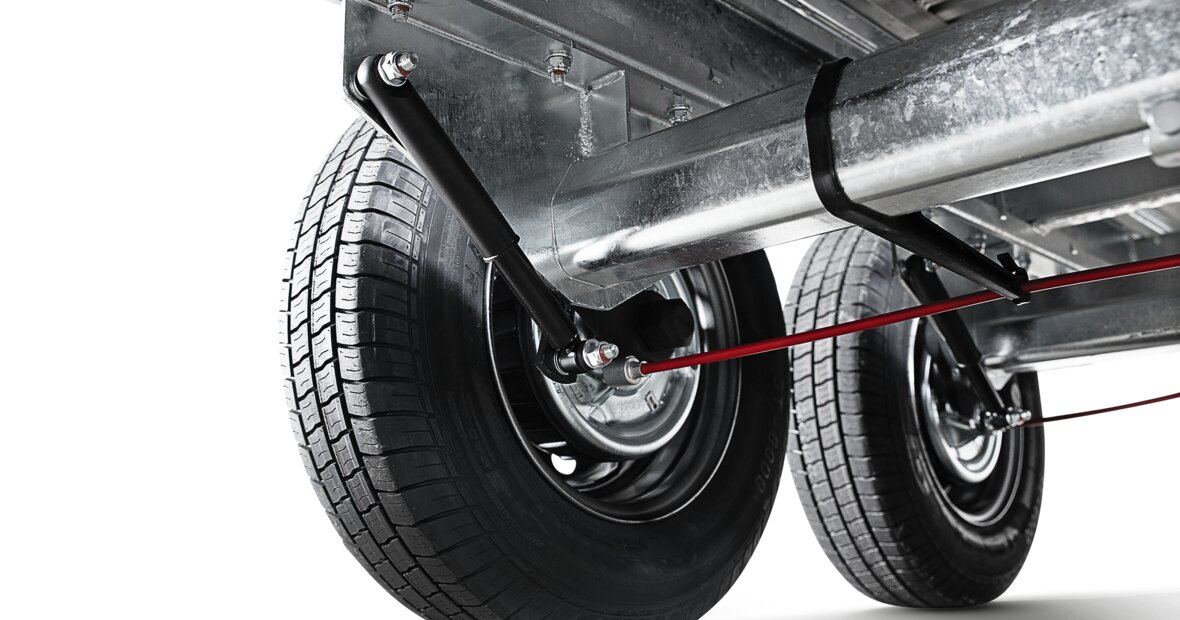

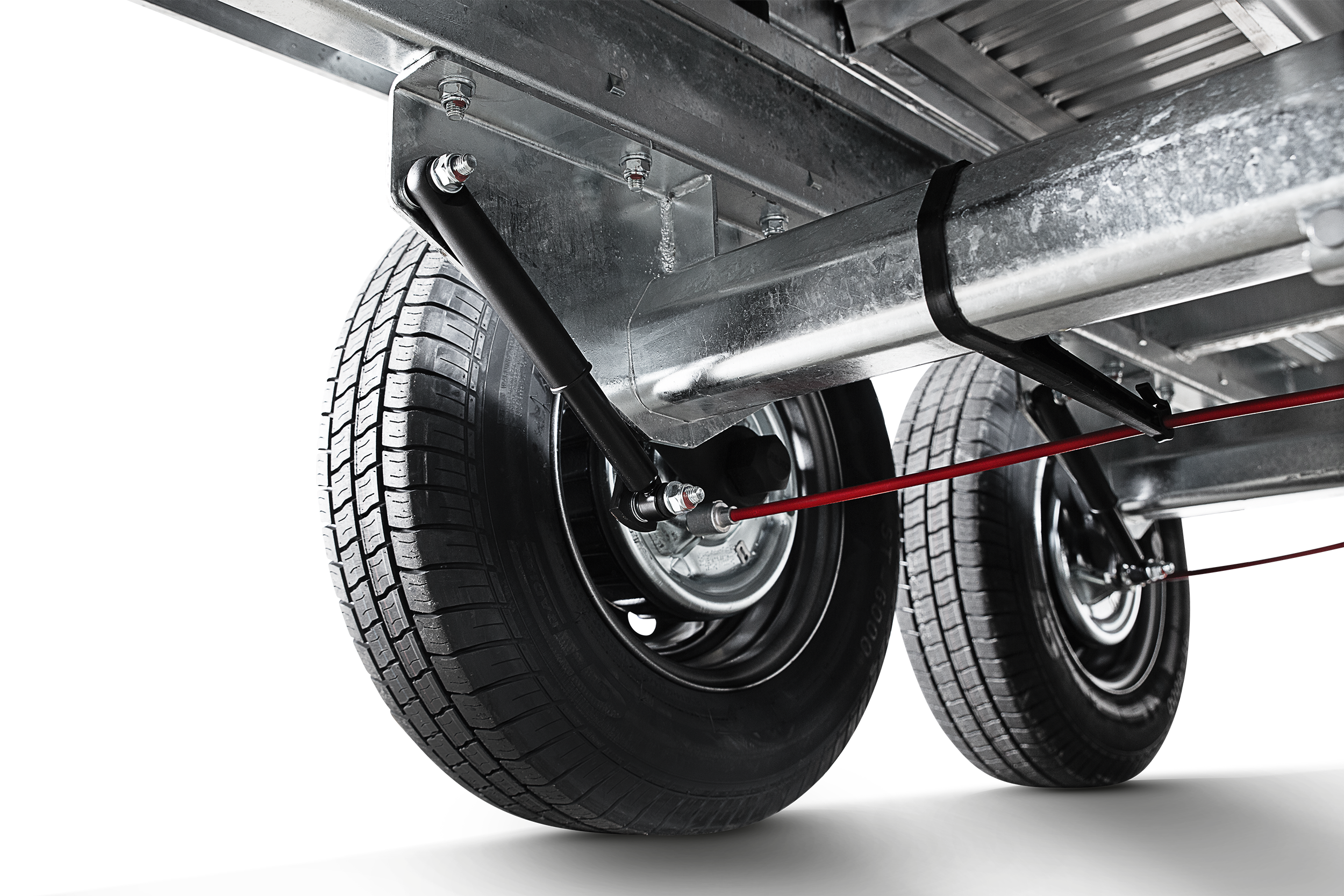

    • wheel shock absorbers (4 pcs)
