Characteristics
Model family
Van trailers
Total weight
1350 kg
Number of axles
1

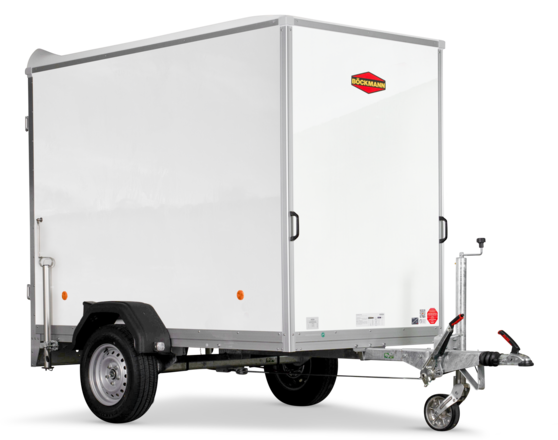

The sandwich van trailer KT-SW 2513/135 M is characterized by its robust sandwich side wall construction, which not only provides exceptional stability but also offers optimal protection against weather influences. The integrated CFlexLock system in the cargo area allows for professional and flexible load securing. Thanks to variable attachment points, various goods can be quickly and securely fixed. Particularly interesting for commercial users: The high-quality surface of the sandwich side walls provides the best conditions for individual branding. In combination with the wide range of available accessories, the case can be precisely adapted to individual requirements, making it the ideal companion for everyday life.
Technical data
Base
Jockey wheel
Tires
14.0 Zoll
Loading height
560 mm
Overrun brake
Weight
Total weight
1350 kg
Payload
1009 kg
passageway dimensions
Headroom
1,748 mm
Passage width
1,248 mm
External dimensions
Total length
3750 mm
Total width
1850 mm
Total height
2525 mm
Internal dimensions
Interior length
2505 mm
Interior width
1310 mm
Interior height
1885 mm
Standard features
Body
-
Side walls
- white sandwich side walls (High Gloss)
- CFlexLock system integrated in frame
- 1 rear wing-door
-
Attachments
- polyester roof, white
- Floor
-
Lashings
- 4 lashing rings fixed with sliding blocks
Chassis
-
Chassis
- axle with rubber suspension system, free of service
- aluminium anodised double profile frame and corner rungs
- self-supporting drawbar 1250mm
- 2 crossmembers
- Jockey wheel
Internal Space
Accessories
Body
-
Side walls
- Options for right side wall
- folding side section on right side, clearance dimensions: 2100x1320mm
- side door, right side 1615x710mm
- Options for left side wall
- folding side section on left side, clearance dimensions: 2100x1320mm
-
Attachments
- Selection attachments
- spare wheel 14"
- spare wheel holder (mounted)
- reinforced sliding drop legs (per pair)
- sliding drop legs (per pair)
- periphery lighting for reversing
- Colour of cover
- polyester roof, anthracite-metallic
- polyester roof, grey
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
-
Lashings
- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection lashing systems
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail
- countersunk lashing ring
- Additional lashing ring with sliding blocks (unmounted)
- Special accessories
Other
- Lettering
-
Special accessories
- 24-volt lighting system (with 15-pin plug)
- 220 V power socket in the interior (with RCD)
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
- Jockey wheel
