Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
Characteristics
Model family
Van trailers
Total weight
1350 kg
Number of axles
1

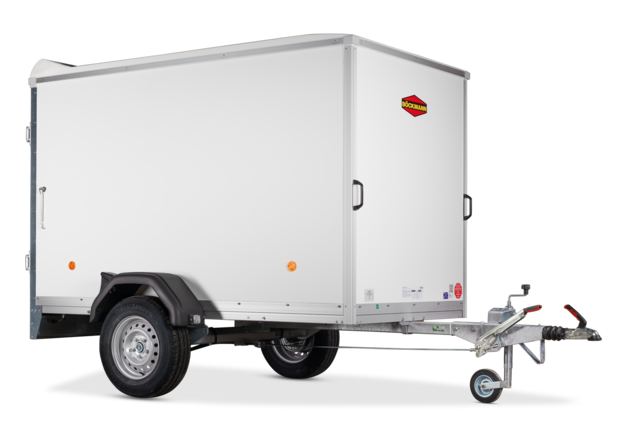

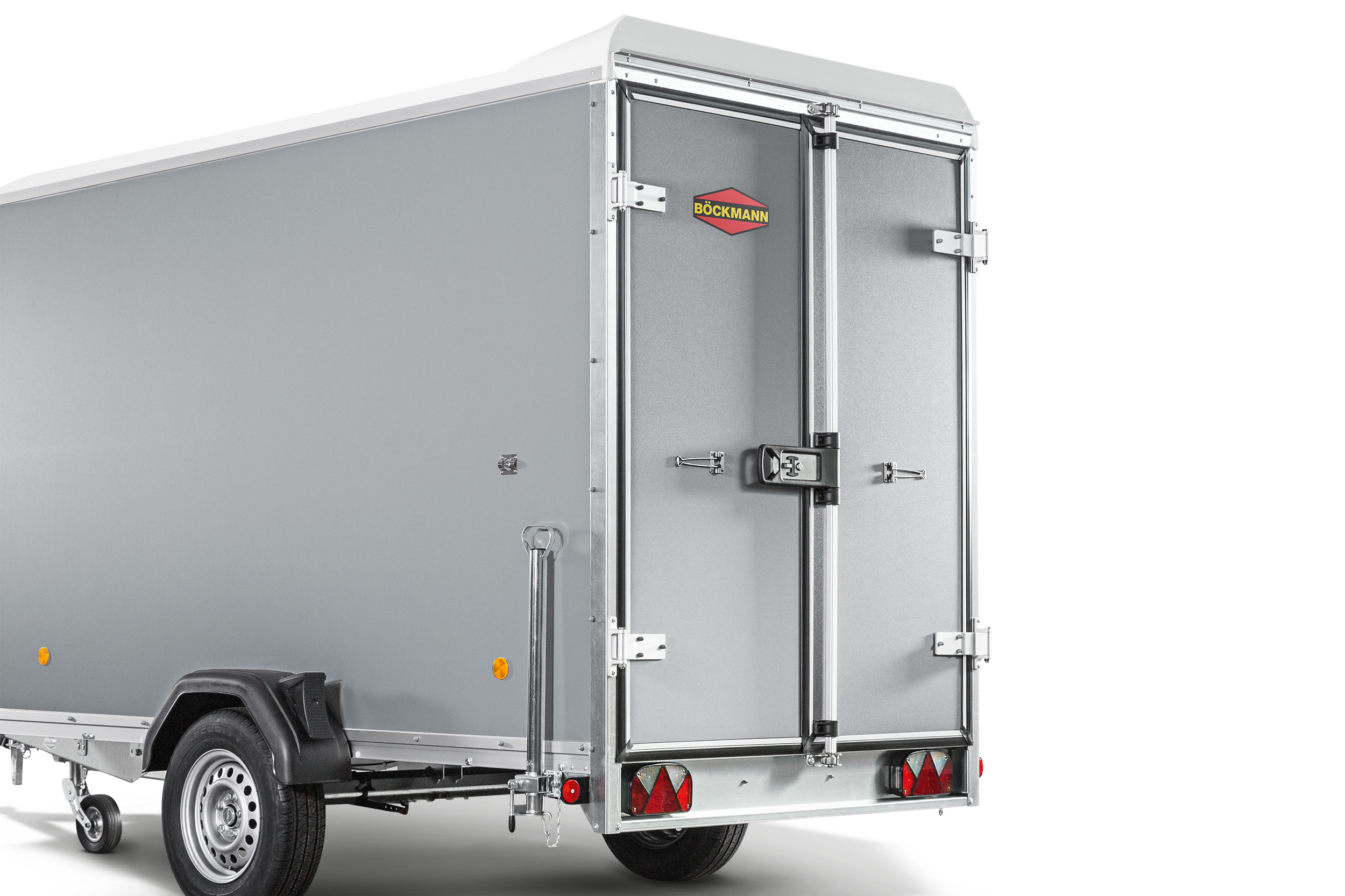

Simply practical! The plywood box trailers of the KT series with a white or optionally grey plywood superstructure have an impressively robust design, a number of practical details and a high-quality polyester roof with a spoiler. With a height of 1585 mm the standard model already provides lots of space for transporting your goods.
The Böckmann added valuesKT-models

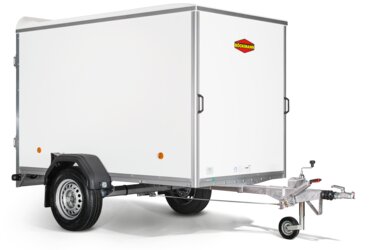

Well thought out construction

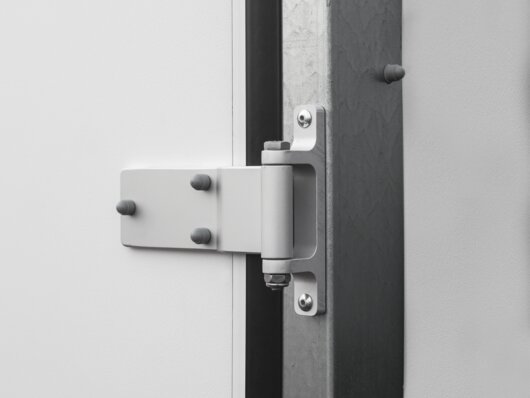

Innovative details

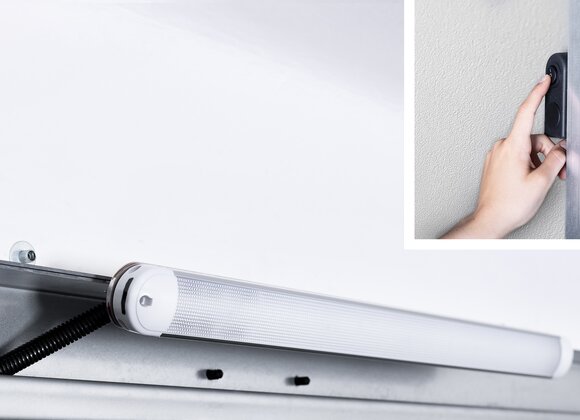

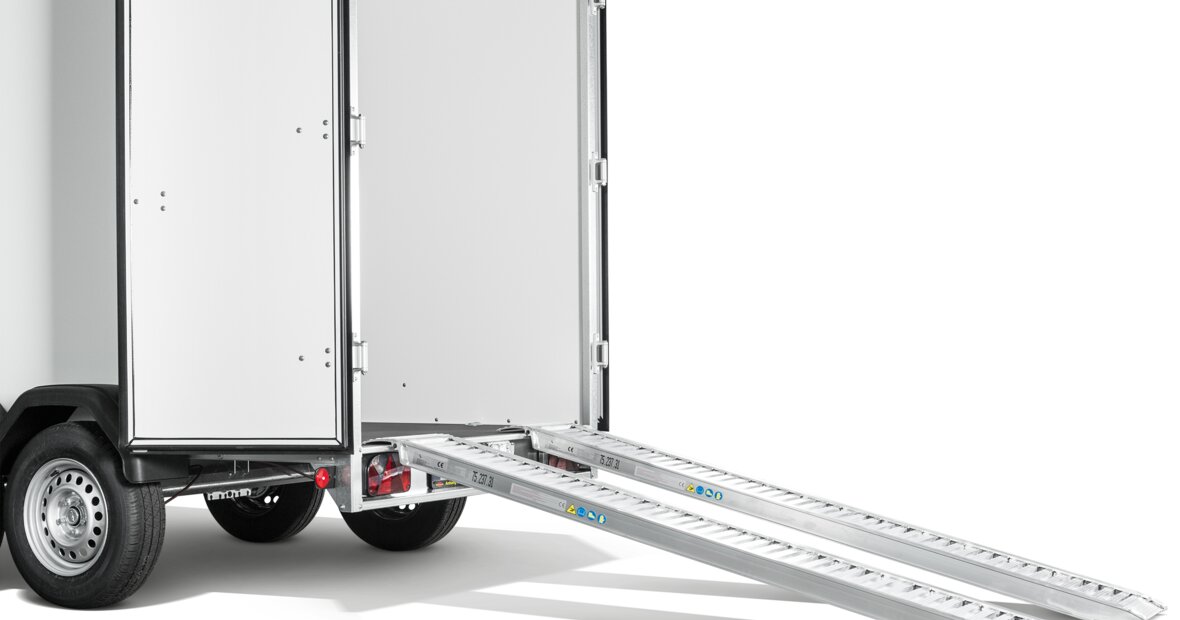

Practical accessories
Technical data
Base
Jockey wheel
Tires
14.0 Zoll

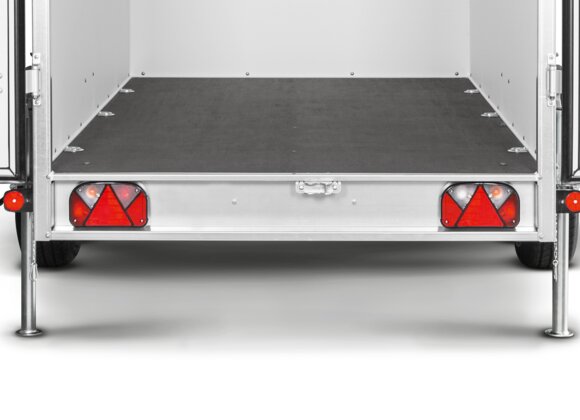

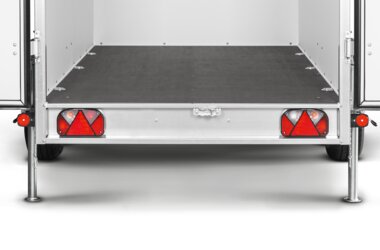

Loading height
560 mm
Overrun brake
Weight
Total weight
1350 kg
Payload
1006 kg
passageway dimensions
Headroom
1,448 mm
Passage width
1,448 mm
External dimensions
Total length
3750 mm
Total width
1850 mm
Total height
2225 mm
Internal dimensions
Interior length
2520 mm
Interior width
1335 mm
Interior height
1585 mm
Standard features
Body
-
Body color
- Side walls outside white /inside grey
-
Side walls

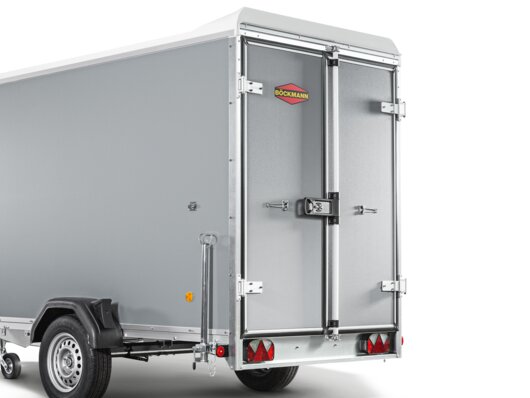

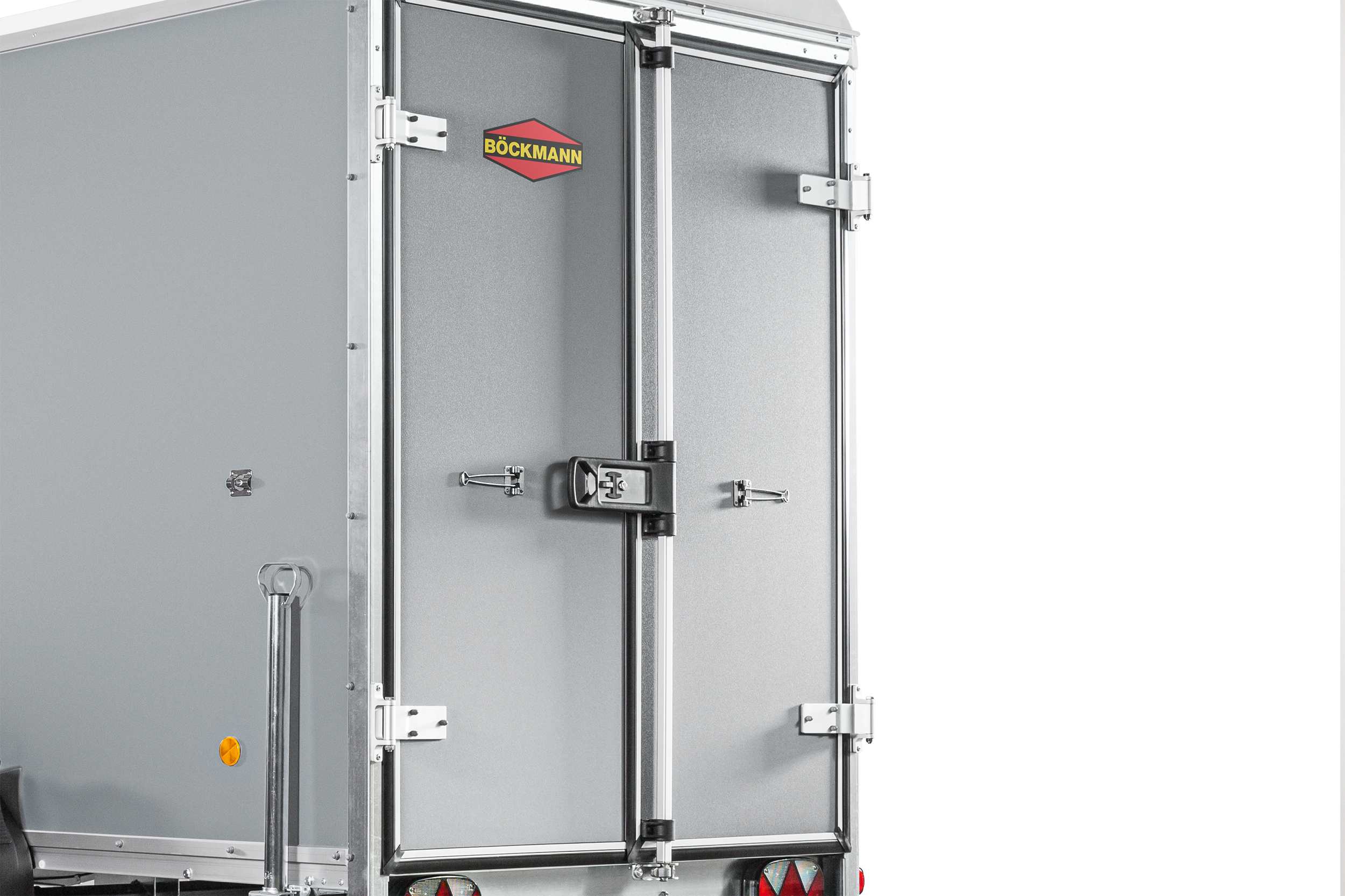

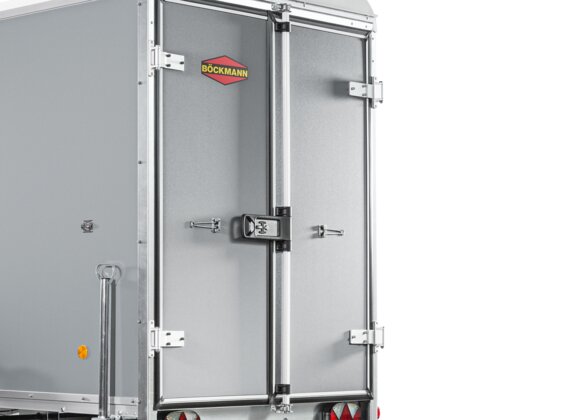

- 1 rear wing-door

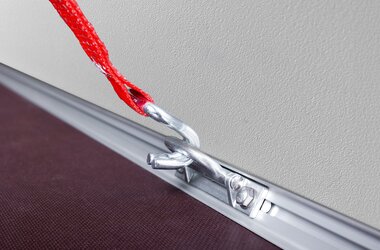

- CFlexLock system integrated in frame
-
Attachments
- rear frame galvanized

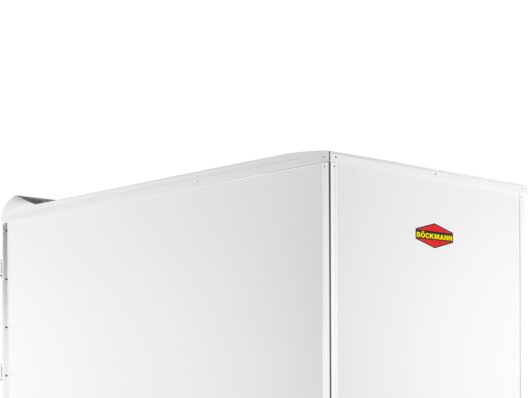

- polyester roof, white
- Floor
-
Lashings

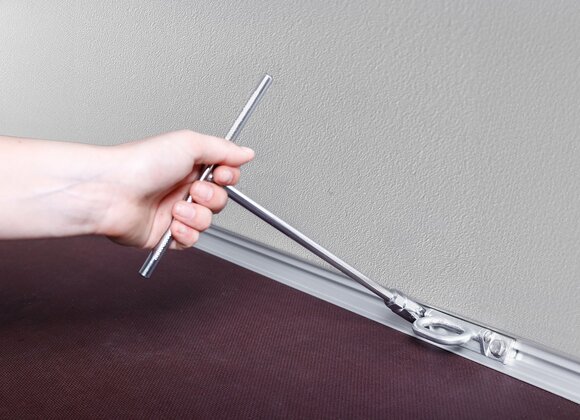

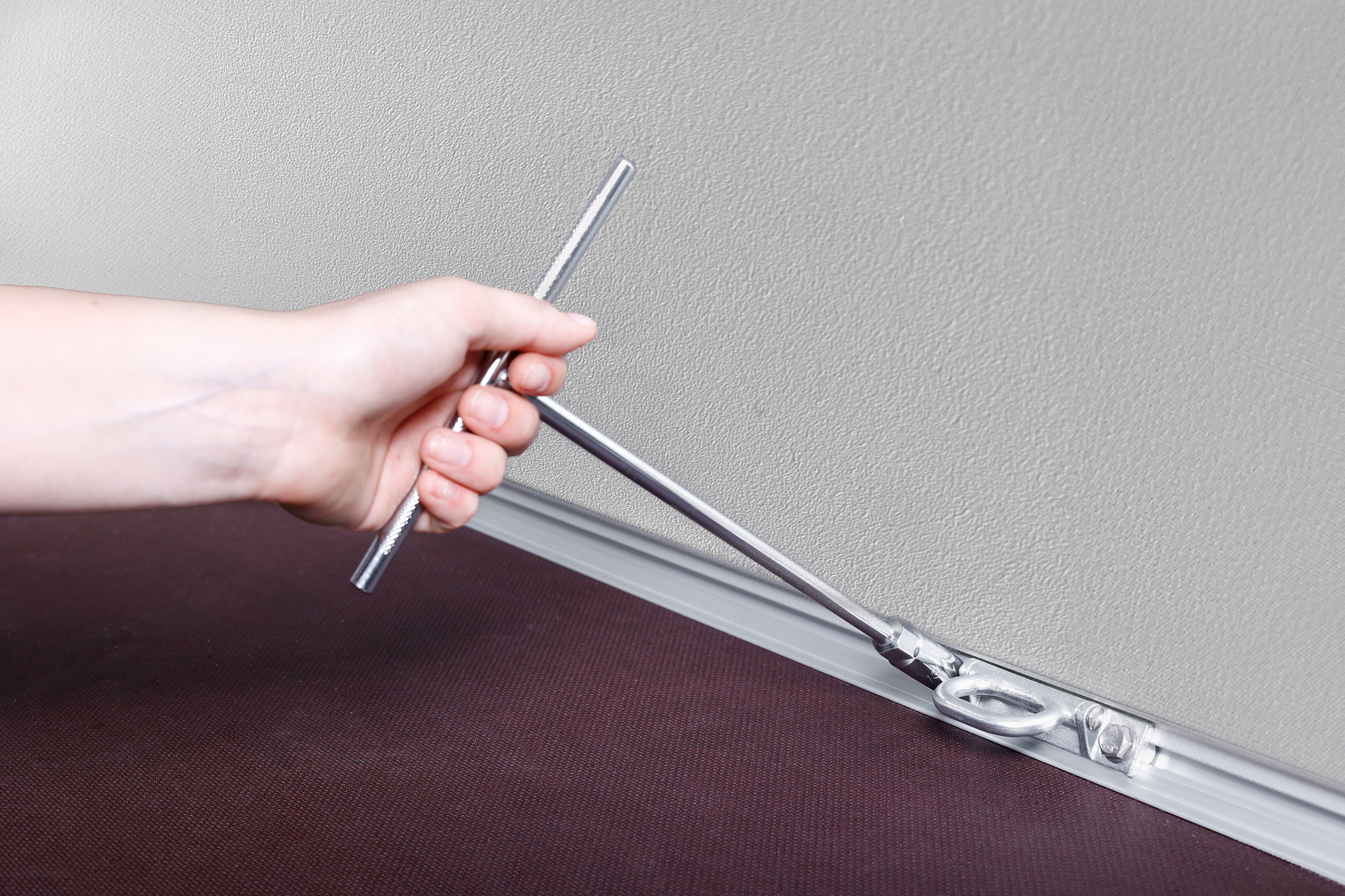

- 4 lashing rings fixed with sliding blocks
Chassis
-
Chassis
- axle with rubber suspension system, free of service

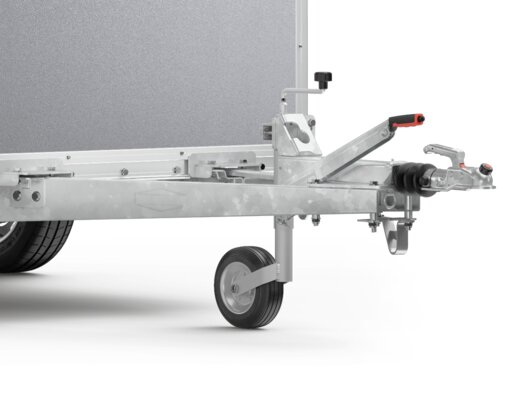

- self-supporting drawbar 1080mm

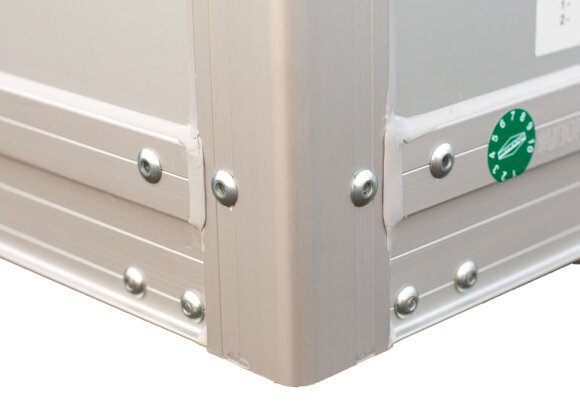

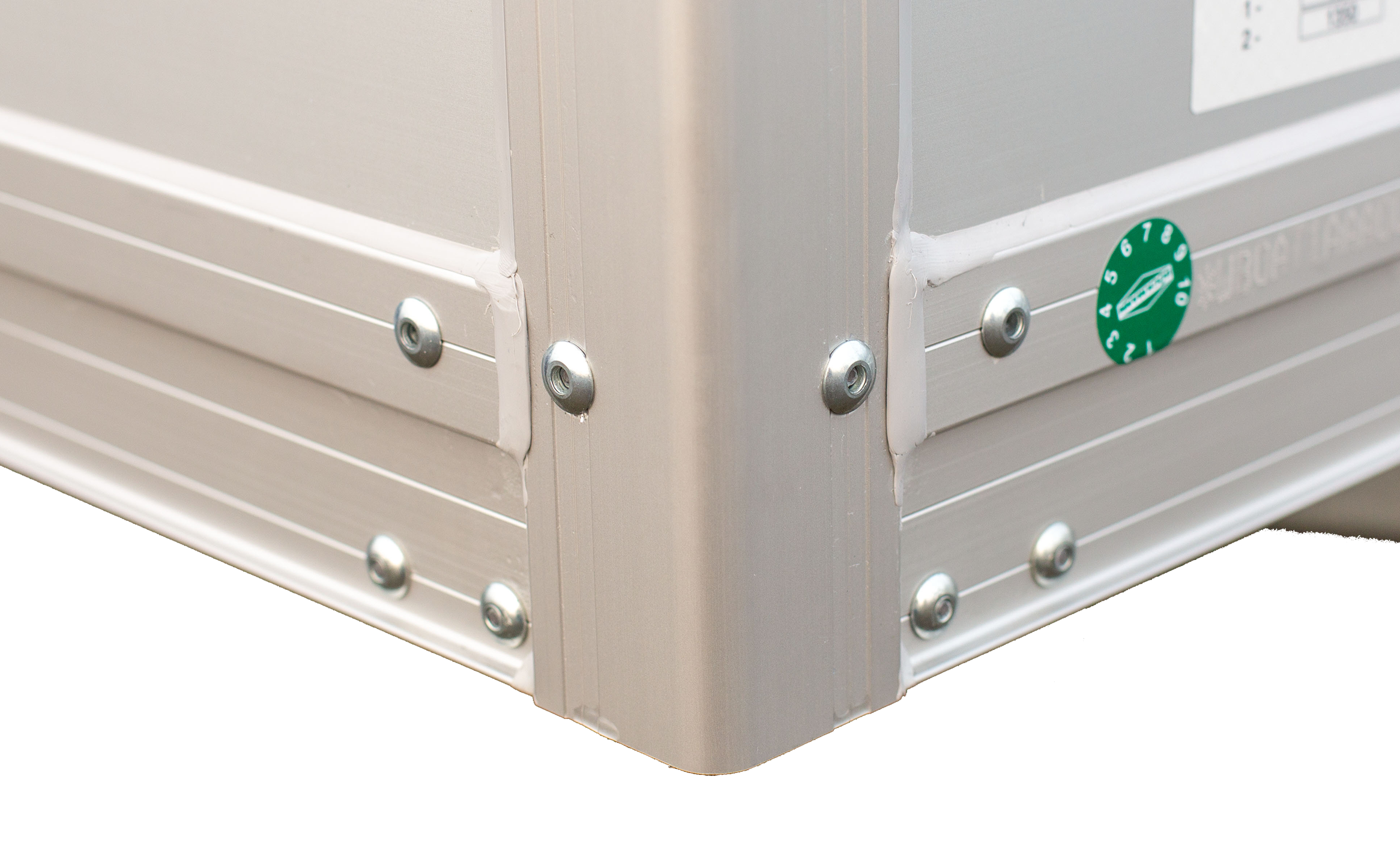

- aluminium anodised double profile frame and corner rungs
- 2 crossmembers
- Jockey wheel
Internal Space
Accessories
Body
- Body color
-
Side walls
- Options for right side wall

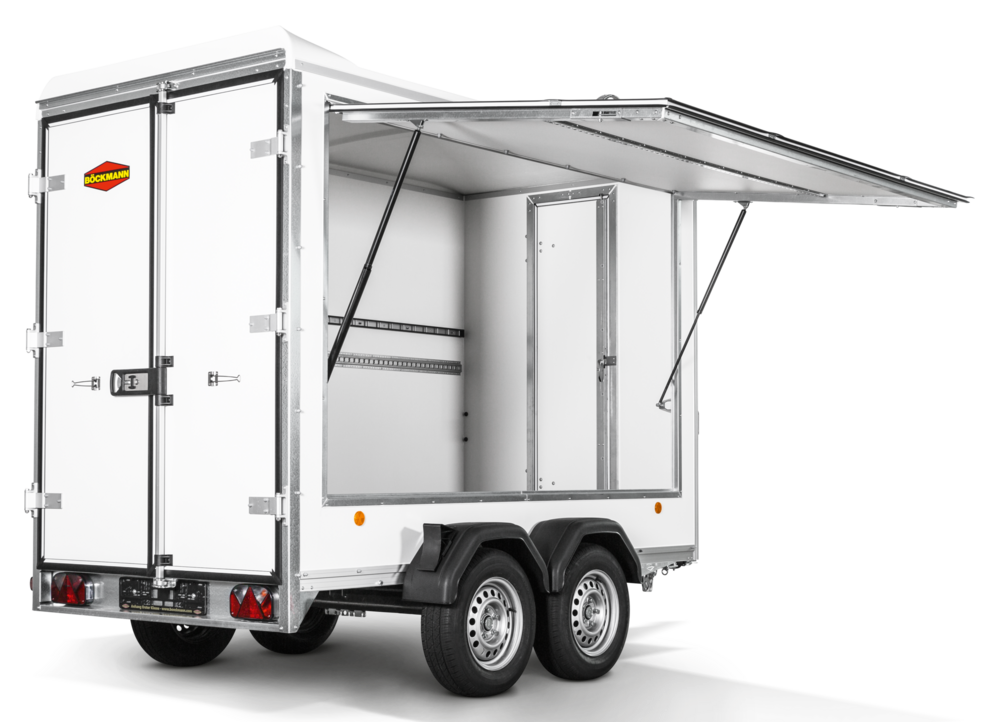

- folding side section on right side, clearance dimensions: 2115x1050mm
- side door, right side 1315x610 mm
- Options for left side wall
- folding side section on left side, clearance dimensions: 2115x1050mm
- side door, left side 1315x610 mm
- Options for front wall

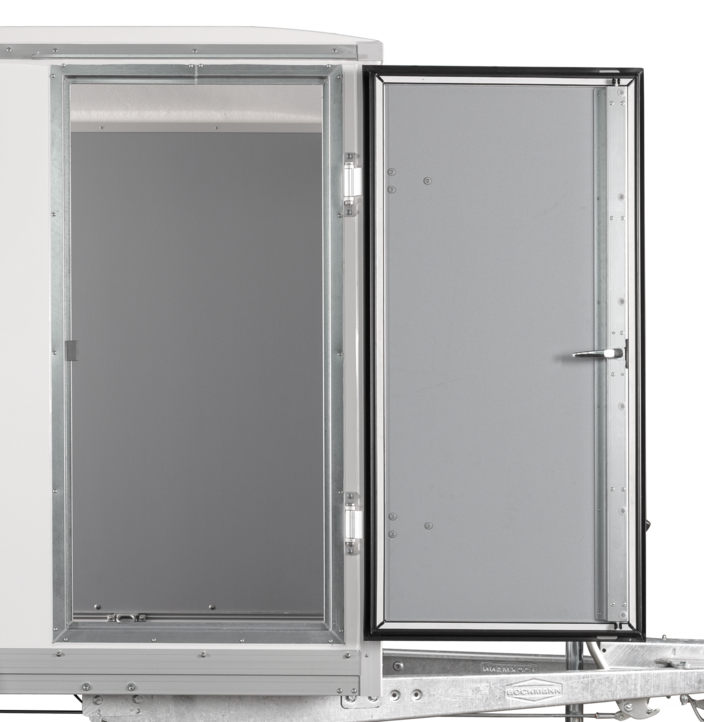

- front door 1315x500 mm
- Selection wing-door
- 2-wing door
-
Attachments
- Selection attachments
- spare wheel 14"
- spare wheel holder (mounted)
- reinforced sliding drop legs (per pair)
- sliding drop legs (per pair)
- telescopic crank drop legs (per pair)
- periphery lighting for reversing
- Colour of cover
- polyester roof, anthracite-metallic
- polyester roof, grey
-
Floor
- aluminium checker plate flooring
- galvanized steel sheet on floor
- Loading
-
Lashings

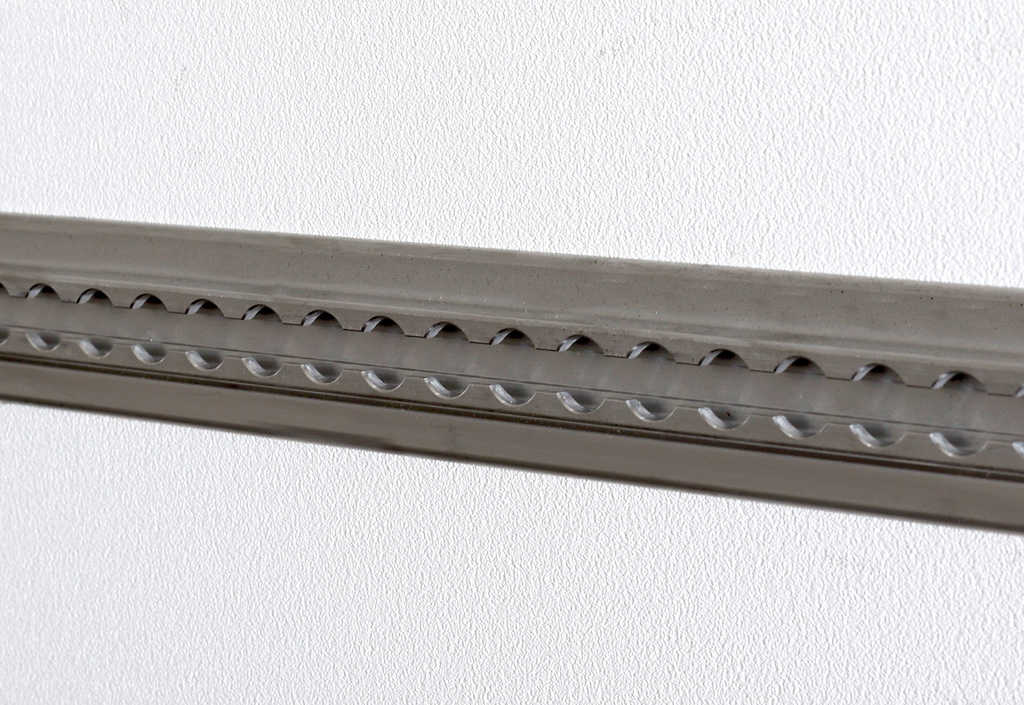

- airline rail left
- airline rail left side, mounting height approx. 1000mm
- airline rail left side, mounting height approx. 600mm
- airline rail left side, mounting height approx. 800mm
- AIr
- airline rail right side, mounting height approx. 1000mm
- airline rail right side, mounting height approx. 600mm
- airline rail right side, mounting height approx. 800mm
- Ankerschiene links
- lashing rail left side, mounting height approx. 1000mm
- lashing rail left side, mounting height approx. 600mm
- lashing rail left side, mounting height approx. 800mm
- L
- lashing rail right side, mounting height approx. 1000mm
- lashing rail right side, mounting height approx. 600mm
- lashing rail right side, mounting height approx. 800mm
- Selection lashing systems
- shut-off bar (per pc.)
- fitting with ring for airline rail
- shut-off bar for airline rail

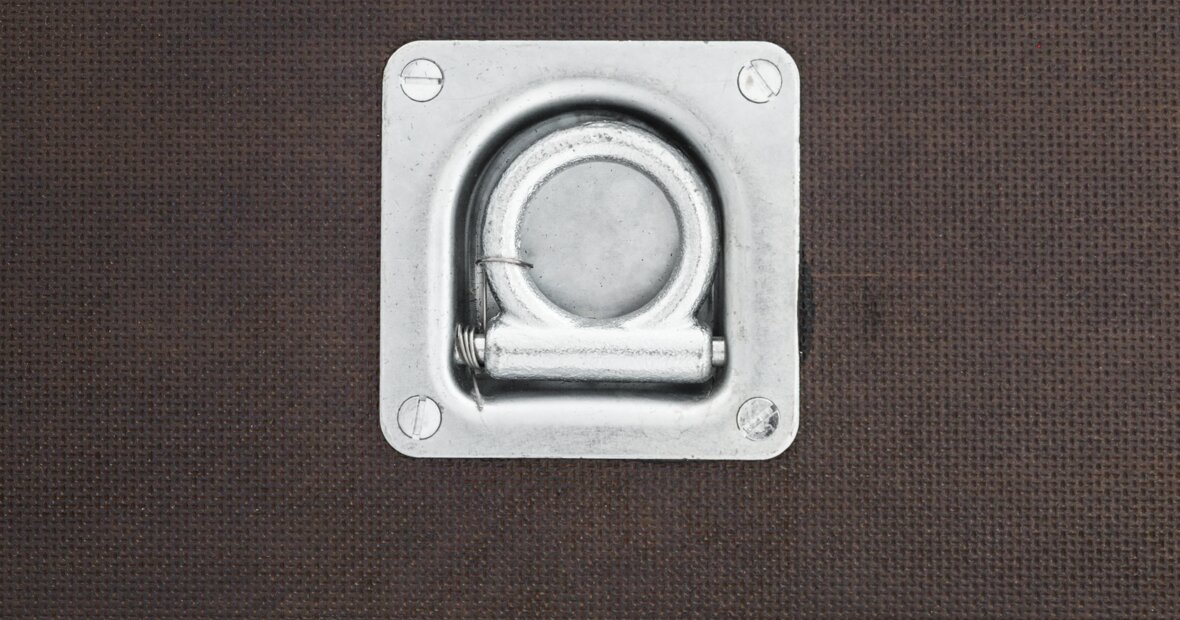

- countersunk lashing ring
- Additional lashing ring with sliding blocks (unmounted)
Chassis
-
Chassis
- wheel shock absorbers (2 pcs)
- Jockey wheel
