KH 4121/27 F
Price on request

Characteristics

Model family
Van trailers
Total weight
2700 kg
Number of axles
2

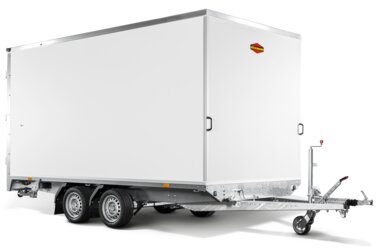

Designed for large jobs: This high-bed trailer design with a white superstructure. In this medium version you can get a load of 16.6 m³ on the road. This is no problem for the 13' tyres. The low loading height makes both loading and unloading easy. And the low centre of gravity ensures a pleasant driving experience.

The Böckmann added valuesKH-F-models

Böckmann Mehrwerte Koffer Hochlader Aufbau
Robust construction

Torsion-resistant base frame with solid steel profile bridge. Structure of plastic-coated plywood sidewalls ensures robustness, weather resistance and colour stability.

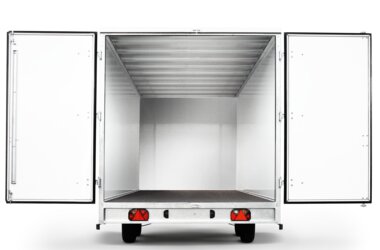

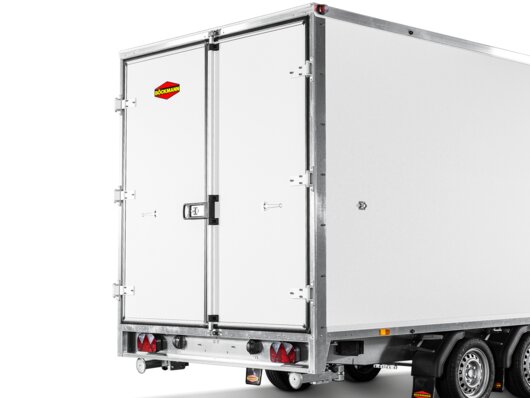

Böckmann Mehrwerte Koffer Hochlader Heckansicht
Loading heights

For particularly easy loading and unloading of the van trailer, the F-models have a very low loading height of 670 mm. For the standard models it is 770 mm.

Böckmann Mehrwerte Kofferanhänger Scharniere

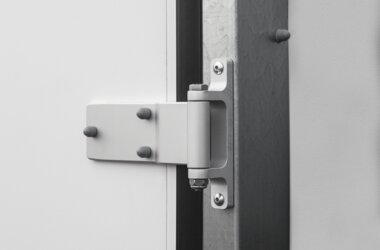

Solid anodised aluminium hinges

withstand even the greatest loads.

Well thought out construction

Innovative details

Practical accessories

Technical data

Base

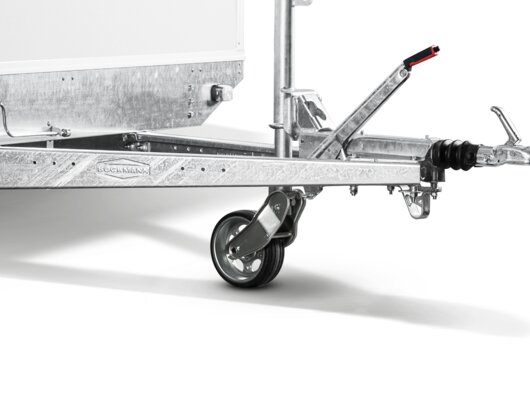

Jockey wheel Jockey wheel
Automatic
Tires Tires
13.0 Zoll
Loading height Loading height
660 mm
Overrun brake Overrun brake
Weight
Total weight Total weight
2700 kg
Payload Payload
1755 kg
passageway dimensions
Headroom Headroom
1945 mm
Passage width Passage width
1985 mm
Internal dimensions
Interior length Interior length
4100 mm
Interior width Interior width
2060 mm
Interior height Interior height
2008 mm

Standard features

Body

Chassis

Internal Space

Accessories

Body

Chassis

  • Chassis

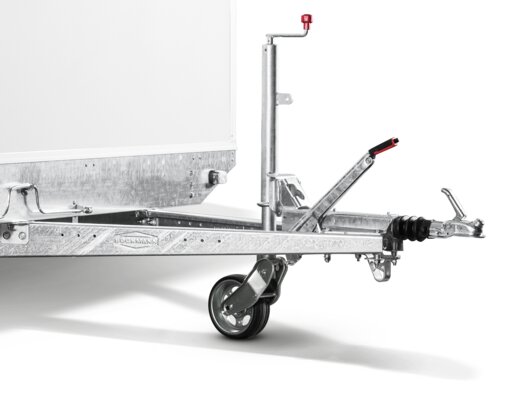

    • Version drawbar
    • V-drawbar extended up to 1750mm
    • V-drawbar extended up to 2000mm

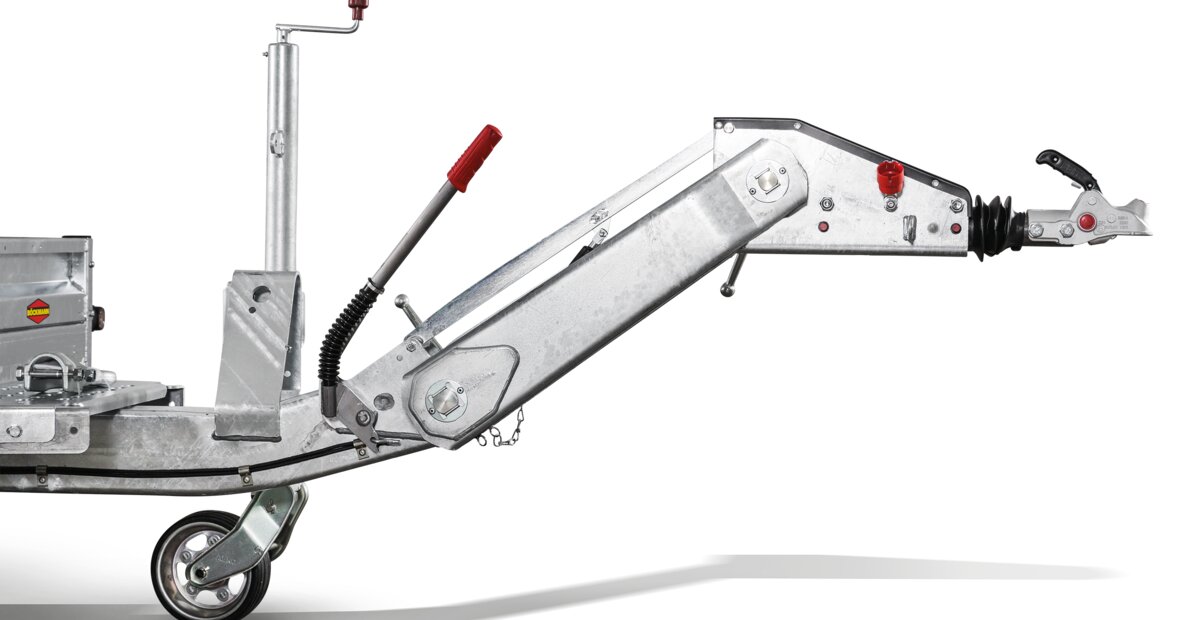

    • height-adjustable overrun device (with trailer hitch)
    • Selection chassis

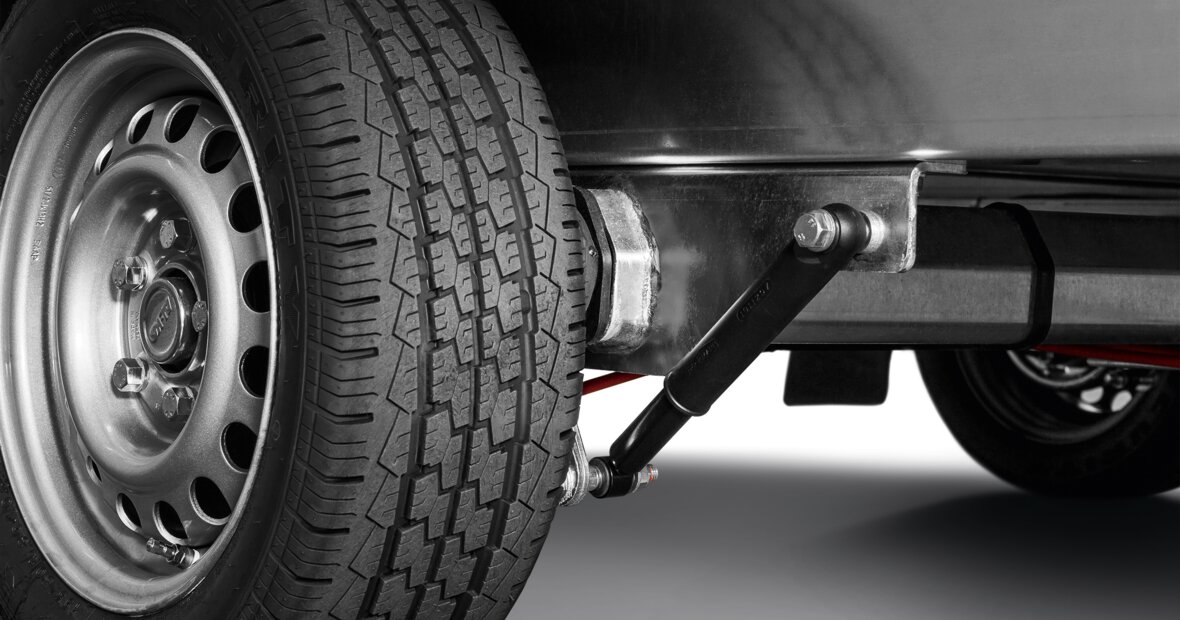

    • wheel shock absorbers (4 pcs)
