HL-EU1

HL-EU1
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
HL-EU1
Price on request

Characteristics

Model family
Platform trailers
Total weight
650 kg
Number of axles
1

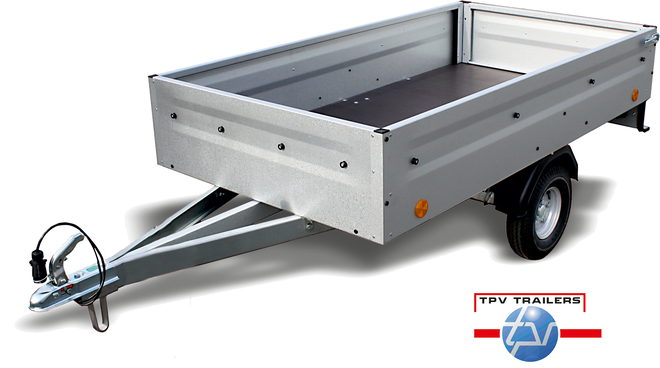

The unbraked TPV high-loaders with sheet-steel side walls and a total weight of 650 kg - quality and service guaranteed.

Technical data

Base
Jockey wheel Jockey wheel
Longitudinal members Longitudinal members
3
Tires Tires
8.0 Zoll
Loading height Loading height
515 mm
Weight
Total weight Total weight
650 kg
Payload Payload
558 kg
Internal dimensions
Interior length Interior length
1735 mm
Interior width Interior width
1075 mm
Interior height Interior height
345 mm

Standard features

Body

  • Side walls
    • 1,0 mm thick steel sheet side panels
  • Attachments
    • plastic fenders
    • plug, 13 pin
  • Floor
    • 9 mm thick wooden floor with slip-resistant screen-printed surface

Chassis

  • Chassis
    • rubber spring axle with independent suspension
  • Chassis
    • galvanized tow bar
    • 3 side members

Accessories

Body

  • Side walls
    • Mounting profiles for sliding support
    • grass rails 340 mm
    • grass rails 680 mm
    • box attachment, 340 mm
    • box attachment, 680 mm
    • sliding support
  • Tarpaulin and hoops
    • flat canvas top, blue
    • frame and PVC canvas (blue), 800 mm

Chassis
