TL-ALK 2113/75

TL-ALK 2113/75
TL-ALK 2113/75
TL-ALK 2113/75
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!
TL-ALK 2113/75
Price on request

Characteristics

Model family
Plant trailers
Total weight
750 kg
Number of axles
1

With the tilting aluminium box trailer of the TL-ALK series you profit four times over; firstly from the low loading angle due to the lowered construction that is ideal for machines with a low ground clearance. Secondly from the many possible applications due to the interior length of 2100 mm - for transporting ride-on lawn mowers to small construction machines. Thirdly from the track-proven professional quality. And fourthly from the impressive design with the anodised aluminium superstructure.

The Böckmann added valuesBox trailer TL-ALK

Böckmann Mehrwerte Tieflader TL-ALK Ladefläche

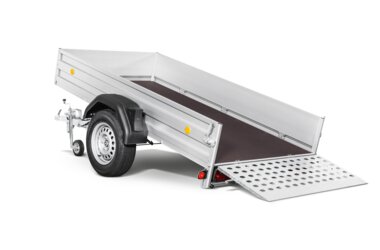

Tilting loading platform

The models of the TL-ALK series with their tilting loading platform are the ideal transport solution for smaller machinery such as ride-on lawn mowers.

Böckmann Mehrwerte Tieflader TL-ALK Auffahrrampe

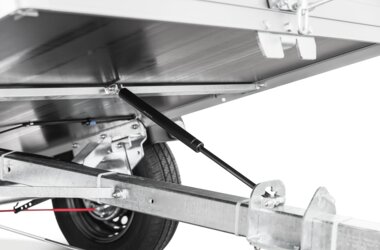

Tilting device

The tilting device is equipped with a gas pressure shock absorber – for easier lifting and gentle lowering of the loading platform with minimised risk of injury.

Böckmann Mehrwerte Tieflader TL-ALK Auffahrrampe

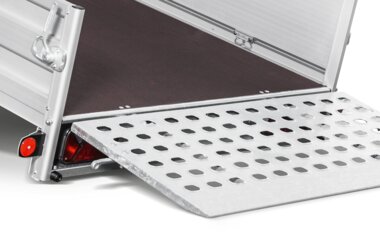

Galvanised loading ramp

The robust and galvanised construction of the loading ramp with a length of 500 mm and a maximum load capacity of 300 kg includes perforation which minimises the risk of slipping when loading small vehicles and lowers the weight and wind load, resulting in lower fuel consumption.

Comfort and handling

Stable construction

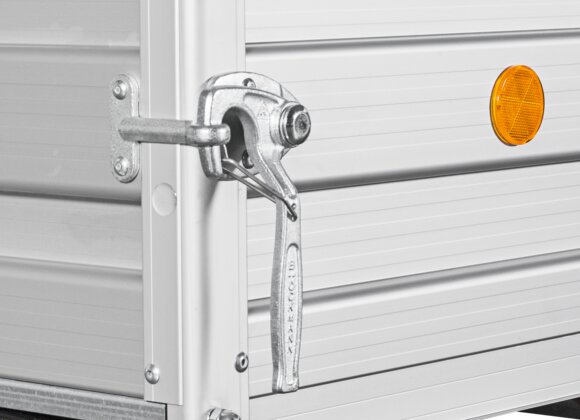

Transport lockSafe loading

Practical accessories

Technical data

Base
Jockey wheel Jockey wheel
Tires Tires
13.0 Zoll
Swinging rear flap Swinging rear flap
Loading height Loading height
500 mm
Weight
Total weight Total weight
750 kg
Payload Payload
579 kg
Internal dimensions
Interior length Interior length
2100 mm
Interior width Interior width
1300 mm
Interior height Interior height
350 mm
