MH-AL 4320/35
Price on request

Characteristics

Family
Plant trailers
Total weight
3500 kg
Number of axles
2

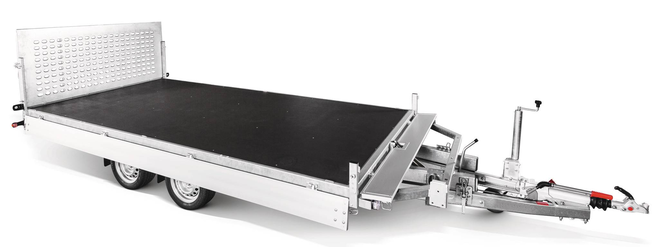

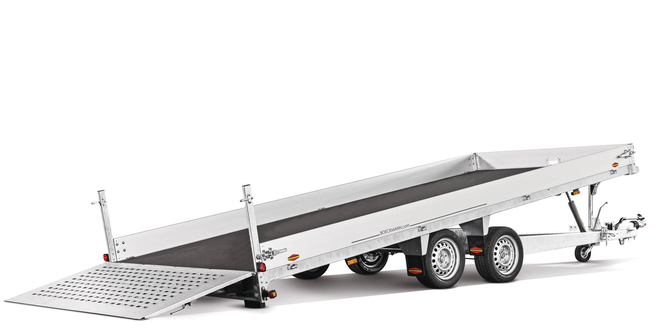

Large or small, wide or narrow: with these hydraulically operated, tilting construction machine transporters almost all vehicles and equipment can be easily transported on the large loading platform of 4300 mm and a width of 2080 mm. Maximum flexibility is key - With the folding and removable walls on three sides and an ideal loading angle due to the low-profile tyres, it can not only be loaded from any side, but is also suitable for transporting low-floor vehicles. With a total weight of 3.0 t the original Böckmann construction machine transporter is a truly professional solution that you can rely on every day.

The Böckmann added valuesMH-models

Böckmann Mehrwerte Maschinentransporter Auffahrrampe

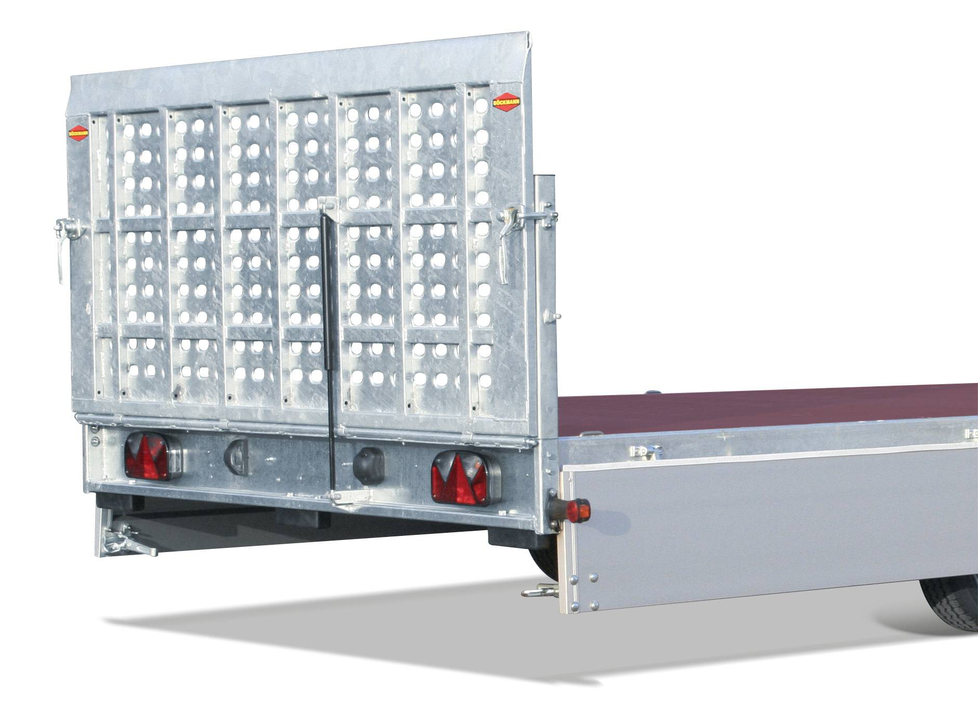

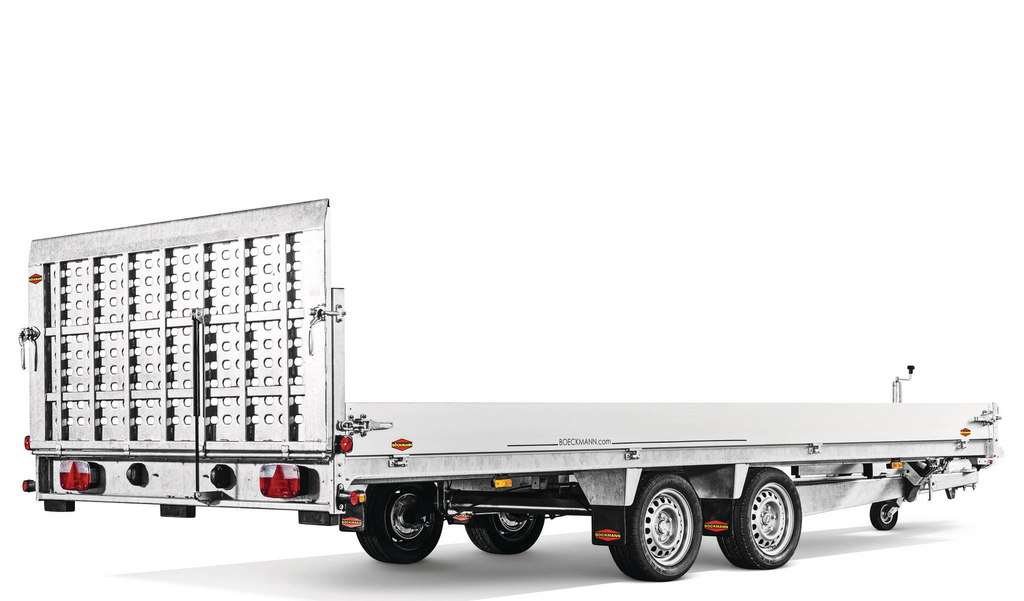

Galvanised loading ramp

Solid perforated sheet steel; gas pressure shock absorber for easy lowering and lifting.

Böckmann Mehrwerte Maschinentransporter niedrige Ladehöhe
Low loading height

The MH-AL models are fitted with 12" or 13" tyres as a standard feature. This reduces the loading height down to 630 mm.

Böckmann Mehrwerte Maschinentransporter Grundrahmen

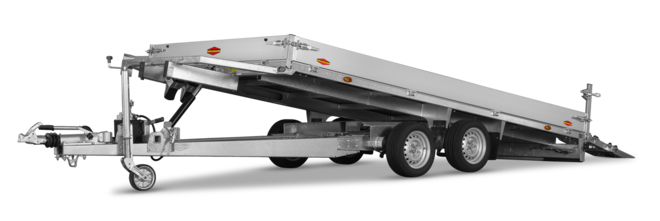

Base frame and special profile bridge

The torsion-resistant, welded and galvanised base frame with a hydraulically tilting, self-supporting special profile bridge meets even the toughest demands.

Well thought out construction

Innovative details

Practical accessories

Technical data

Base
Jockey wheel Jockey wheel
Tires Tires
13 Zoll
Loading height Loading height
630 mm
Overrun brake Overrun brake
Weight
Total weight Total weight
3500 kg
Payload Payload
2595 kg
Internal dimensions
Interior length Interior length
4300 mm
Interior width Interior width
2080 mm
Interior height Interior height
200 mm

Standard features

Body

Chassis

Accessories

Body

Chassis

  • Chassis selection
    • wheel shock absorbers (4 pcs)
  • options of chassis:
    • wheel shock absorbers (4 pcs)
