Characteristics
Model family
Box trailers
Total weight
750 kg
Number of axles
1

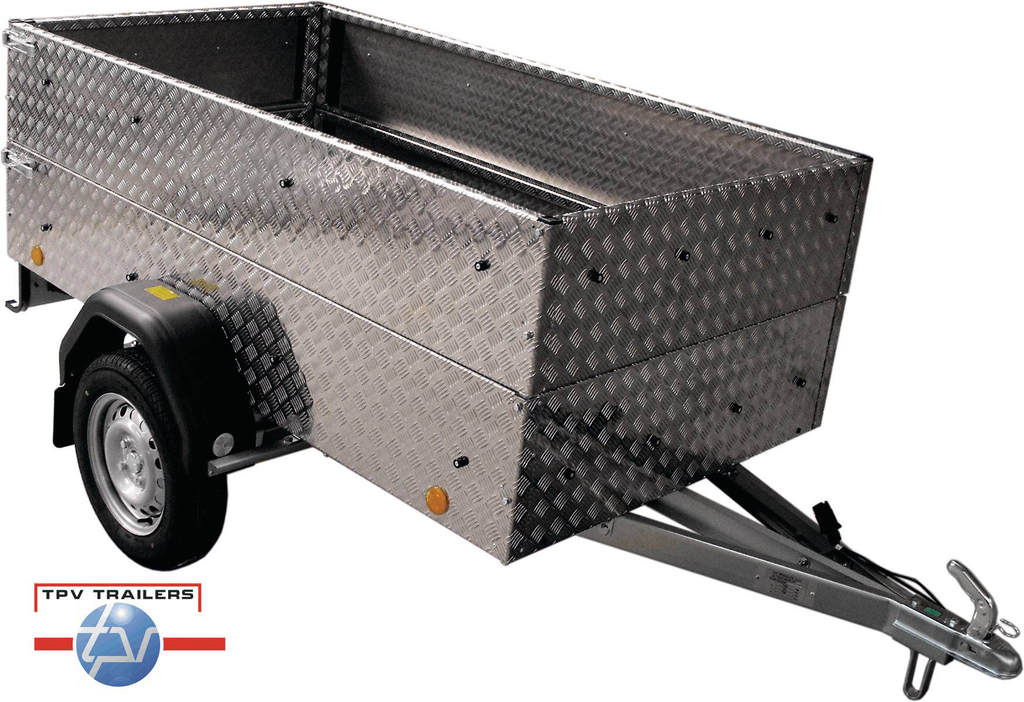

Unbraked single-axle van trailer with sheet-aluminium side walls and cover in grey with a total weight of 750 kg.
Technical data
Base
Jockey wheel
Tires
13.0 Zoll
Loading height
520 mm
Weight
Total weight
750 kg
Payload
618 kg
External dimensions
Total length
2960 mm
Total width
1680 mm
Total height
860 mm
Internal dimensions
Interior length
2020 mm
Interior width
1235 mm
Interior height
340 mm
Standard features
Body
-
Attachments
- plastic fenders
- 4 lashing shackles
- plug, 13 pin
- Sturdy aluminum checker plate 2/3
-
Floor
- 15 mm thick wooden floor with slip-resistant screen-printed surface
Chassis
-
Chassis
- 3 side members
Accessories
Body
-
Side walls
- Mounting profiles for sliding support

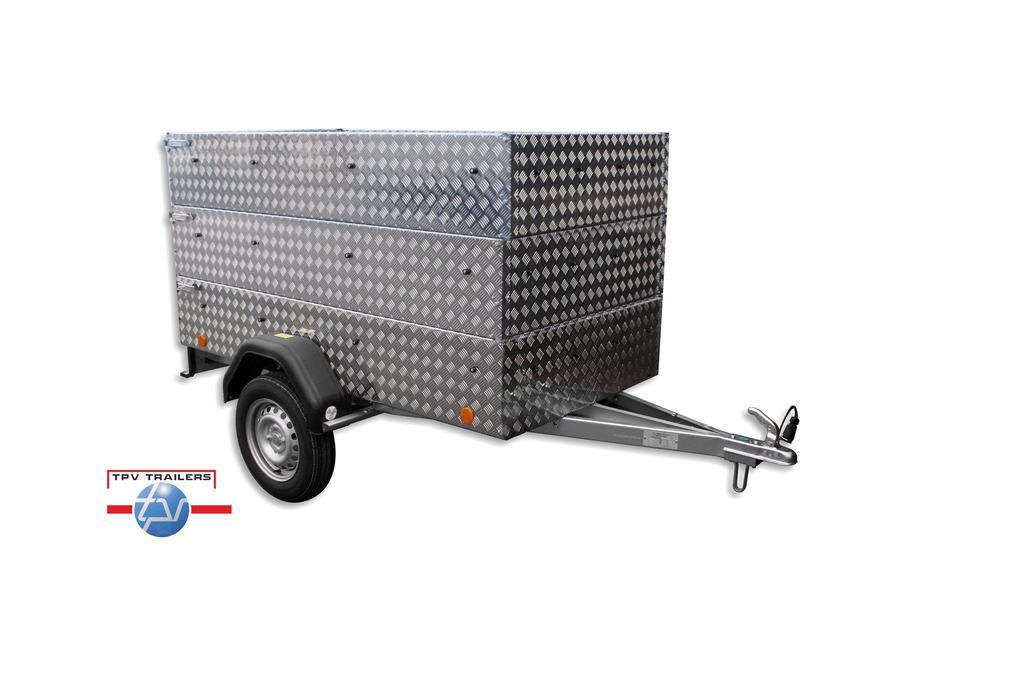

- Box attachment in aluminum checker plate 340mm
- Box attachment in aluminum checker plate 680mm
- sliding support
-
Attachments
- Spare wheel 145/80 R 13
- Spare wheel holder
- Tarpaulin and hoops
Chassis
-
Jockey wheel
- normal support wheel
