Characteristics
Model family
Box trailers
Total weight
750 kg
Number of axles
1

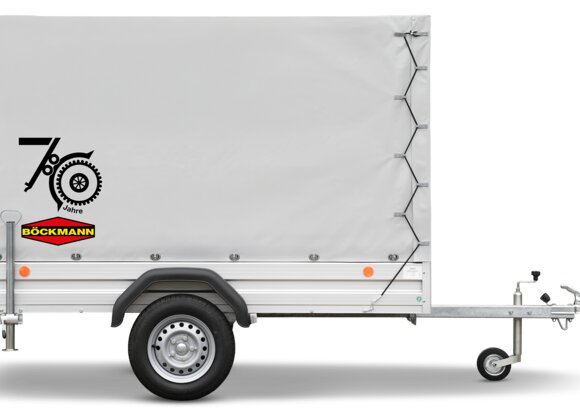

The low-bed trailer anniversary model TL-AL 2513/75 is available as a limited edition for a short time only. The trailer impresses with its high-quality aluminium construction and the proven CFlexLock system for flexible load securing. In addition to the proven basic equipment, the model features an exclusive accessories package consisting of a 1200 mm tarpaulin and hoop construction in grey, jockey wheel, sliding drop legs and the Böckmann anniversary logo.
The Böckmann added valuesBox trailer
Stable construction
Transport lockSafe loading
Practical accessories
Technical data
Base

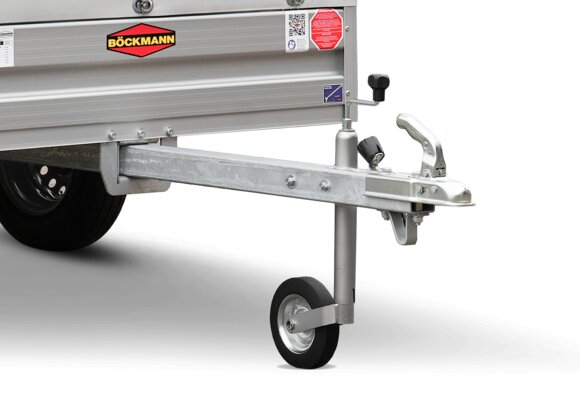

Jockey wheel
Tires
13.0 Zoll
Loading height
500 mm
Weight
Total weight
750 kg
Payload
577 kg
External dimensions
Total length
3630 mm
Total width
1760 mm
Total height
845 mm
Internal dimensions
Interior length
2515 mm
Interior width
1300 mm
Interior height
350 mm
Standard features
Body
-
Side walls
- fixed front wall
- sidewalls alu-anodized
- side walls with integrated load securing CFlexLock System
-
Attachments
- security lights
- plug, 13 pin

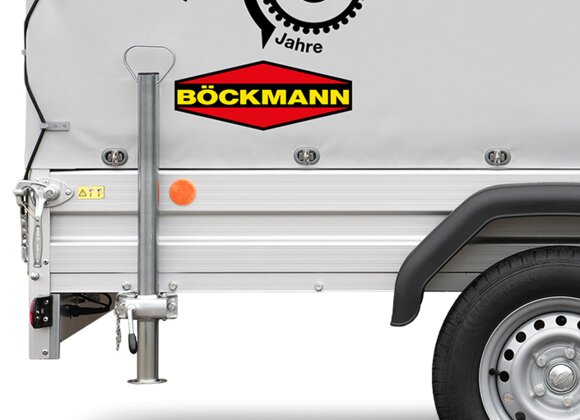

- sliding drop legs (per pair)
- Floor
-
Tarpaulin and hoops
- canvas colour: grey (similar to RAL7035)
- frame and PVC canvas, 1200 mm (without pitch)
- tarpaulin labelling 70 years of Böckmann
- Lashings
Chassis
-
Chassis
- maintenance-free rubber axle with independant wheel suspension
- self-supporting drawbar 1000mm
-
Tires and wheels
- Tires 13 ", steel rim
- Jockey wheel
Accessories
