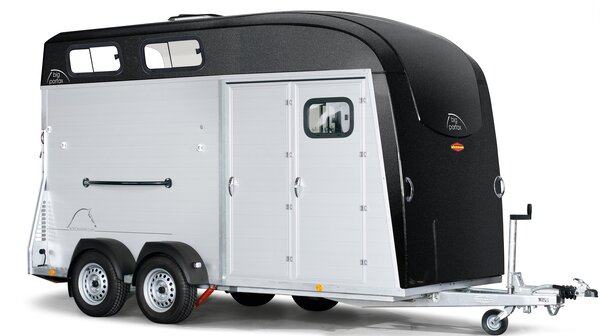

Big Portax WCF (21)

Big Portax WCF (21)
Big Portax WCF (21)
Big Portax WCF (21)
Illustrations may show accessories not included in the standard scope of delivery. Due to constant further development, illustrations and technical data may vary slightly. Errors and changes reserved!

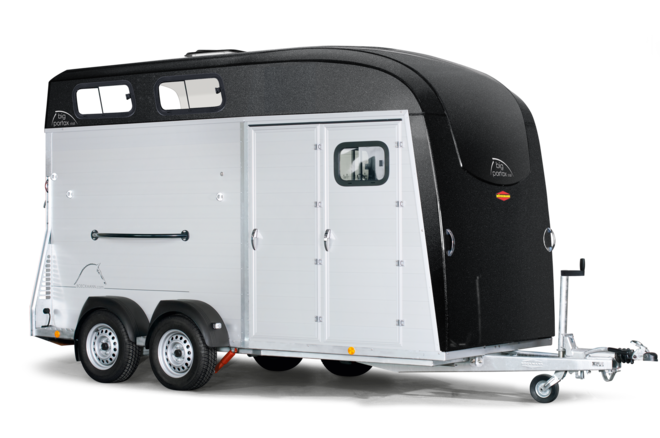

Big Portax WCF (21)
Price on request
Overview
Technical data
Configure Compare

Characteristics

Number of animals
2 Horses
Discipline
English
Material of body
Alu

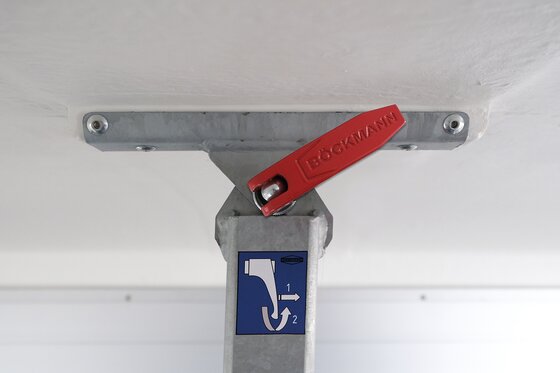

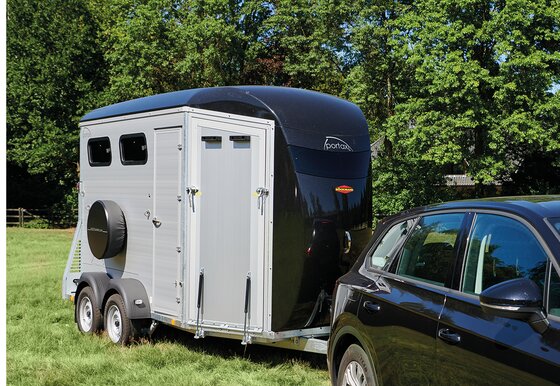

Unique design and generous space configuration: The new Big Portax with an interior width of 1850 mm and an internal height of 2400 mm provides even more space for you and your horses. The standard features include the world-class 'WCFplus' chassis to automotive standard and a large tack room that is separated from the horse compartment by a partition wall with a height of 2100 mm. Now as standard with functional swivelling divider with central post and padding.

Good for your horseLoading and unloading - The Böckmann added values

Böckmann Mehrwerte Pferdeanhänger Ein- und Ausstieg niedrige Verladehöhe

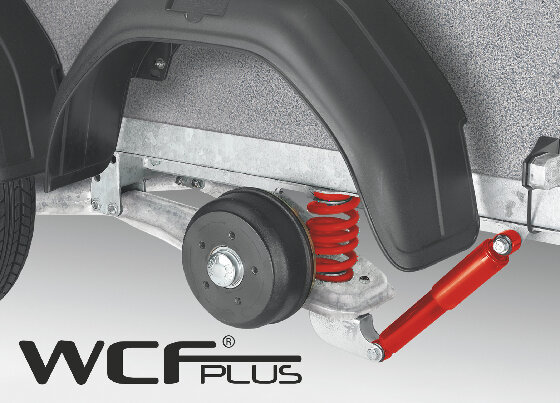

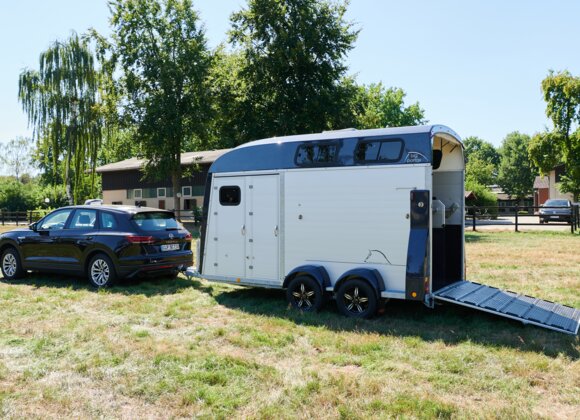

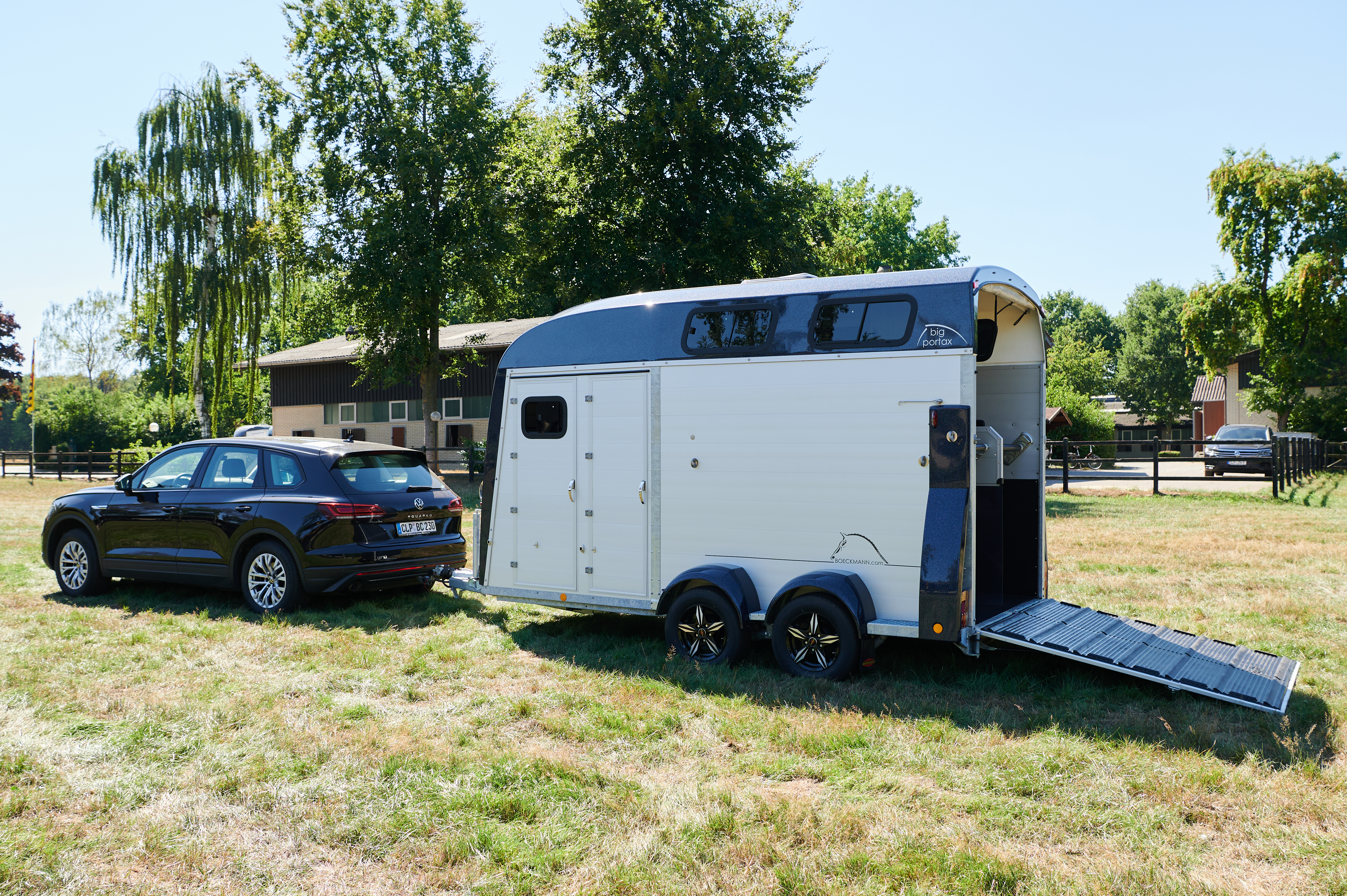

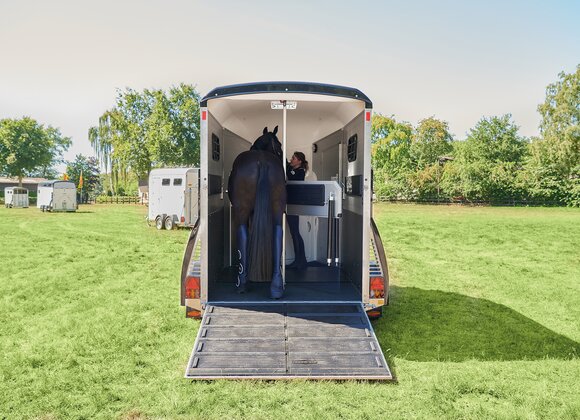

Low loading height

Easier access for the horse as a result of the lowered comfort suspension chassis “CFFplus”.
Böckmann Mehrwerte Pferdeanhänger Ein- und Ausstieg Optimaler Halt

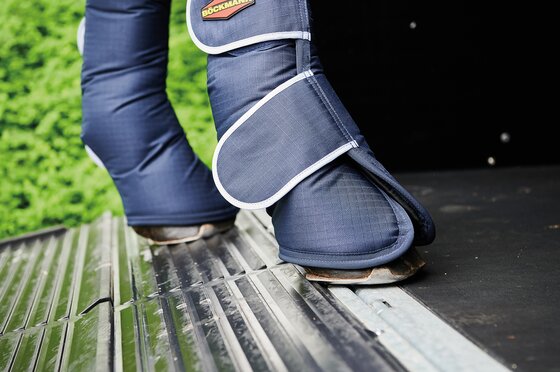

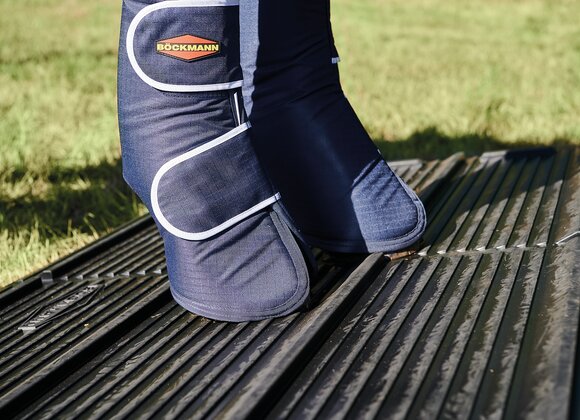

Optimal hold

No slipping because of the special cross step bars and side stops on the rear ramp covering.
Böckmann Mehrwerte Pferdeanhänger Ein- und Ausstieg großer Durchgang

Great passage

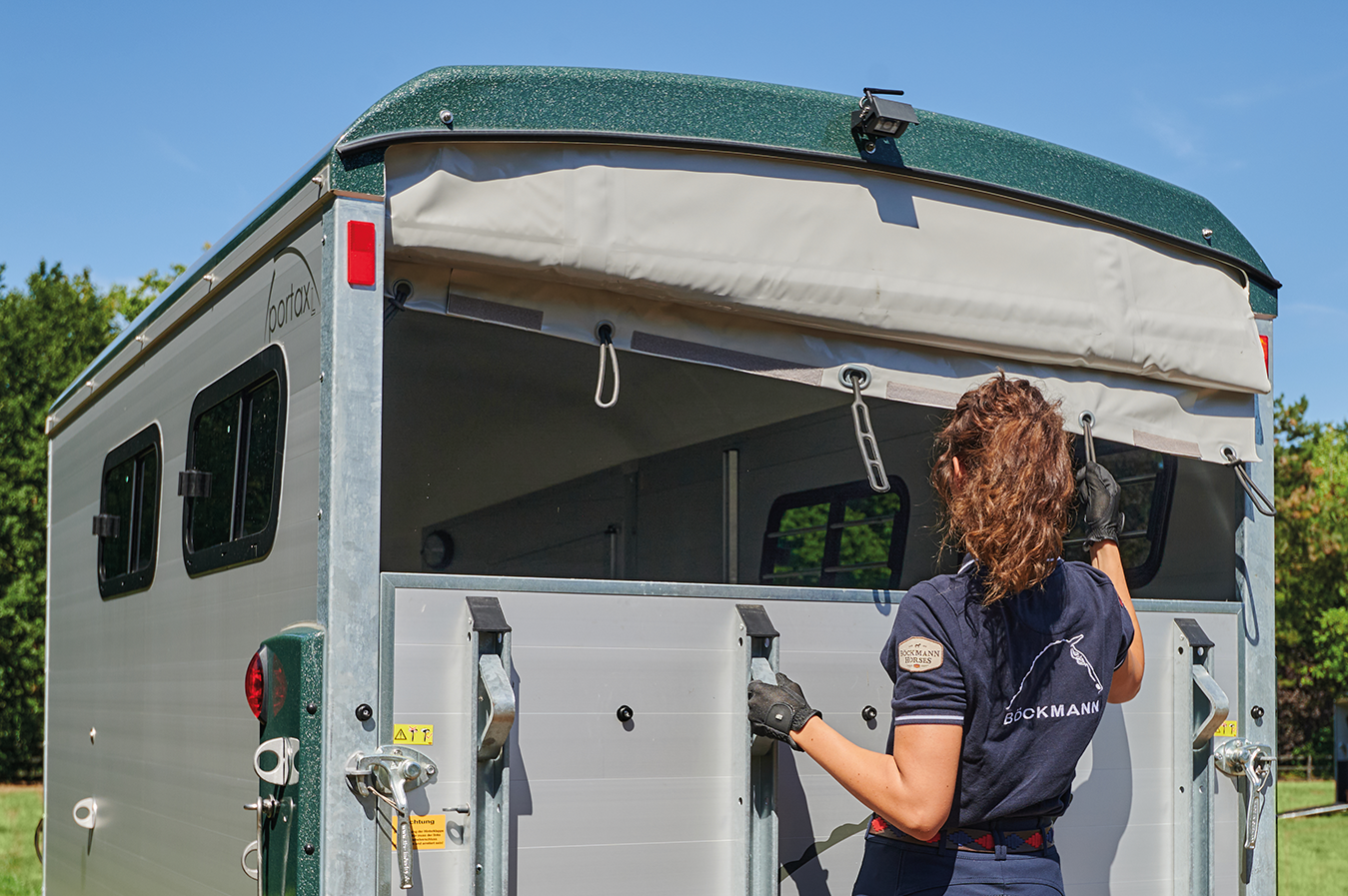

A maximum of space due to narrow cover edges and tarpaulin lift installed on the inside.
Böckmann Mehrwerte Pferdeanhänger Ein- und Ausstieg Innenraum

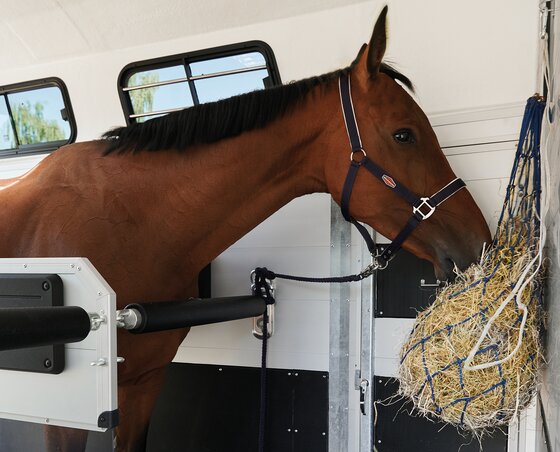

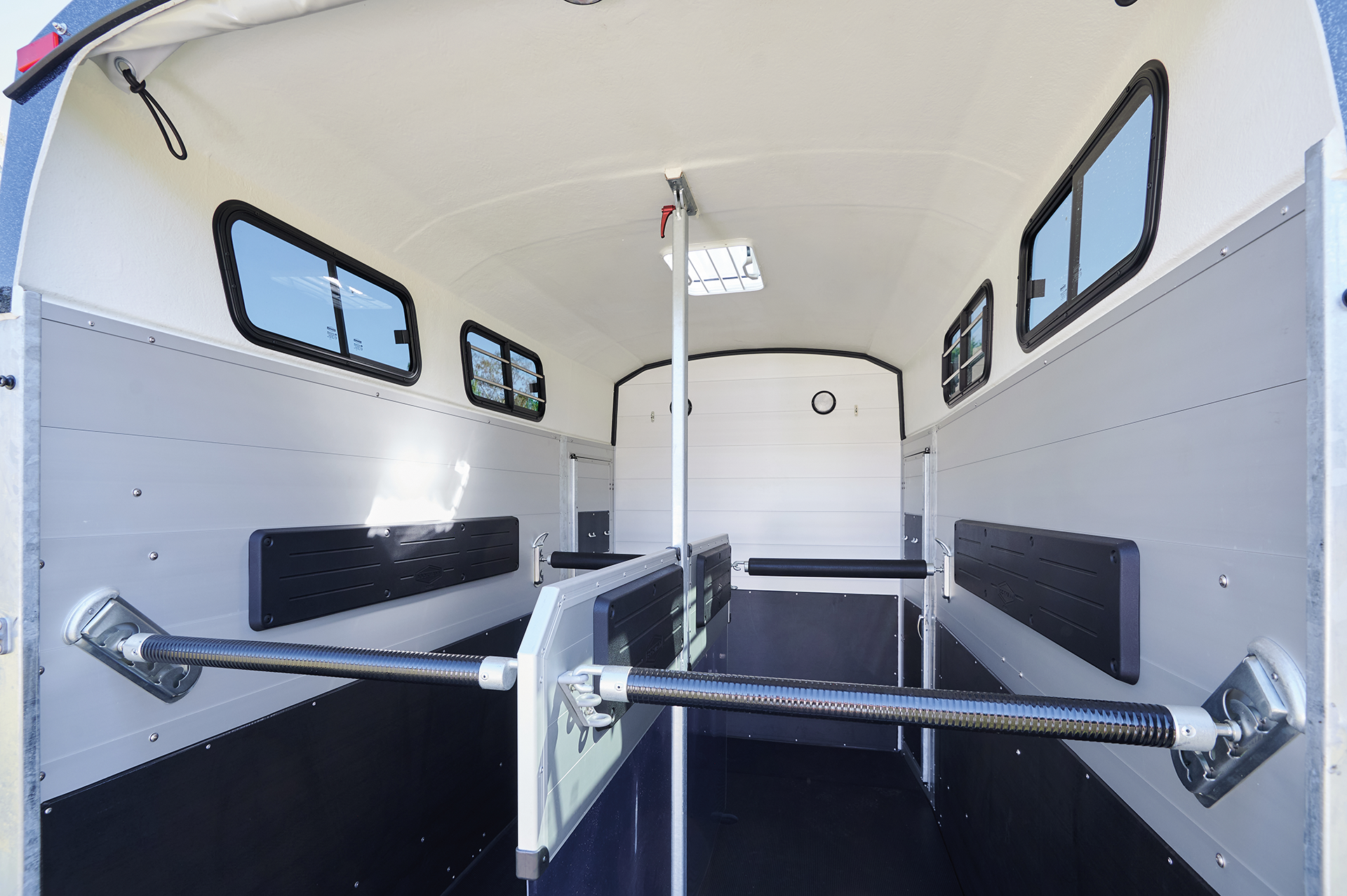

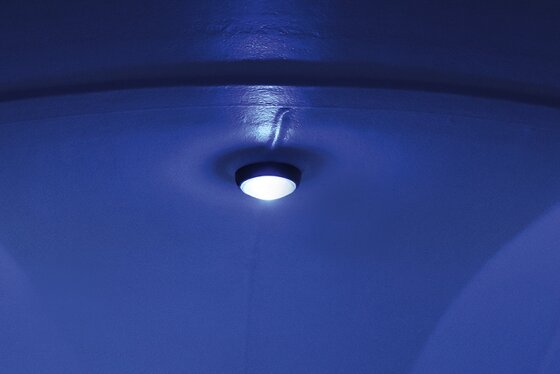

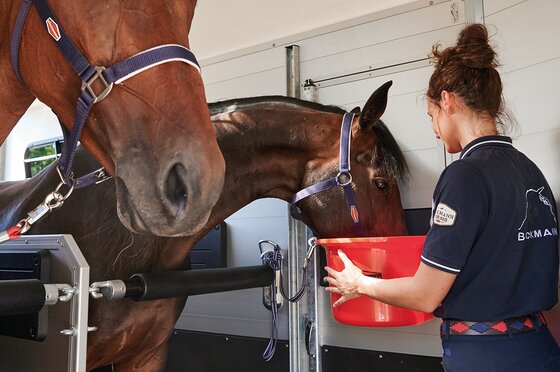

Inviting interior

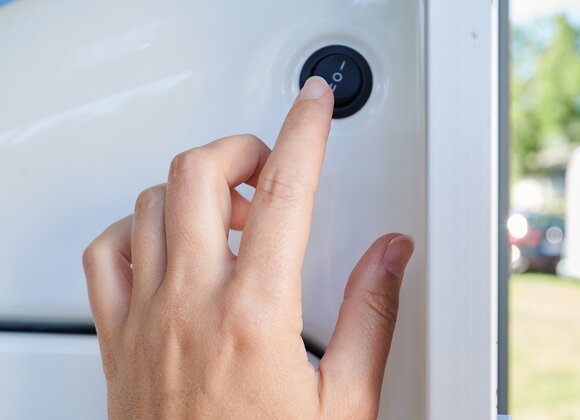

Inviting interior with flat access on a 1800 mm long tail gate, 2 separate feed troughs and 2 interior lamps on the partition wall for sufficient lighting.

Good for your horseMulti Safe System (MSS) - The Böckmann added values

Böckmann Mehrwerte Pferdeanhänger Sicherheit

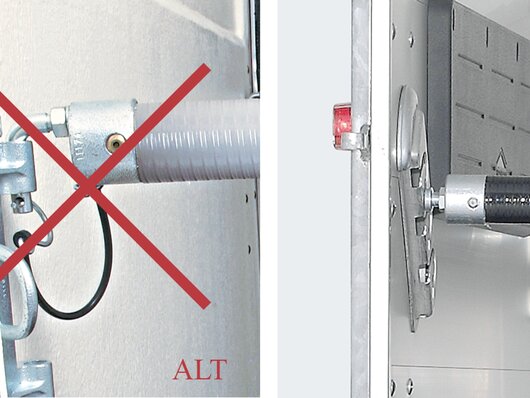

One step saved

One job saved by the functional solution without safety chain – the horse's tail cannot become entangled, for example.
Böckmann Mehrwerte Pferdeanhänger Sicherheit individuelle Anpassung

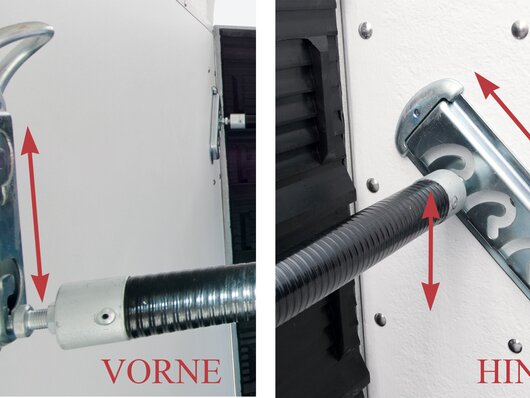

Individual adaptation

Space can be individually adjusted as the height of the front breast bars and height and length of the rear breast bars can be changed.
Böckmann Mehrwerte Pferdeanhänger Sicherheit MSS Multi Safe System

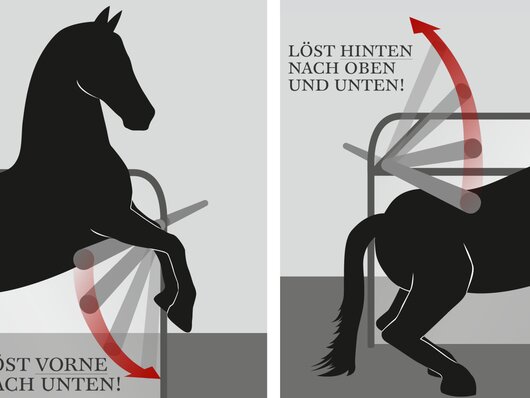

Multi Save System (MSS)

The safety revolution: The multi safe system (MSS), adjustable in height and length, for front and rear. The padded safety stall bar system can be triggered both downwards at the front, and at the rear upwards and downwards.

To play the video, marketing cookies must be accepted:
Renew or change your cookie consent
Böckmann Mehrwerte Pferdeanhänger Sicherheit MSS Multi Safe System
Multi Save System (MSS)
The safety revolution: The multi safe system (MSS), adjustable in height and length, for front and rear. The padded safety stall bar system can be triggered both downwards at the front, and at the rear upwards and downwards.
Böckmann Mehrwerte Pferdeanhänger Sicherheit Schnelle Befreiung
Quick release system

Quick release system as the front breast bars can be opened by lifting them, the rear bars both by lifting and dropping them.

Good for your horseThe safety concept - The Böckmann added values

Böckmann Mehrwerte Pferdeanhänger Sicherheit Eckschutz

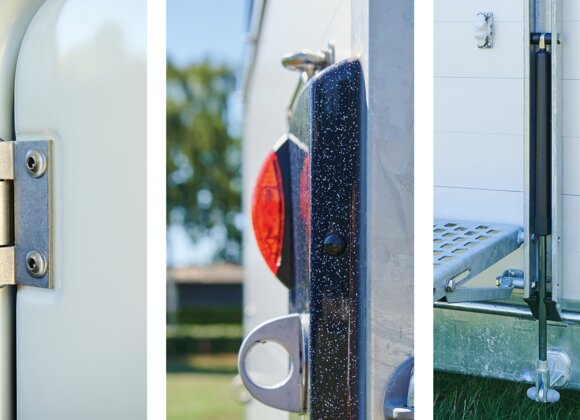

Corner protection

Corner protection by plastic covers on the steel profile struts and at the ends of the rear strut.

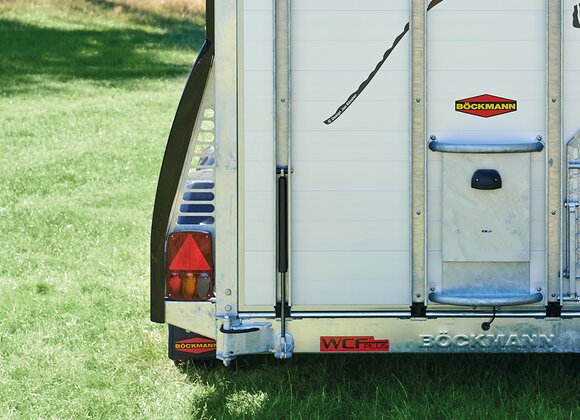

No slip of the hoof

No danger of the horse’s hoofs slipping thanks to the closed rear struts with special perforation.
Böckmann Mehrwerte Pferdeanhänger Sicherheit Strick

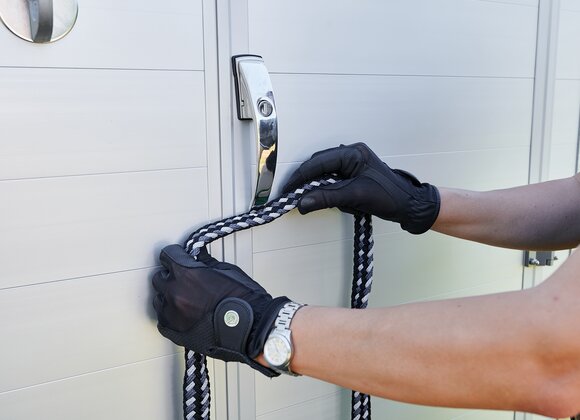

No catching the rope

No entangling of the rope due to flat door handles.
Böckmann Mehrwerte Pferdeanhänger Sicherheit keine scharfen Kanten

No sharp edges

No sharp edges – all hinges and bolt heads have been rounded off.
Böckmann Mehrwerte Pferdeanhänger Sicherheit Komfort

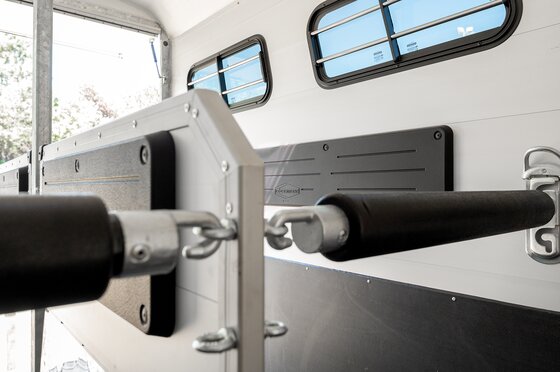

Comfort

More comfort and durability thanks to the additional padding on the stable bars and the side padding (option in some cases).
Böckmann Mehrwerte Pferdeanhänger Sicherheit Kopfschutz

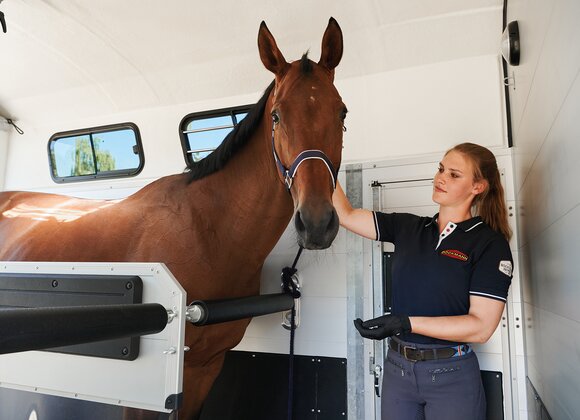

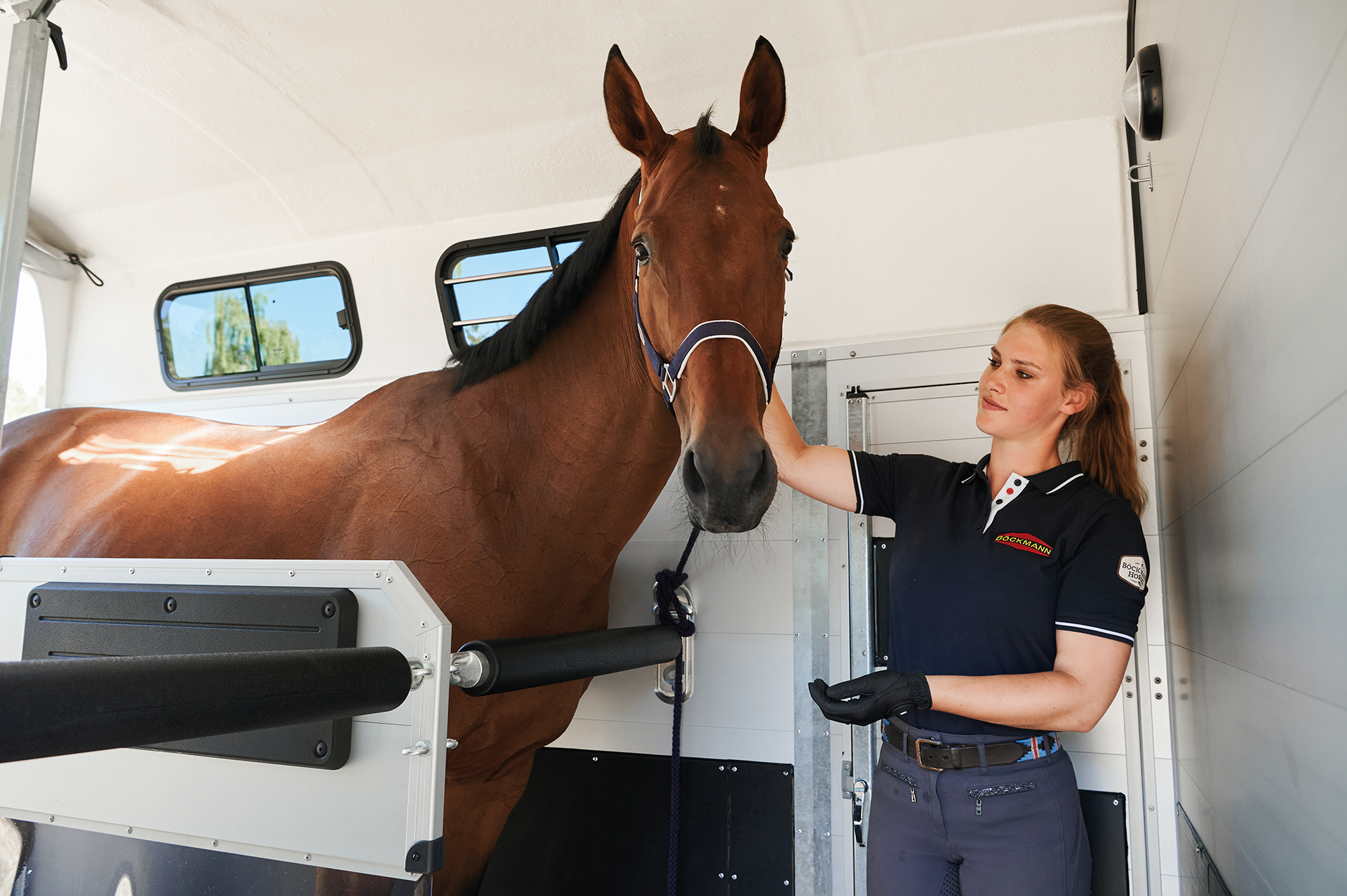

Head protection

Head protection thanks to inset gratings in windows – no protruding edges and corners.

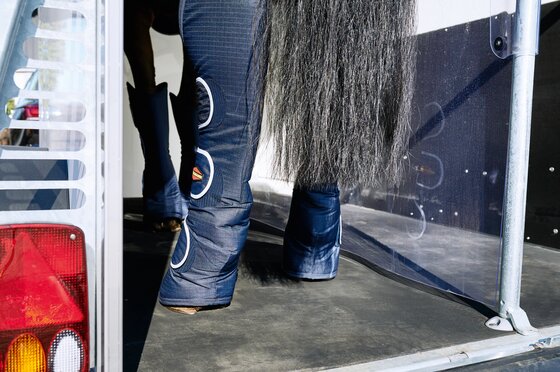

Minimized risk of slipping

Minimal risk of slipping due to closed, narrow tailgate hinge.
Böckmann Mehrwerte Pferdeanhänger Sicherheit Fohlengitter

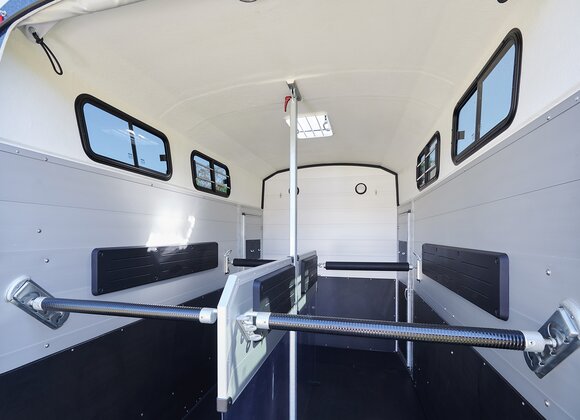

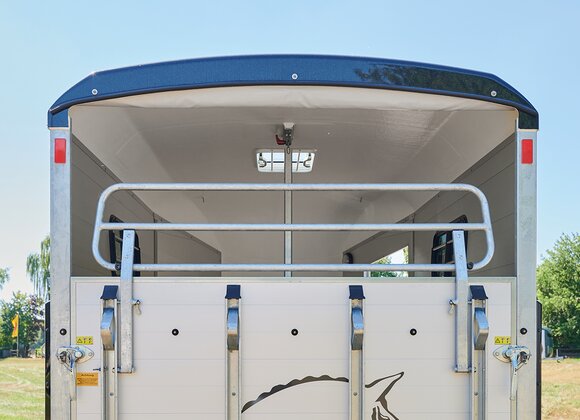

Safe on the move

Foldable foal grille (accessory).
To play the video, marketing cookies must be accepted:
Renew or change your cookie consent
Böckmann Mehrwerte Pferdeanhänger Sicherheit Fohlengitter
Safe on the move
Foldable foal grille (accessory).
Böckmann Mehrwerte Pferdeanhänger Sicherheit Verschlüsse

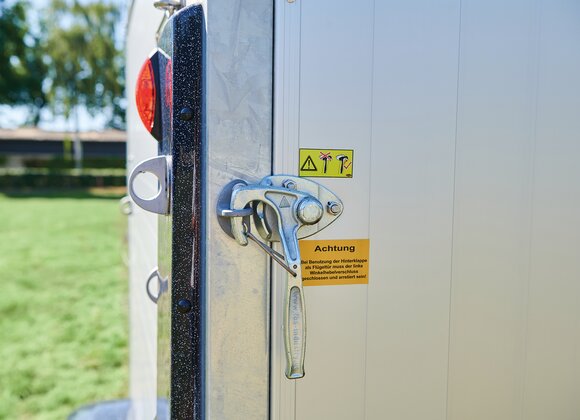

Security

Extra safety as breast bars can be released from the front and rear (panic system front and rear).

Good for your horseThe Böckmann added values

Good for you Handling & tying up options - The Böckmann added values

Böckmann Mehrwerte Handling Flügeltürkombi

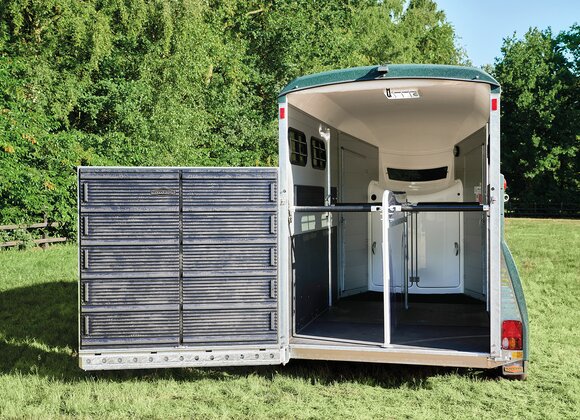

Tail gate / 1-wing door combination

Tail gate/1-wing door combination (accessories).
To play the video, marketing cookies must be accepted:
Renew or change your cookie consent
Böckmann Mehrwerte Handling Flügeltürkombi
Tail gate / 1-wing door combination
Tail gate/1-wing door combination (accessories).
Böckmann Mehrwerte Pferdeanhänger Handling Kotflügel

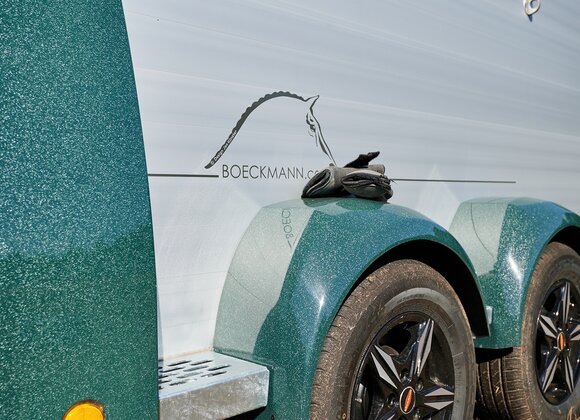

Mudguard as a storage area

Mudguards as storage compartment due to the wide and open, straight form of the impact-resistant plastic mudguards.
Böckmann Mehrwerte Pferdeanhänger Handling Zugang Pferderaum

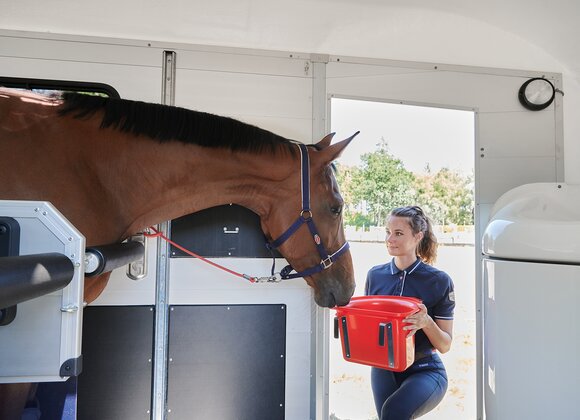

Quick access to the horse room

Quick access to the horse compartment thanks to a large access door and plenty of space once inside.
Böckmann Mehrwerte Pferdeanhänger Handling Platz

Lots of space for loading and unloading

Plenty of space for loading and unloading due to the large clearance between breast bar and tack room in the front area of the trailer.
Böckmann Mehrwerte Pferdeanhänger Anbindemöglichkeiten Hinterklappe

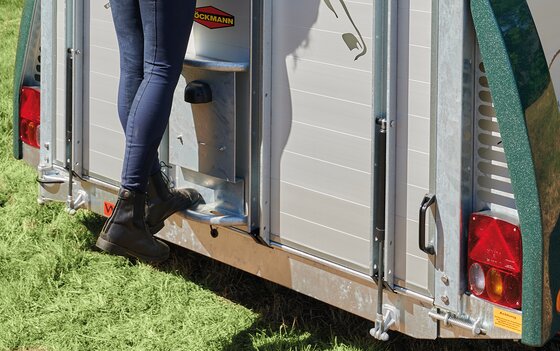

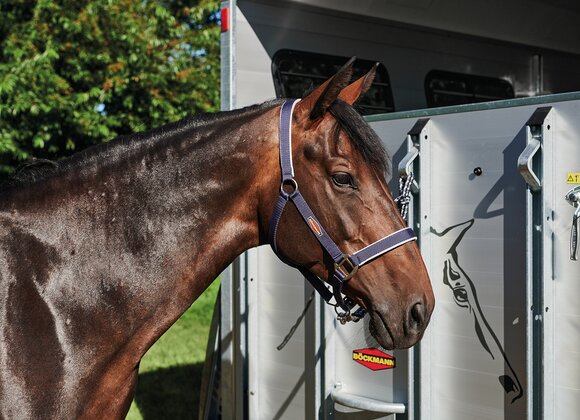

Tying up option on the tailgate

On the tail gate with 4 solid support bars – e.g. at events where trailers are parked close together.
Böckmann Mehrwerte Pferdeanhänger Anbindemöglichkeiten Seitenwand

Tying up option on the side wall

on the side wall by means of 4 Multi Safe System (MSS) fittings.
Böckmann Mehrwerte Pferdeanhänger Anbindemöglichkeiten Innenraum

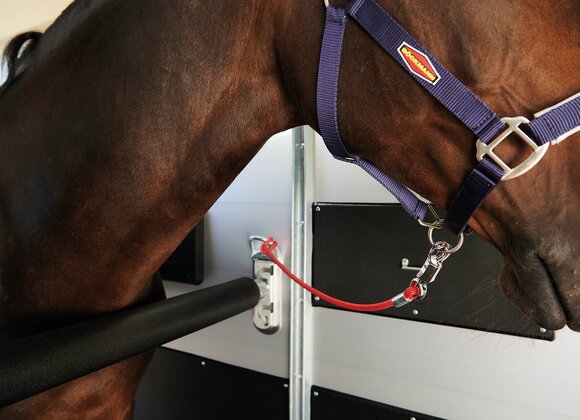

Tying up option in the interior

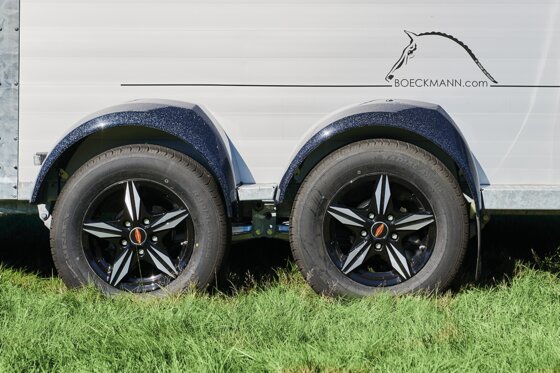

More driving safety thanks to generously-dimensioned quality tyres.
Böckmann Mehrwerte Pferdeanhänger Anbindemöglichkeiten Seitenwand

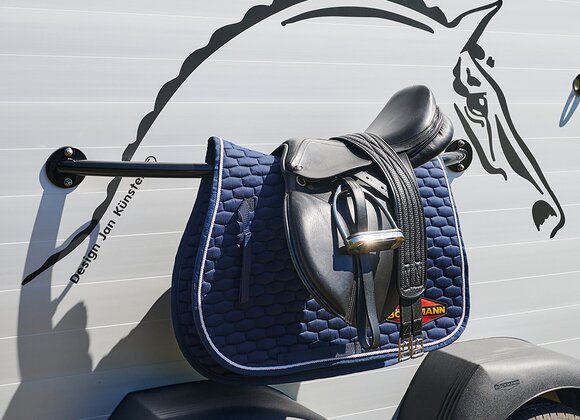

Tying up option on the side wall

On the side wall due to a saddle storage bar (accessory).

Good for you Hitching and unhitching - The Böckmann added values

Böckmann Mehrwerte Pferdeanhänger An- und Abkuppeln Gusskupplung

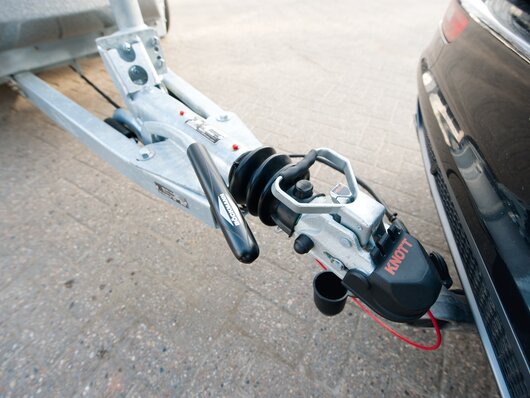

Start-up and theft protection

Drive-off protection with soft-top drive-off protection and rubberised, ergonomic, heart-shaped handle.
Böckmann Mehrwerte Pferdeanhänger An- und Abkuppeln Rangieren

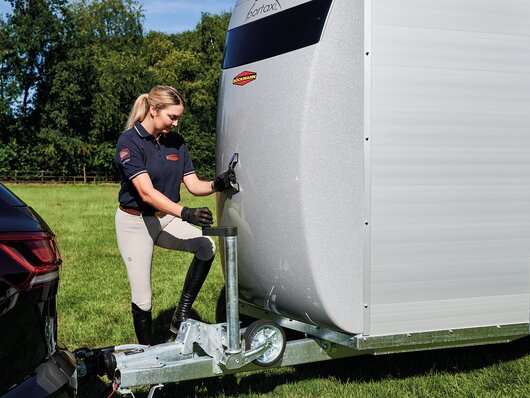

Convenient maneuvering

Easy to move around due to a tall and hard wearing automatic jockey wheel and perfectly positioned shunting handles.

To play the video, marketing cookies must be accepted:
Renew or change your cookie consent
Böckmann Mehrwerte Pferdeanhänger An- und Abkuppeln Rangieren
Convenient maneuvering
Easy to move around due to a tall and hard wearing automatic jockey wheel and perfectly positioned shunting handles.
Böckmann Mehrwerte Pferdeanhänger An- und Abkuppeln Stützrad

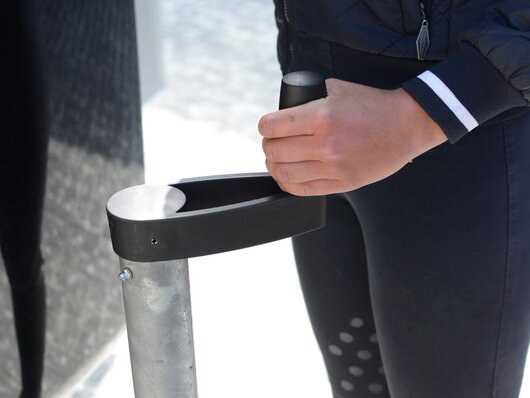

Simple operation of the support wheel

via an easy to use winch.
Böckmann Mehrwerte Pferdeanhänger An- und Abkuppeln Kofferraumzugang

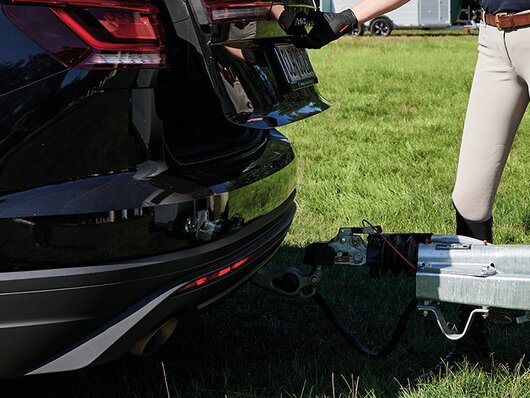

Unimpeded trunk access

Easy access to your boot thanks to the flat, heart-shaped handle and flat brake handle – even when hitched to the car.

Good for you Locking systems - The Böckmann added values

Böckmann Mehrwerte Pferdeanhänger Schließsystem Kupplung

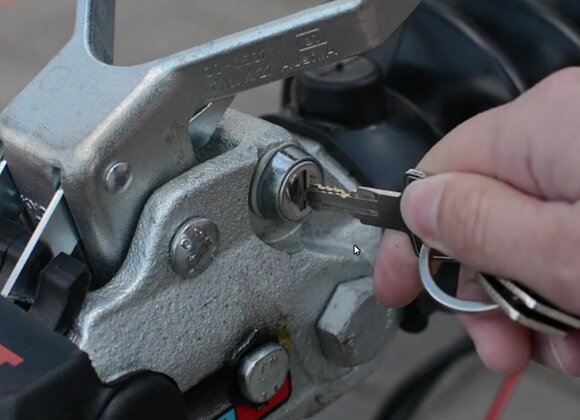

Lockable cast coupling

Operated with the door key.
Böckmann Mehrwerte Pferdeanhänger Schließsystem Schlüssel

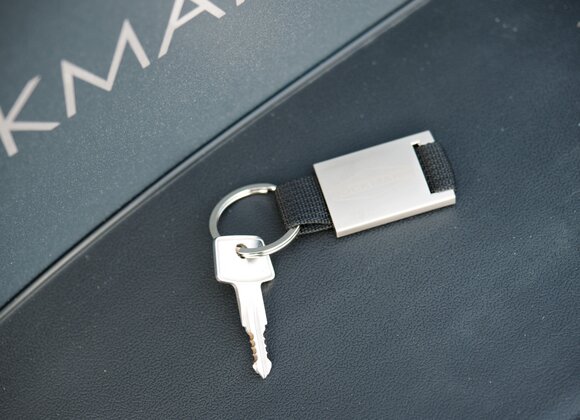

A key

One key for all locks.
To play the video, marketing cookies must be accepted:
Renew or change your cookie consent
Böckmann Mehrwerte Pferdeanhänger Schließsystem Schlüssel
A key
One key for all locks.
Böckmann Mehrwerte Pferdeanhänger Schließsystem Optimales Verschließen

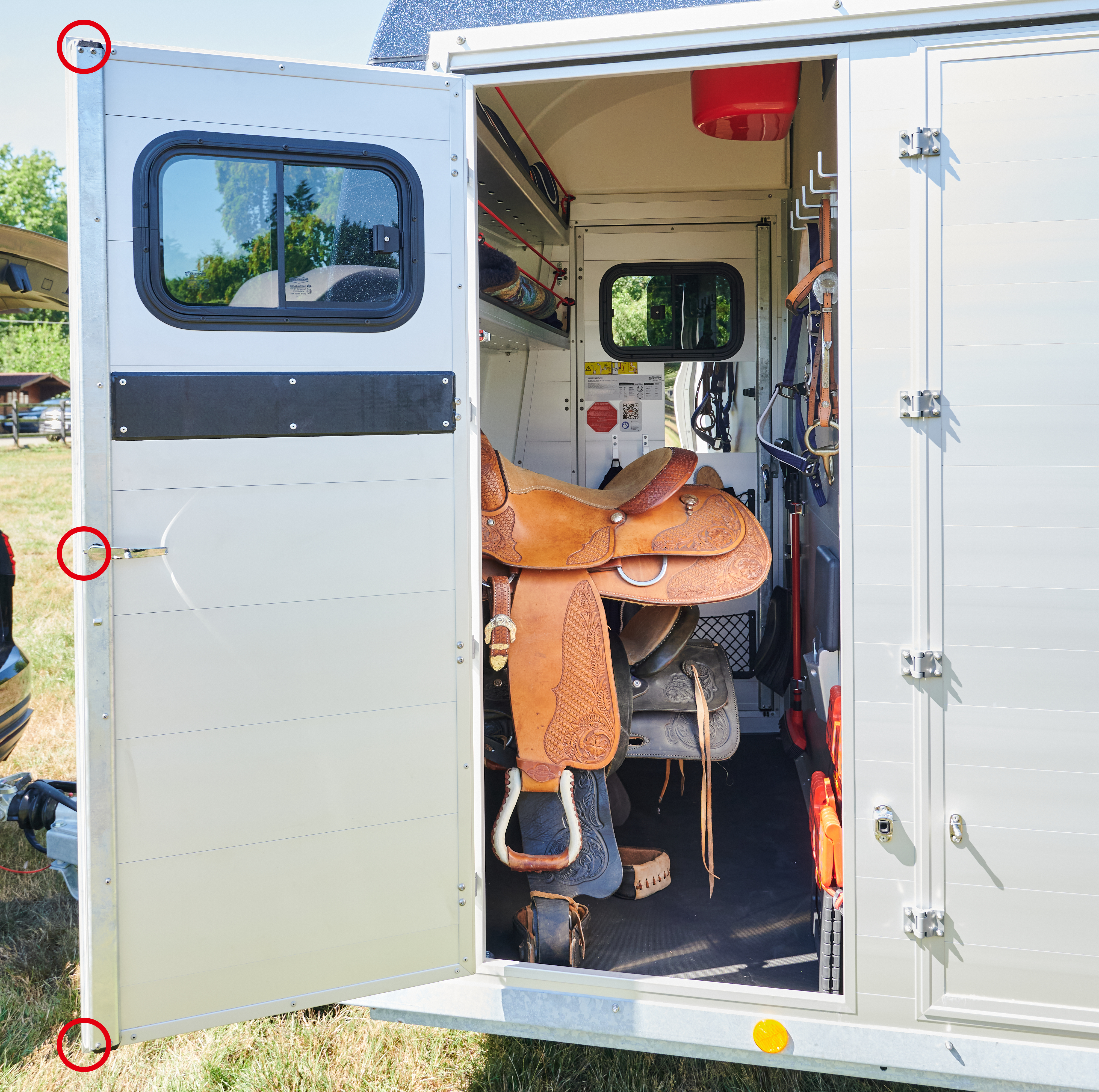

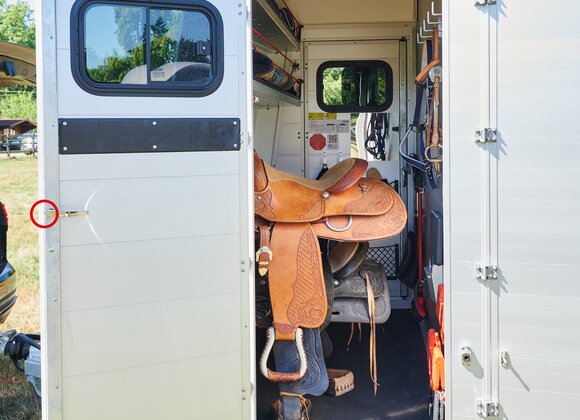

Optimal closing

Perfect closure due to 3-point door lock and rubber seal.
Böckmann Mehrwerte Pferdeanhänger Schließsystem Türfeststeller

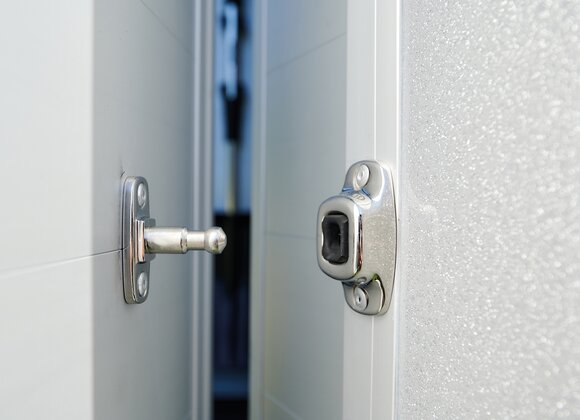

Protection against damage

Protection against damage by locking the entrance door.

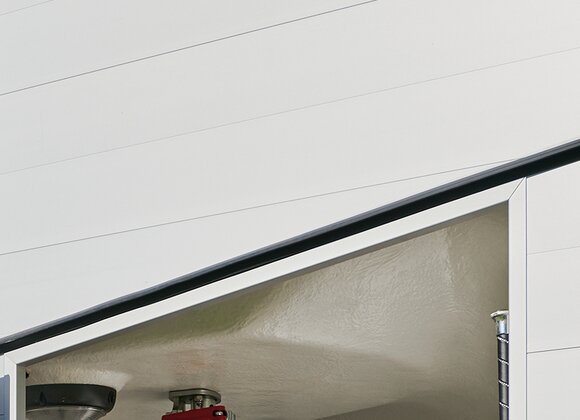

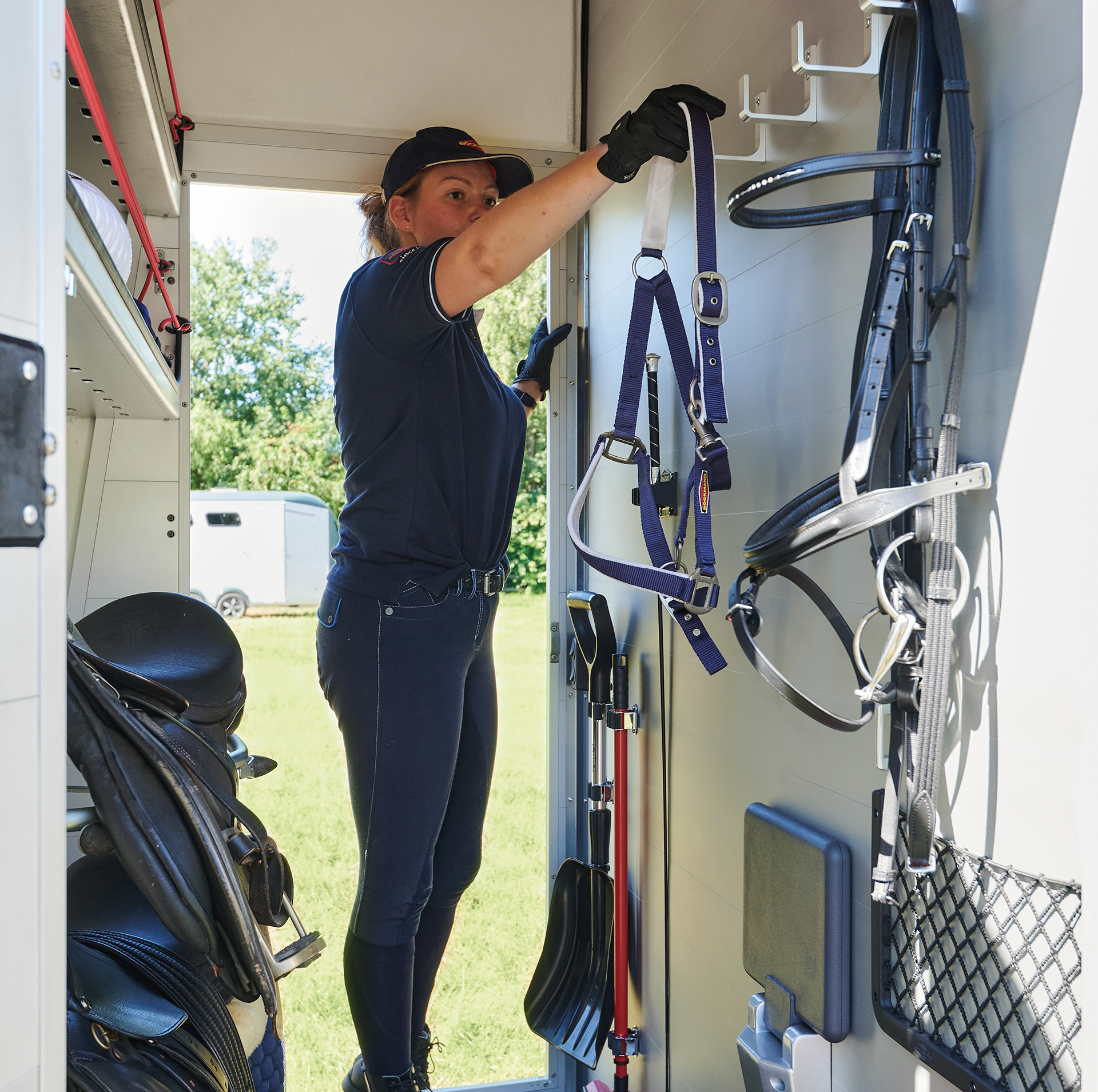

Tack lockers and tack rooms

Böckmann Mehrwerte Pferdeanhänger Sattelkammernkonzept

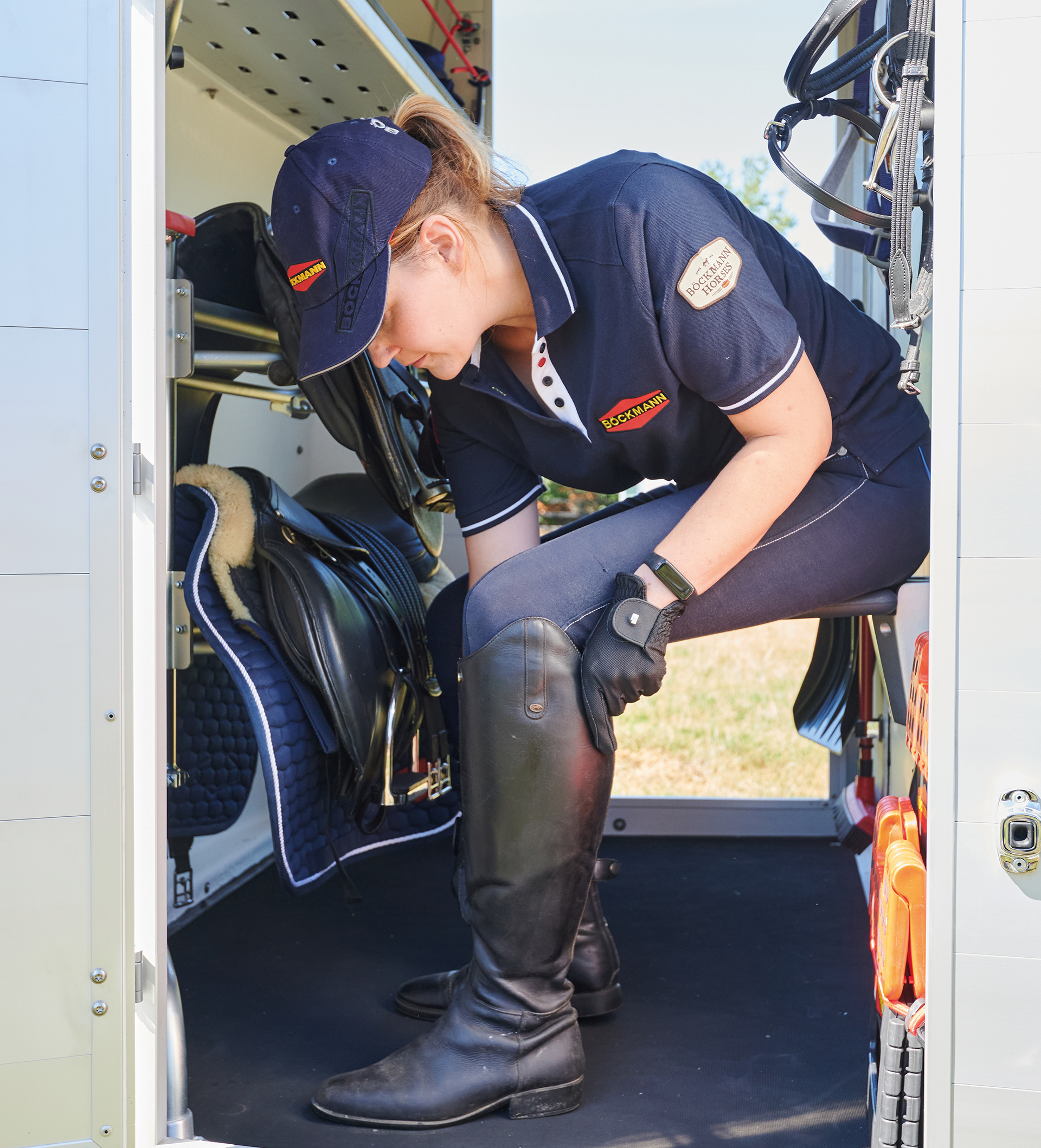

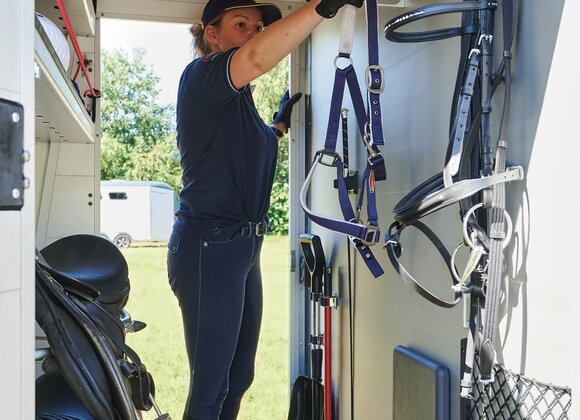

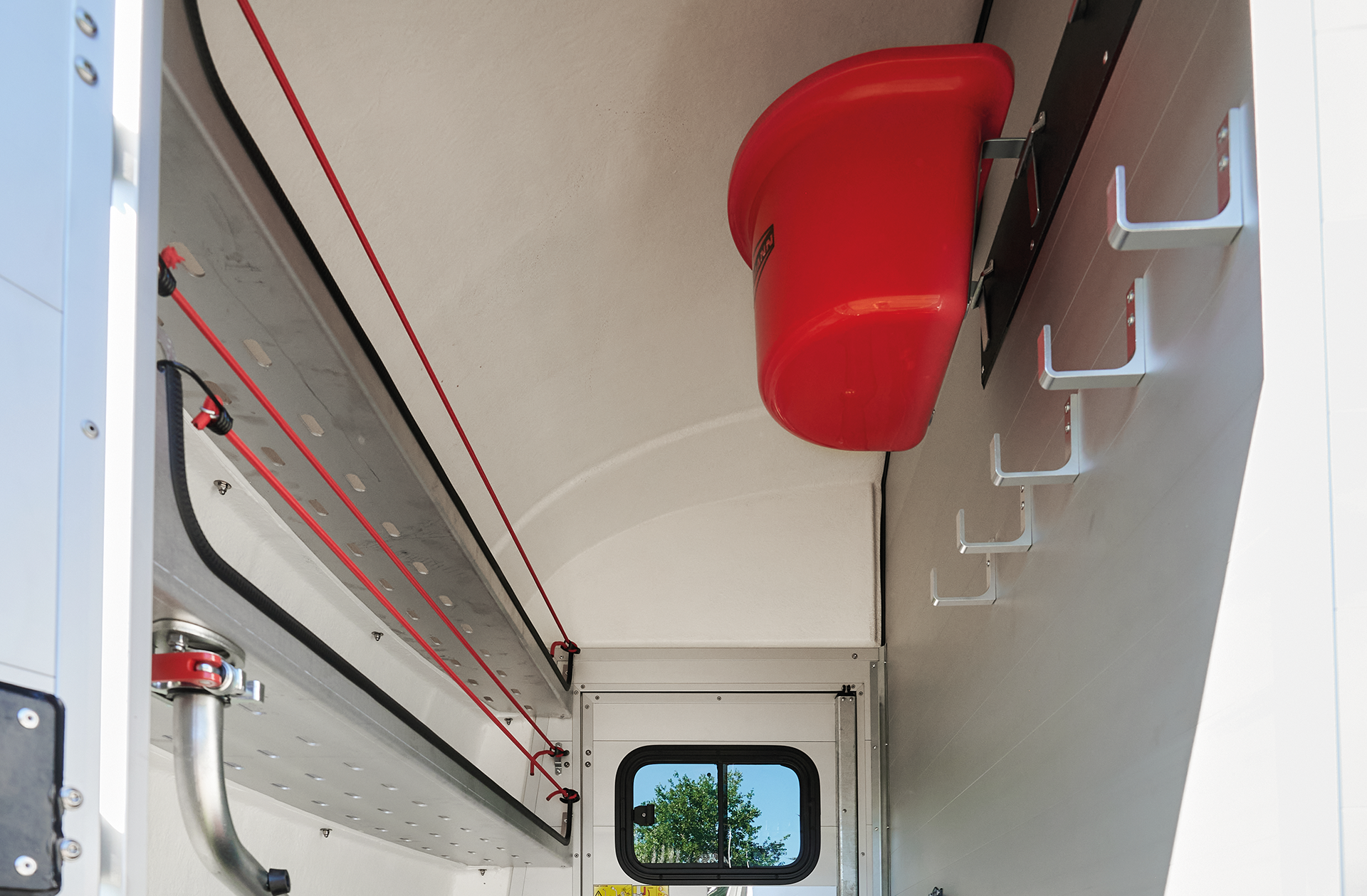

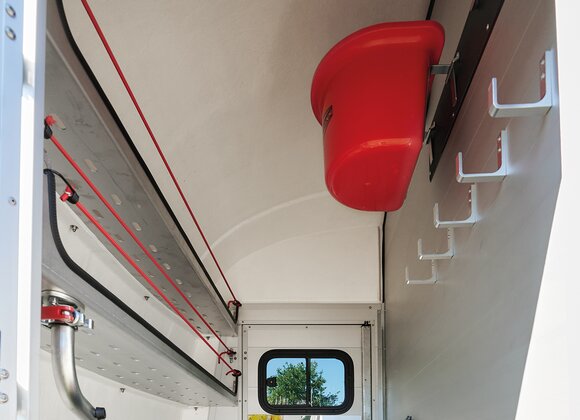

Tack rooms

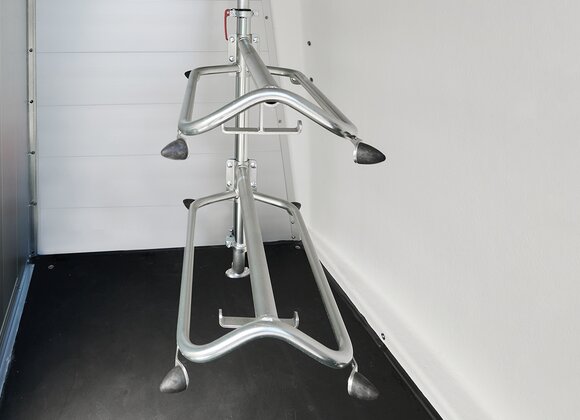

Spacious tack rooms with sufficient storage options. Also available as a Western versions.

Böckmann Mehrwerte Pferdeanhänger Sattelkammernkonzept

Maintains its valueThe Böckmann added values

Technical data

Base
Number of animals Number of animals
2 Horses
Material of body Material of body
Alu
Weight
Total weight Total weight
2700 kg
Payload Payload
1370 kg
External dimensions
Total length Total length
5535 mm
Total width Total width
2410 mm
Total height Total height
2935 mm
Internal dimensions
Interior length Interior length
4150 mm
Interior width Interior width
1855 mm
Interior height Interior height
2400 mm

Standard features

Body

Internal Space

Accessories

Body

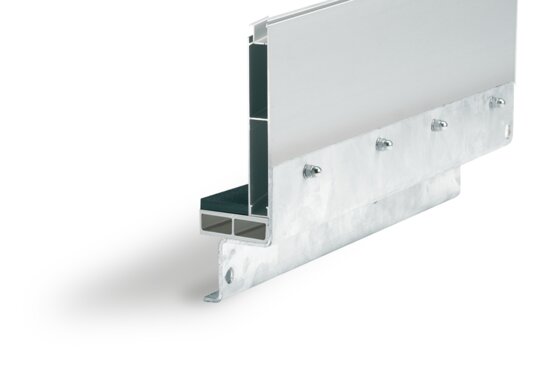

Chassis

Other
