Characteristics
Number of animals
2 Horses
Discipline
English
Material of body
Polyester

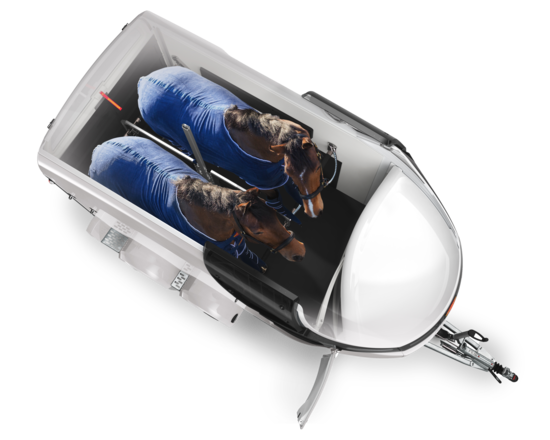

Unique design, innovative lighting concept and plenty of space. The Neo SKA offers plenty of space for horse and rider. In addition, the unique design with its special colour selection and combination, as well as the innovative lighting concept is a particular attraction. Just a real eye-catcher. The vehicle has an exclusive equipment, such as LED interior light, switchable in white and blue, a spacious saddle box and alloy wheels. A special highlight is the variable centre post partition wall, which provides more freedom of movement.
Revolutinary.
Further highlights
Driving Comfort
Good for your horse
Technical data
Base
Number of animals
2 Horses
Material of body
Polyester
Weight
Total weight
2700 kg
Payload
1490 kg
External dimensions
Total length
5035 mm
Total width
2320 mm
Total height
2780 mm
Internal dimensions
Interior length
3780 mm
Interior width
1755 mm
Interior height
2350 mm
Standard features
Body
- Body color
- Color of polyester roof
- Color of polyester front bow
- Mudguards colour
- Color rear ramp
- Color of polyester cover
-
Canvas Lift / polyester flap
- black canvas lift with integrated net and forced ventilation
-
Side walls
- SES
- entrance door on right side to horse compartment
- saddle box with door outside left and with additional access inside
- rubber mat with integrated security treads on rear ramp
-
Body general
- wood-free full polyester body, side windows with end-to-end glazing
- Attachments
-
Floor
- Floor
- aluminium floor
- rubber flooring, glued + sealed
- Ventilation
Chassis
- Chassis
-
Tires and wheels
- Tyres
- Böckmann Premium aluminum rims 14"
- Jockey wheel
-
Weights
- 2,7 t total weight
-
Coupling
- Coupling
Internal Space
-
Partition wall systems
- divider with central post
- centre post partition (rear and front swivelling)
- Comfort and safety
-
Lighting
- 2 LED interior lights (horse compartment)
- interior LED light in saddle box
-

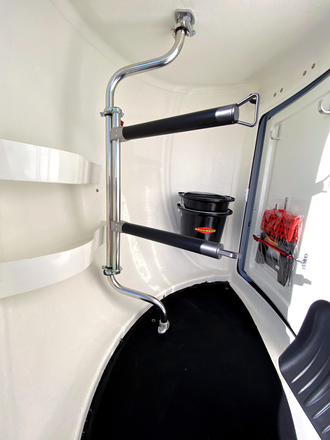

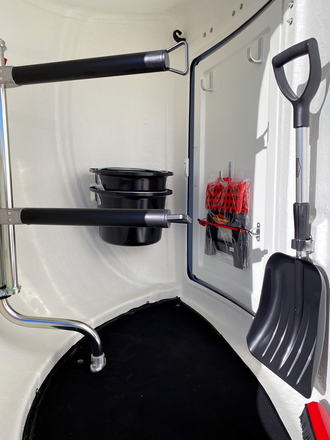

Saddle box / room
- SES
- 2 saddle racks
- 7 snaffle hooks, 1 holder for whip, 1 net
- 2 storage shelfs in front bow
- broom with telescopic handle
- saddle box inside out of fiberglass
- saddle box inside out of fiberglass
- plastic shovel
-
further interior
- SES
- 2 feeding troughs
- stool for access
Accessories
Body
-
Body color
- color of the side walls: anthracite-metallic
- color of the sides: dark blue-metallic
- color of the sides: brown-metallic
- color of the sides: flame red
- color of the sides: yellow
- color of the sides: yellow-green
- color of the sides: green-metallic
- color of the sides: Magenta
- color of the sides: red-metallic
- color of the sides: royal blue
- color of the sides: slate grey
- color of the sides: silver grey
- color of the sides: deep orange
- color of the sides: white
-
Color of polyester roof
- color of polyester roof: anthracite-metallic
- color of polyester roof: dark blue-metallic
- color of polyester roof: brown-metallic
- color of polyester roof: flame red
- color of polyester roof: yellow
- color of polyester roof: yellow-green
- color of polyester roof: green-metallic
- color of polyester roof: magenta
- color of polyester roof: red-metallic
- color of polyester roof: royal blue
- color of polyester roof: slate grey
- color of polyester roof: silver grey
- color of polyester roof: deep orange
- color of polyester roof: white
-
Color of polyester front bow
- color of polyester front bow: anthracite-metallic
- color of polyester front bow: dark blue-metallic
- color of polyester front bow: brown-metallic
- color of polyester front bow: flame red
- color of polyester front bow: yellow
- color of polyester front bow: yellow-green
- color of polyester front bow: green-metallic
- color of polyester front bow: magenta
- color of polyester front bow: red-metallic
- color of polyester front bow: royal blue
- color of polyester front bow: slate grey
- color of polyester front bow: silver grey
- color of polyester front bow: deep orange
- color of polyester front bow: white
-
Mudguards colour
- color of polyester fenders: anthracite-metallic
- color of polyester fenders: dark blue-metallic
- color of polyester fenders: brown-metallic
- color of polyester fenders: flame red
- color of polyester fenders: yellow
- color of polyester fenders: yellow-green
- color of polyester fenders: green-metallic
- color of polyester fenders: magenta
- color of polyester fenders: red-metallic
- color of polyester fenders: royal blue
- color of polyester fenders: slate grey
- color of polyester fenders: silver grey
- color of polyester fenders: deep orange
- color of polyester fenders: white
-
Color rear ramp
- color of rear ramp: anthracite-metallic
- color of rear ramp: dark blue-metallic
- color of rear ramp: brown-metallic
- color of rear ramp: flame red
- color of rear ramp: yellow
- color of rear ramp: yellow-green
- color of rear ramp: green-metallic
- color of rear ramp: Magenta
- color of rear ramp: red-metallic
- color of rear ramp: royal blue
- color of rear ramp: slate grey
- color of rear ramp: silver grey
- color of rear ramp: deep orange
- color of rear ramp: white
-
Color of polyester cover
- color of polyester light box cover: anthracite-metallic
- color of polyester light box cover: dark blue-metallic
- color of polyester light box cover: brown-metallic
- color of polyester light box cover: flame red
- color of polyester light box cover: yellow
- color of polyester light box cover: yellow-green
- color of polyester light box cover: green-metallic
- color of polyester light box cover: Magenta
- color of polyester light box cover: red-metallic
- color of polyester light box cover: royal blue
- color of polyester light box cover: slate grey
- color of polyester light box cover: silver grey
- color of polyester light box cover: deep orange
- color of polyester light box cover: white
-
Canvas Lift / polyester flap
- polyester-flap above rear ramp (lockable) anthracite-metallic
- polyester-flap above rear ramp (lockable) dark blue-metallic
- polyester-flap above rear ramp (lockable) brown-metallic
- polyester-flap above rear ramp (lockable) flame red
- polyester-flap above rear ramp (lockable) yellow
- polyester-flap above rear ramp (lockable) yellow-green
- polyester-flap above rear ramp (lockable) green-metallic
- polyester-flap above rear ramp (lockable) magenta
- polyester-flap above rear ramp (lockable) red-metallic
- polyester-flap above rear ramp (lockable) royal blue
- polyester-flap above rear ramp (lockable) slate grey
- polyester-flap above rear ramp (lockable) silver grey
- polyester-flap above rear ramp (lockable) silver-metallic
- polyester-flap above rear ramp (lockable) white
- polyester-flap above rear ramp (lockable) deep orange
-
Decors
- Decor, large, black
- Decor Andalusian (847x900 mm) anthracite
- Decor Arabian (1033x900 mm) anthracite
- Decor Art Line anthracite
- Decor dressage (642x960 mm) anthracite
- Decor Friesian (1022x900 mm) anthracite
- Decor gaited horse (926x900 mm) anthracite
- Decor harnessed horses (715x960 mm) anthracite
- Decor Military (861x900 mm) anthracite
- Decor horse head (1560x724 mm) anthracite
- Decor Jumper (1278x900 mm) anthracite
- Decor mare with foal (1190x900 mm) anthracite
- Greyscale competition (909 x 900 mm)
- Decor competition (909x900 mm) anthracite
- Decor Western (1144x900 mm) anthracite
- Decor, large, multicoloured
- Multicoloured gallop (1180 x 950 mm)
- Multicoloured piaffe (1000 x 950 mm)
- Multicoloured Jumper (530 x 950 mm)
- Multicoloured strong trot (1240 x 950 mm)
- Multicoloured competition (909 x 900 mm)
- Decor, large, silver
- Decor Andalusian (847x900 mm) silver
- Decor Arabian (1033x900 mm) silver
- Decor Art Line silver
- Decor dressage (642x960 mm) silver
- Decor Friesian (1022x900 mm) silver
- Decor gaited horse (926x900 mm) silver
- Decor harnessed horses (715x960 mm) silver
- Decor Military (861x900 mm) silver
- Decor horse head (1560x724 mm) silver
- Decor Jumper (1278x900 mm) silver
- Decor mare with foal (1196 x 900) silver
- Decor competition (909x900 mm) silver
- Decor Western (1144x900 mm) silver
- Decor, small, black
- Decor Andalusian (311x330 mm) anthracite
- Decor Arabian (368x320 mm) anthracite
- Decor dressage (290x434 mm) anthracite
- Decor Friesian (369x325 mm) anthracite
- Decor gaited horse (332x322 mm) anthracite
- Decor harnessed horses (320x429 mm) anthracite
- Decor Military (327x342 mm) anthracite
- Decor horse head (532x247 mm) anthracite
- Greyscale competition (323 x 320 mm)
- Decor Western (390x306 mm) anthracite
- Decor, small, multicoloured
- Multicoloured gallop (430 x 330 mm)
- Multicoloured piaffe (370 x 330 mm)
- Multicoloured Jumper (250 x 430 mm)
- Multicoloured strong trot (470 x 330 mm)
- Multicoloured competition (323 x 320 mm)
- Decor, small, silver
- Decor Andalusian (311x330 mm) silver
- Decor dressage (290x434 mm) silver
- Decor Friesian (369x325 mm) silver
- Decor gaited horse (332x322 mm) silver
- Decor harnessed horses (320x429 mm) silver
- Decor Military (327x342 mm) silver
- Decor horse head (532x247 mm) silver
- Decor Jumper (423x308 mm) silver
- Decor mare with foal (426x320 mm) silver
- Decor competition (323x320 mm) silver
- Decor Western (390x306 mm) silver
- Decor, XL, black
-
Side walls
- Selection rear ramp / door combination
- Attachments
Chassis
-
Tires and wheels
- Selection summer tyres / optional winter tyres
- winter tires (per wheel)
-
Coupling
- Coupling
- Selection of coupling
Internal Space
-
Partition wall systems
- divider with central post
- transparent PVC divider with upper section (withers height 155 cm)
- transparent PVC divider with upper section (withers height 165 cm)
- transparent PVC divider with upper section (withers height 180 cm)
- Selection head divider
- head divider aluminium on middle post partition
- head divider "aluminium"
- head divider lattice on middle post partition
- head divider "lattice"
- Selection partition systems
- foldable foal grill
- additional floor mount for partition
-
further interior
- Selection interior
- full-width butt bar, padded
- full-width chest bar, padded
Other
-
Multimedia
- video monitoring device
- cables and holders for video surveillance
