Characteristics
Number of animals
2 Horses
Discipline
Carriage
Material of body
Plywood

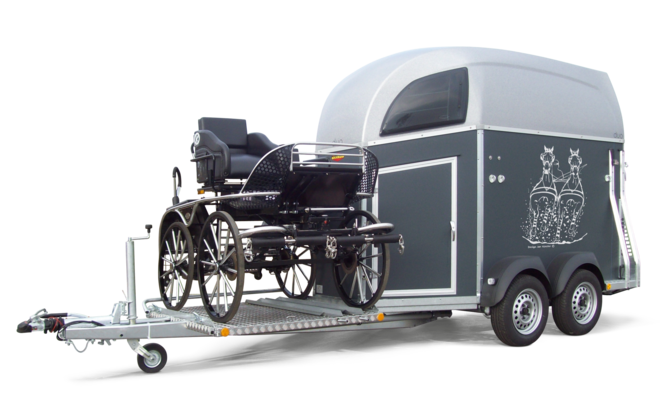

Transporting a carriage up to 300 kg is also no problem with a Böckmann horse trailer - The Duo Kutsche C includes all the advantages of the Duo C and also provides space for your carriages. The carriage fixtures with solid corrugated aluminium plate and loading rails make loading and unloading of the carriage easy and convenient. The trailer can also be used without a carriage. With the intelligent two-section divider wall system with side adjustment the horses can be positioned further towards the front, which also shifts the centre of gravity of the trailer.
Good for your horseLoading and unloading - The Böckmann added values
Good for your horseMulti Safe System (MSS) - The Böckmann added values
Good for your horseThe safety concept - The Böckmann added values
Good for your horseThe Böckmann added values
Good for you Handling & tying up options - The Böckmann added values
Good for you Hitching and unhitching - The Böckmann added values
Good for you Locking systems - The Böckmann added values
Tack lockers and tack rooms
Maintains its valueThe Böckmann added values
Technical data
Base
Number of animals
2 Horses
Material of body
Plywood
Weight
Total weight
2700 kg
Payload
1660 kg
External dimensions
Gesamtlänge
5885 mm
Gesamtbreite
2200 mm
Gesamthöhe
2730 mm
Internal dimensions
Interior length
3050 mm
Interior width
1650 mm
Interior height
2300 mm
Standard features
Body
-
Body color
- sidewalls anthracite, 1500 mm
-
Color of polyester roof
- colour of polyester roof: silver-metallic
-
Mudguards colour
- single black mudguard, plastic
-
Canvas Lift / polyester flap
- canvas lift with integrated net
-
Decors
- decoration stripes "Künster"
-
Side walls
- plywood side walls 1500 mm high
- rubber safety mat with integ.security treads+ side stops on rear ramp
- entrance door right
-
Attachments
- rear braces with grid
- 4 hinges at rear ramp
- 2 side braces
- licence plate bracket with 2 outer steps
- lifting mechanism for rear ramp
- reversing light (with 13 pin plug)
-
Floor
- screen printed floor
- rubber floor, glued and sealed
-
Ventilation
- polyester roof with 2 pop-out windows
Chassis
-
Chassis
- extended drawbar with platform for carriage
- stainless steel bolts on structure
- side member chassis with V-tow hitch
- CFF-Plus lowered comfort suspension with wheel shock absorber
-
Tires and wheels
- Tires 14", steel rim
-
Jockey wheel
- automatic jockey wheel
-
Coupling
- trailer hitch lockable
Internal Space
-
Partition wall systems
- transparent PVC divider with upper section
-
Comfort and safety
- Multi Safe System (anti-panic stall bar system)
- without lateral kick protection
-
Lighting
- interior lighting
Accessories
Body
-
Body color
- sidewalls grey, 1500 mm
-
Color of polyester roof
- colour of polyester roof: red-metallic
- colour of polyester roof: green-metallic
- colour of polyester roof: dark blue-metallic
- colour of polyester roof: brown-metallic
- colour of polyester roof: slate grey-metallic
- color of polyester roof: anthracite-metallic
- color of polyester roof: white
- color of polyester roof: yellow
- colour of polyester roof: deep orange
- colour of polyester roof: flame red
- color of polyester roof: magenta
- colour of polyester roof: frozen berry
- color of polyester roof: yellow-green
- colour of polyester roof: royal blue
- color of polyester roof: silver grey
- color of polyester roof: slate grey
-
Mudguards colour
- colour of polyester fenders: silver-metallic
- colour of polyester fenders: red-metallic
- colour of polyester fenders: green-metallic
- colour of polyester fenders: dark blue-metallic
- colour of polyester fenders: brown-metallic
- colour of polyester fenders: slate grey-metallic
- colour of polyester fenders: anthracite-metallic
- colour of polyester fenders: white
- colour of polyester fenders: yellow
- colour of polyester fenders: deep orange
- colour of polyester fenders: flame red
- colour of polyester fenders: magenta
- colour of polyester fenders: frozen berry
- colour of polyester fenders: yellow-green
- colour of polyester fenders: royal blue
- colour of polyester fenders: silver grey
- colour of polyester fenders: slate grey
-
Color of polyester cover
- polyester cover for side braces: silver-metallic
- polyester cover for side braces: red-metallic
- polyester cover for side braces: green-metallic
- polyester cover for side braces: dark blue-metallic
- polyester cover for side braces: brown-metallic
- polyester cover for side braces: slate grey-metallic
- polyester cover for side braces: anthracite-metallic
- polyester cover for side braces: white
- polyester cover for side braces: yellow
- polyester cover for side braces: deep orange
- polyester cover for side braces: flame red
- polyester cover for side braces: magenta
- polyester cover for side braces: frozen berry
- polyester cover for side braces: yellow-green
- polyester cover for side braces: royal blue
- polyester cover for side braces: silver grey
- polyester cover for side braces: slate grey
-
Canvas Lift / polyester flap
- polyester-flap above rear ramp (lockable)
-
Decors
- Decor, large, multicoloured
- decor "Gallop" (1180 x 950 mm), multicoloured
- decor "Piaffe" (1000 x 950 mm), multicoloured
- decor "Jumper" (530 x 950 mm), multicoloured
- decor "Strong trot" (1240 x 950 mm), multicoloured
- decor "Competition" (909x900mm), multicoloured
- Decor, large, silver
- Art Line" decor 1176 x 255 mm, silver
- decor "Andalusian" (847x900 mm), silver
- decor "Arabian" (1033x900 mm), silver
- decor "Dressage" (642x960 mm), silver
- decor "Friesian" (1022x900 mm), silver
- decor "Gaited horse" (926x900mm)
- decor "Harnessed horses"(715x960mm), silver
- decor "Military" (861x900 mm), silver
- decor "horse head" (1560x724mm), silver
- decor "Jumper" (1278x900 mm), silver
- decor "Mare with foal"(1196x900mm), silver
- decor "Competition" (909x900 mm), silver
- decor "Western" (1144x900 mm), silver
- Decor, small, multicoloured
- decor "Gallop" (430 x 330 mm), multicoloured
- decor "Piaffe" (370 x 330 mm), multicoloured
- decor "Jumper" (250 x 430 mm), multicoloured
- decor "Strong trot" (470 x 330 mm), multicoloured
- decor "Competition" (323x320mm), multicoloured
- Decor, small, silver
- decor "Andalusian" (311x330 mm), silver incl. decoration stripes
- decor "Arabian" (368x320 mm), silver incl. decoration stripes
- decor "Dressage" (290x434 mm), silver incl. decoration stripes
- decor "Friesian" (369x325 mm), silver incl. decoration stripes
- decor "Gaited horse" (332x322mm), silver incl. decoration stripes
- decor "Harnessed horses"(320x429mm), silver incl. decoration stripes
- decor "Military" (327x342 mm), incl. decoration stripes, silver
- decor "horse head" (532x247 mm), incl. decoration stripes, silver
- decor "Jumper" (423x308 mm) incl. decoration stripes, silver
- decor "Mare with foal" (426x320 mm) incl. decoration stripes, silver
- decor "Competition" (323x320 mm) incl. decoration stripes, silver
- decor "Western" (390x306 mm) incl. decoration stripes, silver
-
Attachments
- 3. brake light on rear ramp
- tie bar on outside of trailer (cathodic dip-coated)
- approach mirror for hitching up process, unmounted
- climbing aid
- spare wheel 14"
- spare wheel holder (mounted)
- spare wheel cover
- sulky holder on rear ramp
- periphery lighting for reversing
-
Floor
- alu floor instead of screen printed floor
-
Lashings
- additional angle lever lock at door
-
Ventilation
- sliding windows (700x300 mm), left/right in poly roof
- roof vent in polyester roof
Chassis
-
Chassis
- WCF-chassis with wheel shock absorbers
-
Tires and wheels
- Böckmann Premium aluminum rims 14"
- M+S tyres 15"
-
Jockey wheel
- cover for autom. jockey wheel
-
Coupling
- Selection coupling
- adapter 7 pin to 13 pin
- Selection ball coupling
- anti-skid coupling (up to 2,7 t total weight), not lockable
Internal Space
-
Partition wall systems
- Selection partition systems
- foldable foal grill
- additional floor bracket for partition wall
- Selection head divider
- head divider "aluminium"
- head divider "lattice"
-
Comfort and safety
- Selection comfort and safety
- full-width butt bar, padded
- full-width breast bar, padded
- additional breast bar padding
- rubber wear mat
- Selection side padding
- side padding (2 pc.)
- Selection kick protection
- lateral kick protection
-
Lighting
- additional interior lighting at rear
-
Tack locker/ room
- Selection tack box / room
- broom with telescopic handle
- holder for whip
- plastic shovel
- Selection tack box / extra door
- tack locker inside with telescopic saddle rack,shovel/mirror/broom/net
- additional entrance door
-
further interior
- feeding trough with holder
Other
-
Multimedia
- video monitoring device
- cables and holder for video surveillance
