The new aluminum box trailer with polyester roof and bow

Extension of the box trailer family with a new model series.

We start the year 2022 directly with the product launch of the new aluminum box trailer with polyester roof and bow (KT-PB-AL). The trailers combine high functionality with shapely design. What is special is not only the new shape, but also the leap into the color world. The roof and front of the six models are available in seven attractive colors.In addition, the low loading height ensures easy loading and unloading, and the new door-ramp combination makes for easy handling. Further innovative detail solutions have resulted in a new box trailer series that inspires all along the line.

To make the trailer visually a real eye-catcher, a design package consisting of Böckmann premium aluminum rims, polyester fenders and polyester light box cover can be added.

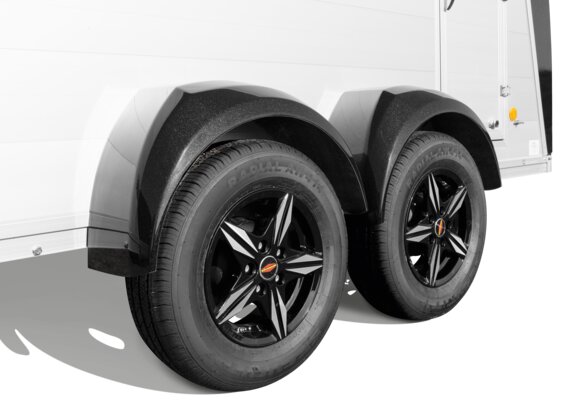

Böckmann Mehrwert Kofferanhänger Premium Alu-Felgen
Böckmann premium aluminum rims

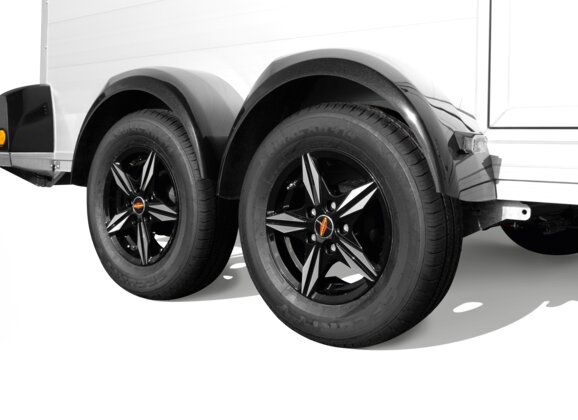

Zubehör KT-PB-AL Polyesterkotflügel
Polyester fenders

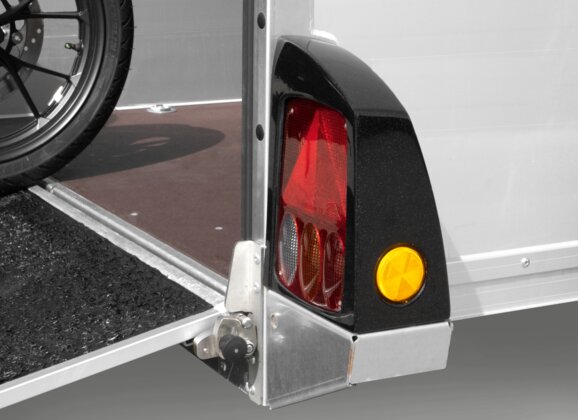

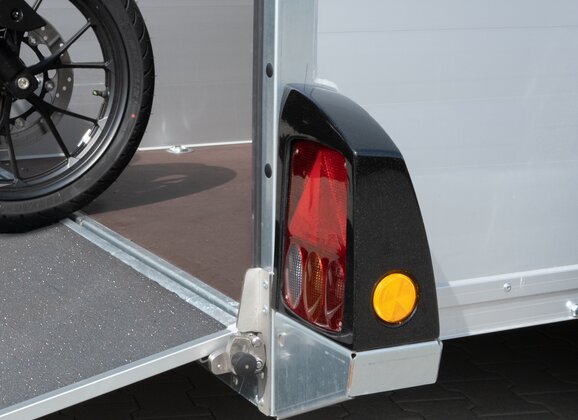

Zubehör KT-PB-AL Leuchtkästenabdeckung
Polyester light box cover

In series, the aluminum box trailers with polyester roof and bow (KT-PB-AL models) impress with their robust construction. The double-walled 18 mm profiles made of anodized aluminum and the solid, galvanized steel rear portal ensure high stability. Polyester roof and bow are available in anthracite-metallic as standard. Like the other Böckmann box trailer models, these models are also equipped with a continuous screen printing floor panel, interior lighting and lashing rings. A new feature is the practical storage compartment in the front, which creates additional storage space.

At launch, the trailers are on the market in two different sizes. The smaller version has interior body dimensions of 2755 x 1315 x 1730 mm and passage dimensions of 1445 x 1245 mm. The larger version has internal body dimensions of 3255 x 1515 x 2060 mm and passage dimensions of 1745 x1445 mm. With a loading height of 410-455 mm, depending on the model, the box trailers are ideal for transporting e-bikes or motorcycles. The standard door-ramp combination, facilitates the loading and unloading of the trailer. For all other low loader box trailers with low loading height (F models), this is available as an accessory. The door-ramp combination provides a seamless transition between the drive-up ramp and the interior and is equipped with angle lever locks, a wedge profile and an innovative locking system with locking bolt.

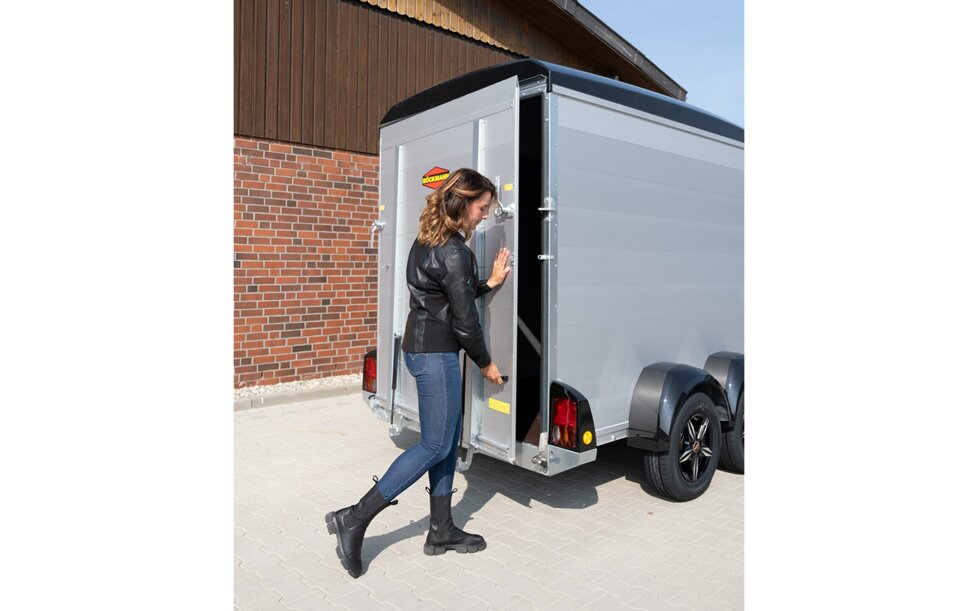

Mehrwert KT-PB-AL Tür-Rampenkombination

Maneuvering handles, high-quality tires, the bolted V-drawbar and the jockey wheel round off the standard equipment of the KT-PB-AL. The tandem models are equipped with an automatic jockey wheel.

Through the accessories, the trailers can be configured in the colors dark blue, dark green, flame red, yellow, grey or white.

Böckmann KT-PB-AL-3015-27-F dunkelblau
Dark blue

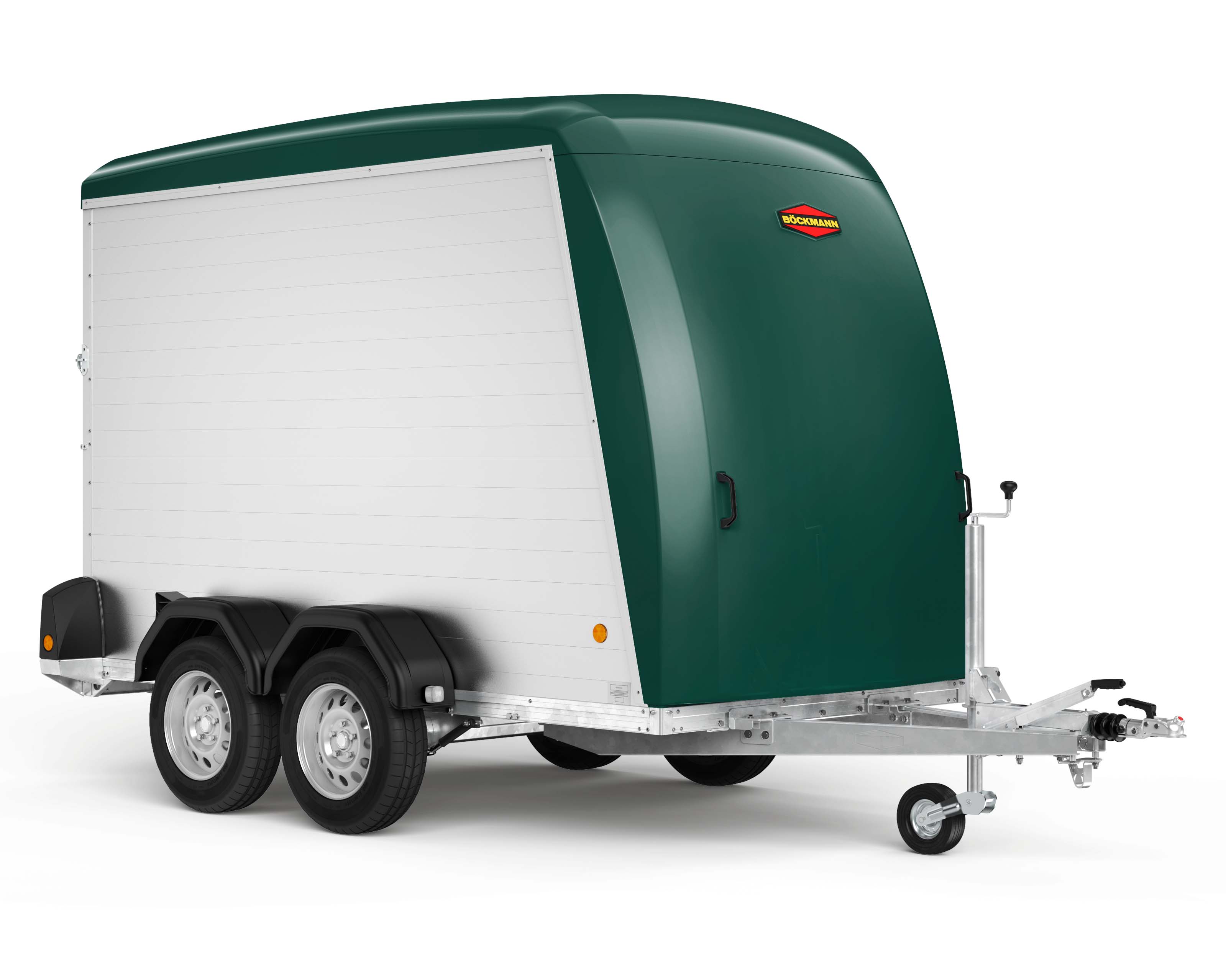

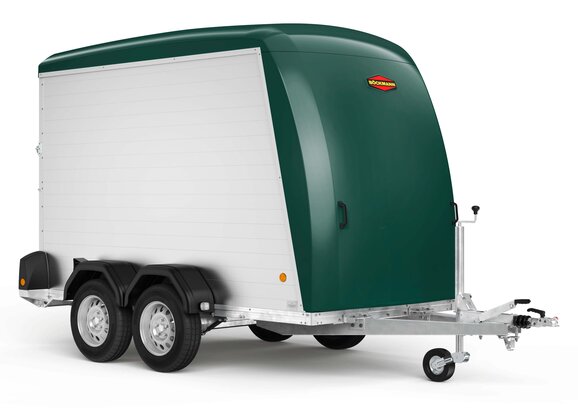

Böckmann KT-PB-AL-3015-27-F dunkelgrün
Dark green

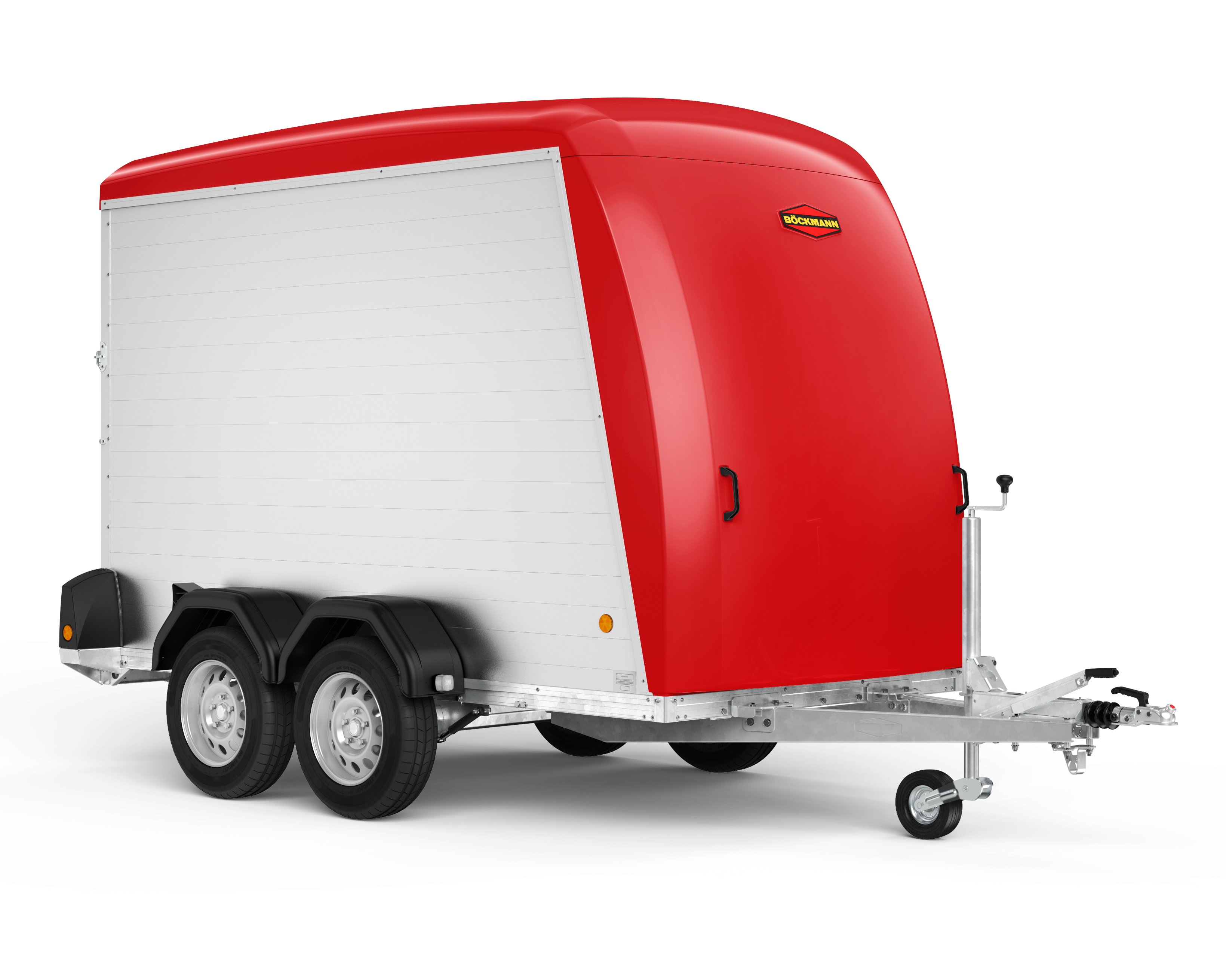

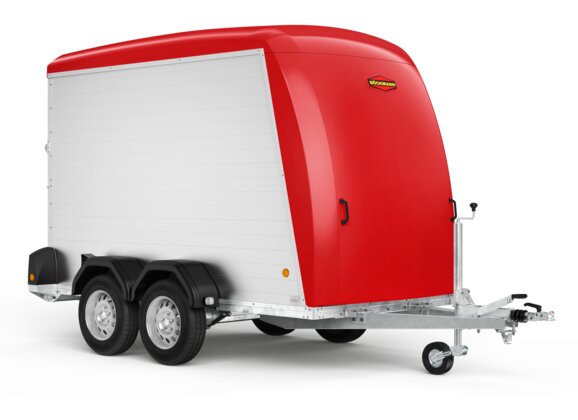

Böckmann KT-PB-AL-3015-27-F feuerrot
Flame red

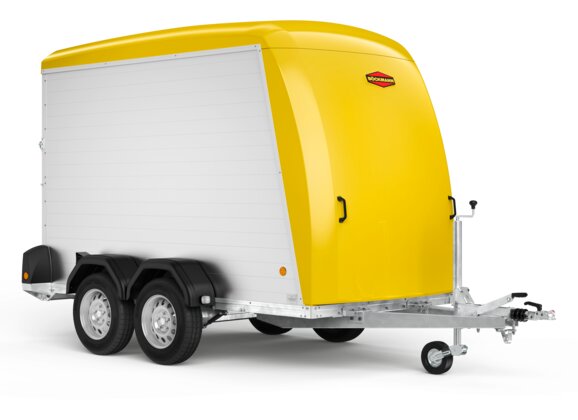

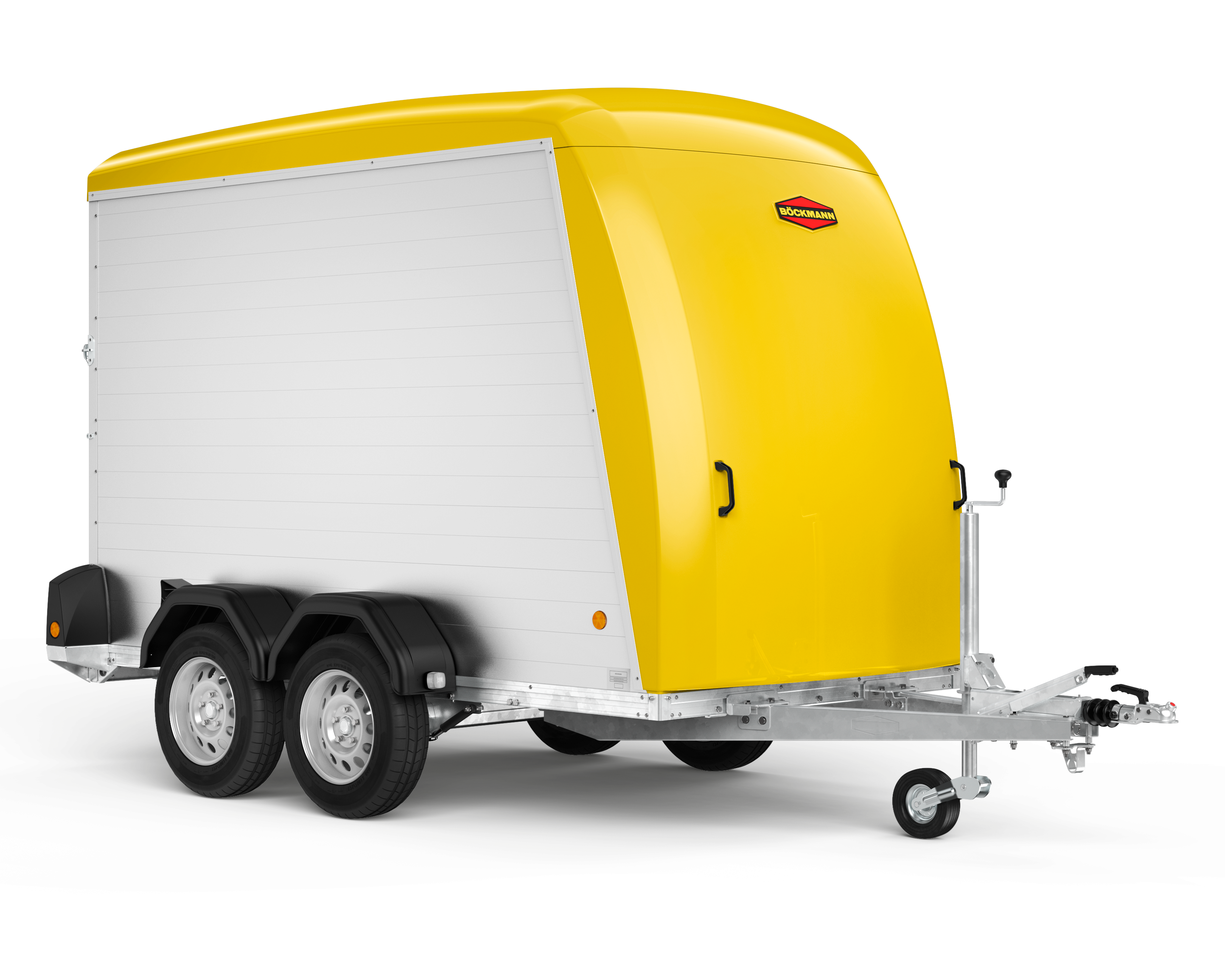

Böckmann KT-PB-AL-3015-27-F gelb
Yellow

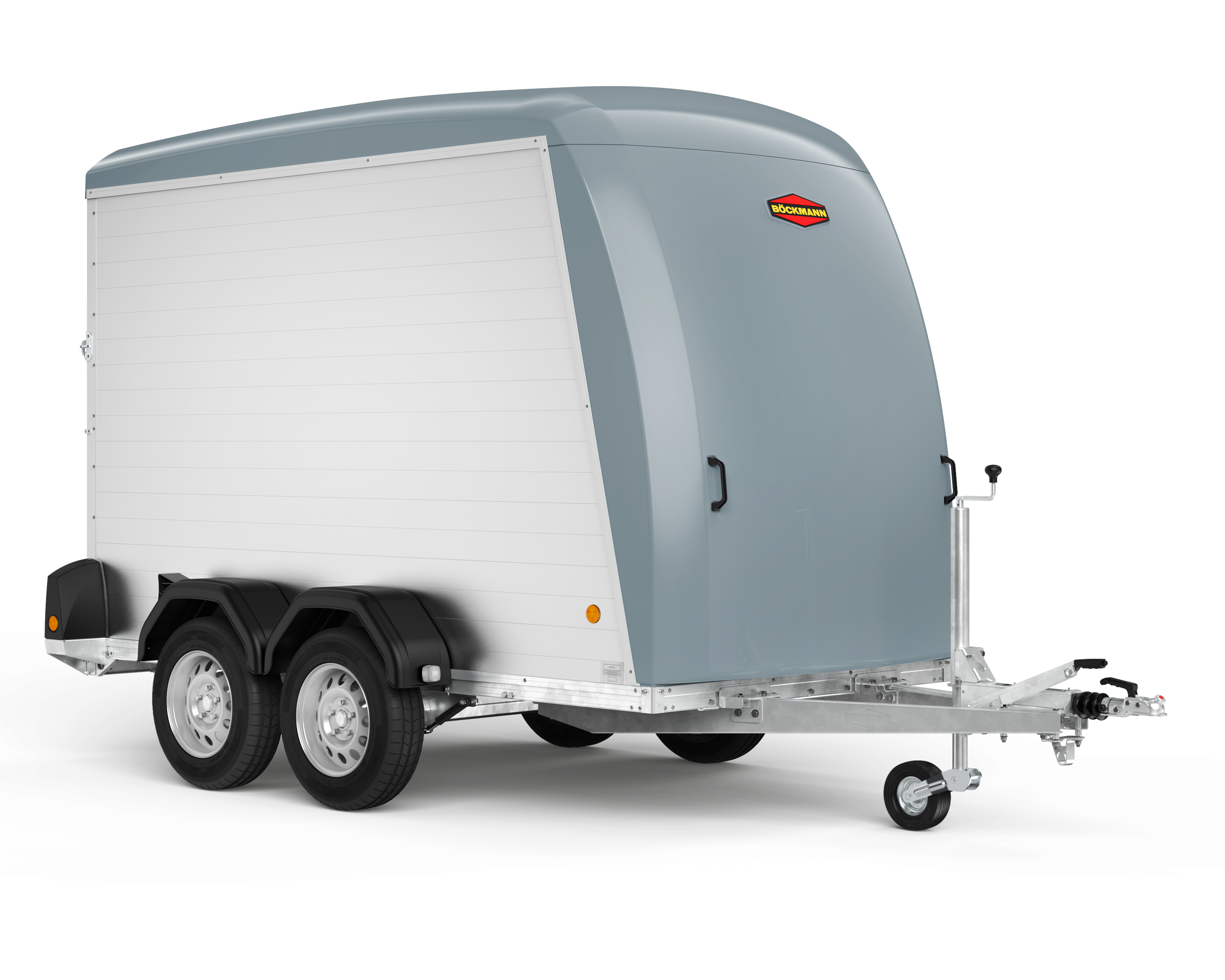

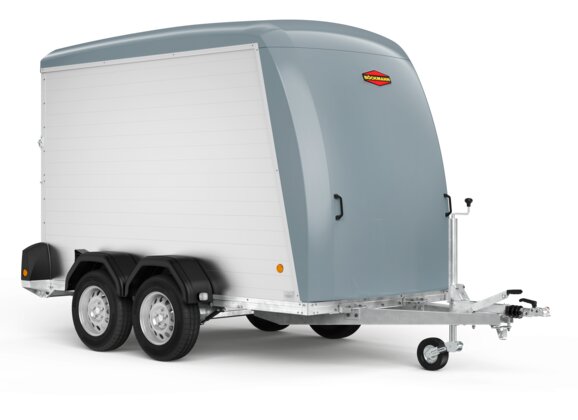

Böckmann KT-PB-AL-3015-27-F grau
Grey

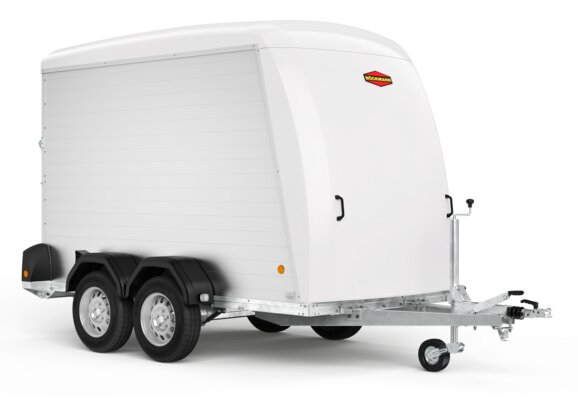

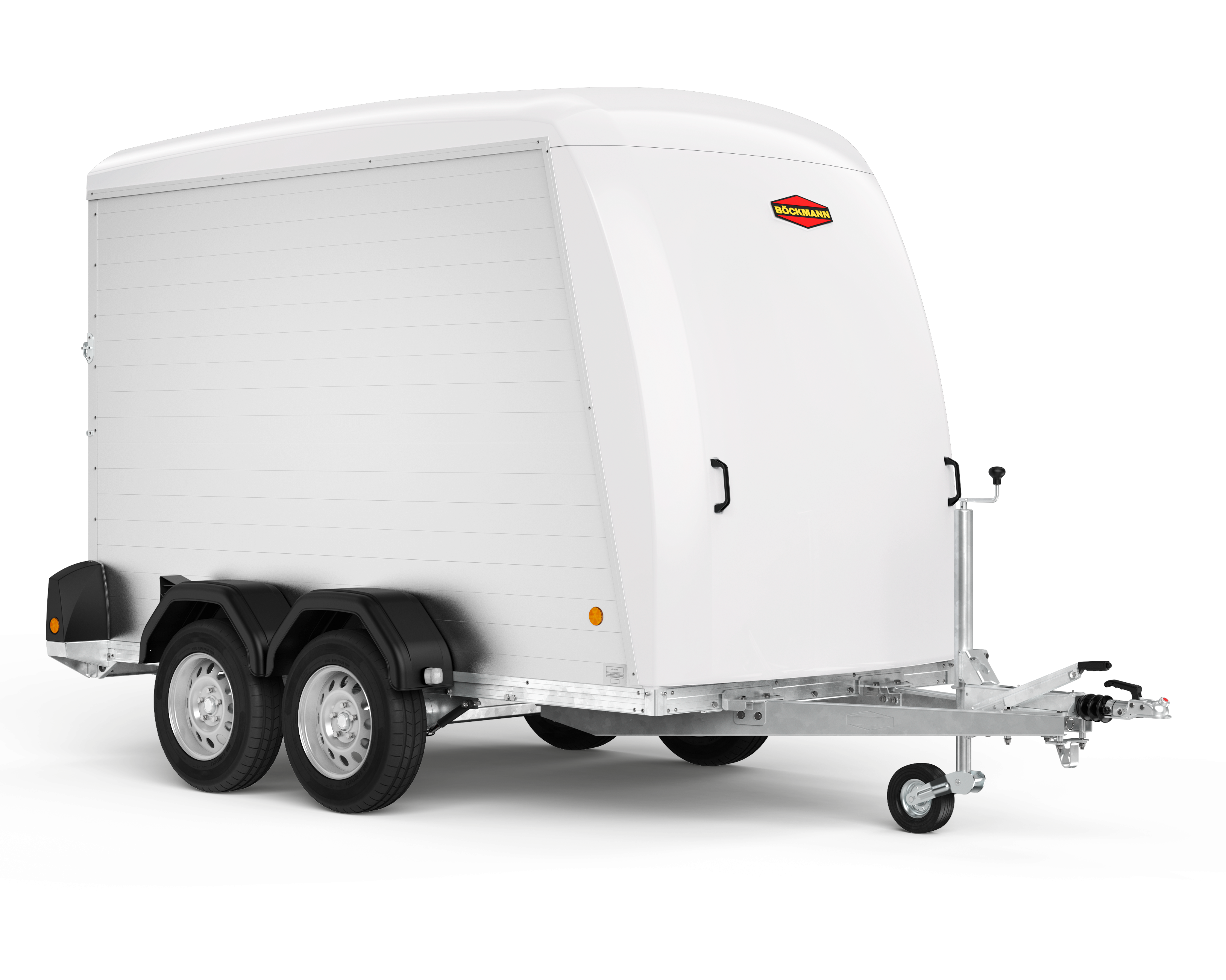

Böckmann KT-PB-AL-3015-27-F weiß
White

Also selectable are wheel shock absorbers, an aluminum checker plate on the floor and an additional door. Recessed lashing rings, lashing rails and shut-off bars are also available for the interior. Additional exclusive lettering rounds off the individual design of the trailer.
