Performance Trio
Prix sur demande

Caractéristiques

Nombre d'animaux
3 Chevaux
Famille
Performance Familie, 7200 kg
Nombre de places pour dormir

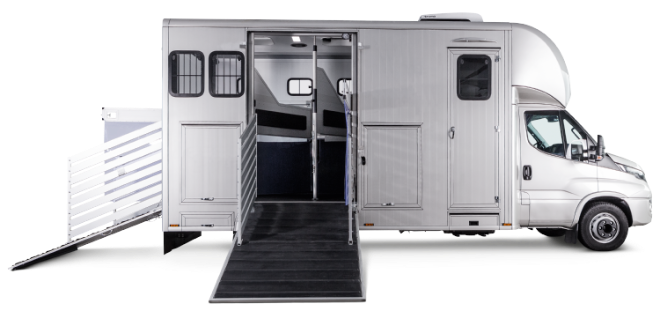

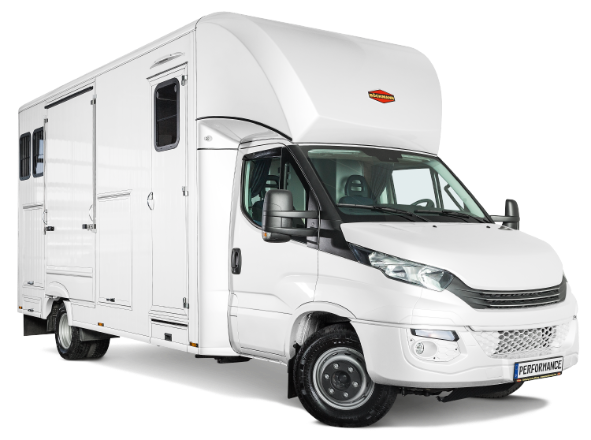

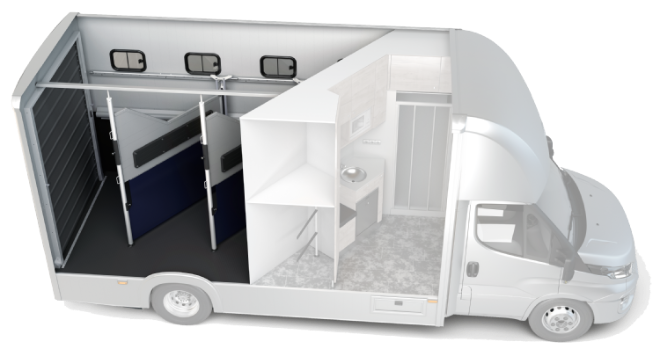

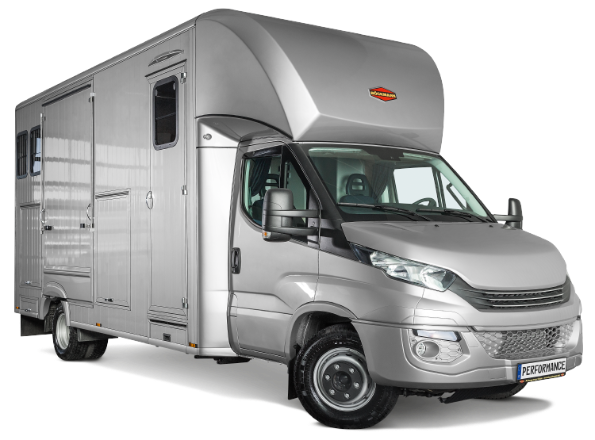

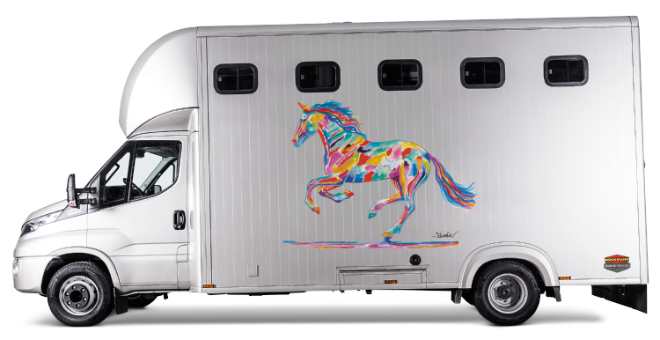

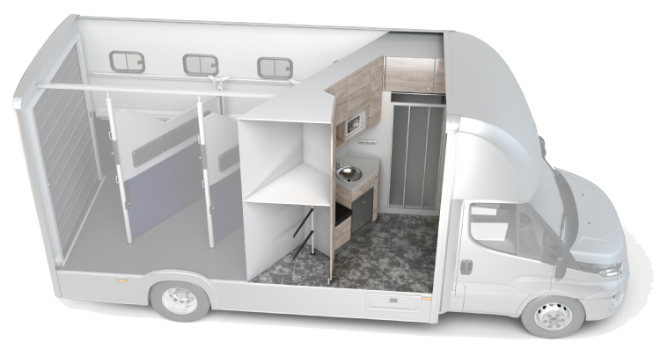

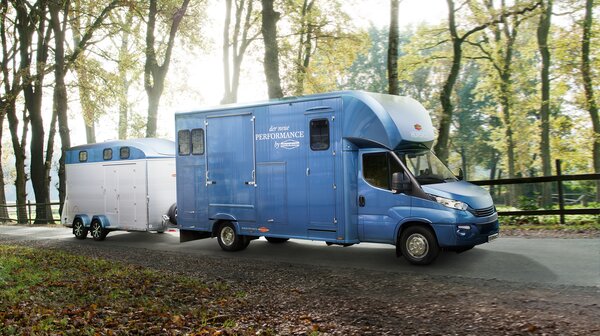

You are looking for a reliable transport solution with extra-large horse compartment and a really spacious living area, combined with maximum payload? The Performance Trio has room for three horses in slant position, large living quarters and many cleverly conceived equipment details - and everything in the premium quality you`ve come to expect from Böckmann. Have a good trip!

Spécifications techniques

Base
Nombre d'animaux Nombre d'animaux
3 Chevaux
Appartements Appartements
Ausbauwohnung schräg 83-223 cm
Salle de bains Salle de bains
Poids
PTAC PTAC
7200 kg
Charge utile Charge utile
2200 kg
Dimension extérieure
Longueur totale Longueur totale
7450 mm
Largeur totale Largeur totale
2340 mm
Hauteur totale Hauteur totale
3350 mm
Dimension intérieure largeur
longueur intérieure longueur intérieure
5000 mm
largeur intérieure largeur intérieure
2300 mm
hauteur intérieure hauteur intérieure
2500 mm

Équipement standard

Parois

  • Coque en général
    • Aluminum corner profiles, rounded

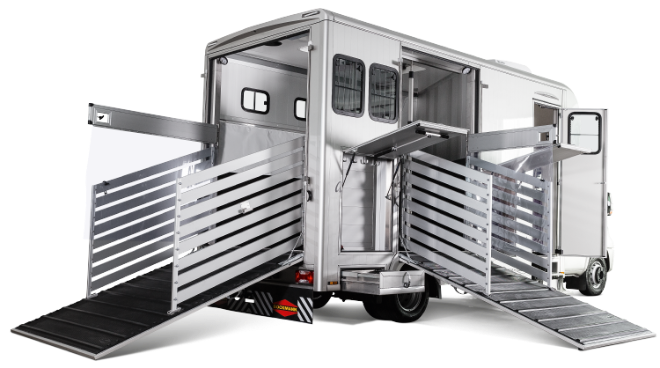

    • Loading ramp (rear) with rubber with special step bars and side stop
    • Windows (2x) vertically sliding 450x600mm with integral window grille
    • Roof skylight, big version, incl. closing support (2x)
    • Roof spoiler on tailgate integrated brake and clearance lights (LED)
    • Horizontal sliding window in left side panel 450x300mm (3x)
    • Roof ventilator (2x) switchable from the drivers cabinet
    • Insulated sandwich roof 50 mm thick (GRP)
    • Alcove
    • Aluminum profile base on hot galvanized frame

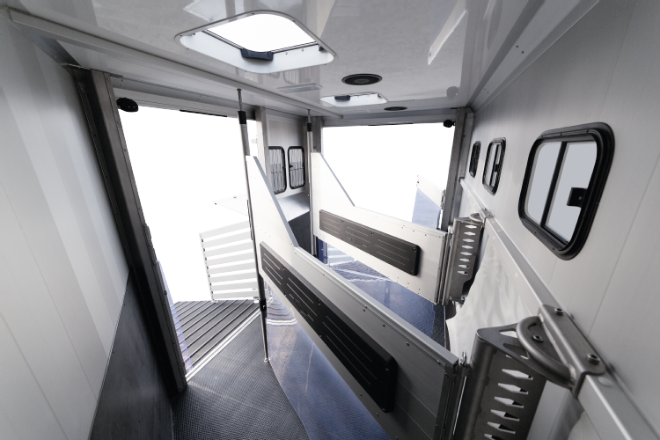

  • Caisse Espace pour chevaux
    • Barrier belt in front of the loading flap
    • Fixed H-partition, aluminium, with transparent PVC curtain
    • Side padding for partition wall and left side wall
    • Rubber floor, glued and sealed
    • hay net hooks ( 1 per horse)
    • Feeding troughs, plastic (1 per horse) for hanging
    • Tethering rings (2 per horse)
    • Side upholstery on aluminum partitio and on the wall between
    • Kick protection in the back of the horse area
    • Kick protection on the wall to the living room
    • LED-Light in horse area (2x)
  • Caisse Sellerie
    • LED-Light in tack room (there switchable)

Châssis

  • Châssis
    • Passenger double seat bench with multifunctional shelf
    • winter tires on steel rim 17 inch
    • Driver's seat adjustable (height, inclination, longitudinal direction)
    • Manual six-speed gearbox
    • Paint:  RAL white
    • 180 hp, diesel engine, 4 cylinders
    • Seat covers textile, breathable, anthracite
    • Tank, diesel 90 l
    • Central locking with remote control
    • Mirrors for vehicle width 2.35 m
    • Driver air bag
    • Iveco Daily C70
    • Electronic immobilizer
    • Elimination of cabin back wall
    • Height adjustable steering wheel
    • speed limitation device 110 km / h
    • Brake assist, hydraulic
    • AdBlue® tank 25 l
    • Electronic stability program (ESP), Start-up assistant (AAS),
    • AM/FM and DAB antenna in right-hand wing mirror
    • Lane-departure warning
    • Digital tachograph without calibration
    • Electrically adjustable and heated door mirrors
    • electric windows
    • grey bumper of PVC
    • Sensor for oil level monitoring
    • Daytime Running Light
    • Body partly galvanized

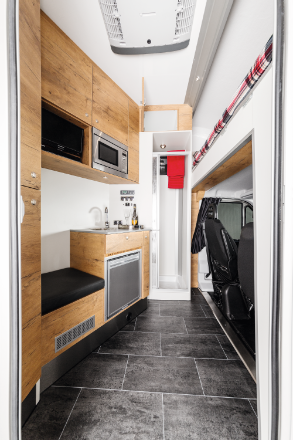

Intérieur

  • Séjour
    • PVC flooring
    • Open back wall of the cab
    • Front door, lockable
    • Mirror
    • Stool, foldable
    • LED-Spot, 3 x
    • All furniture parts in solid wood,
    • Coat hooks
    • Lighting LED, ambience
  • Dormir
    • Mattress in alcove (incl. Ladder)

Accessoires

Parois

  • Coque en général
  • Caisse Espace pour chevaux
    • Sélection barrière devant rampe de chargement
    • Stop board before loading ramp instead cordon, pivotable
    • Sélection bat-flanc
    • Movable H-partition, aluminium, with transparent PVC curtain
    • Autres options d'équipement
    • Anchoring chains (6x) with panic hook, adjustable in air-liner rail
    • Anchoring rope with panic hook (set)
    • Excrement slide
    • LED-working illumination for the vicinity of the loading flap.
    • LED-Light in horse area, additional
    • Calming illumination (blue)
    • Kick protection between partition hangers
    • Temperature control  (according to regulation EG 1/2005)
    • Animal transport report
    • Wear mat for each horse place
    • Video monitoring incl. reversing camera
    • Electric winch
  • Caisse Sellerie
    • Bag net additional
    • Saddle rack additional

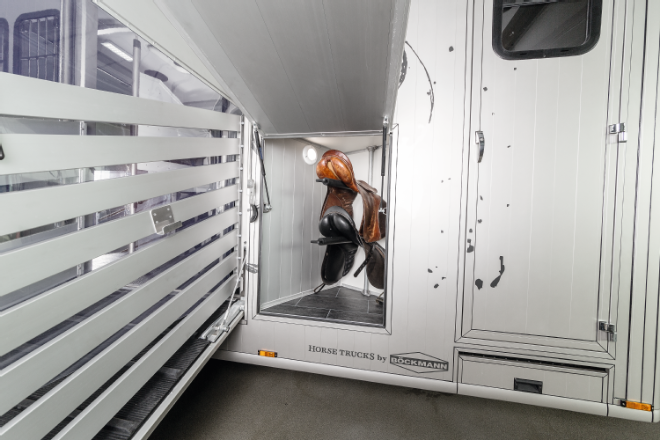

    • Tack room side, with lockable flap outside,
    • Side snaffle shelf, with lockable outside flap,
    • Snaffle hooks, additional

Châssis

  • Châssis
    • Sélection siège passager
    • Passenger seat rotatable
    • Seat, Passenger, Comfort(3-way adjustable, armrest, lumbar support)
    • Bench, deleted
    • Sélection pneus
    • Winter tires / M + S tires
    • Sélection siège chauffeur
    • Driver's seat rotatable
    • Seat, driver luxury with armrest, lumbar support, hydraulically
    • Sélection boîte de vitesse
    • Transmission, automatic Hi-Matic, 8 speed gearbox

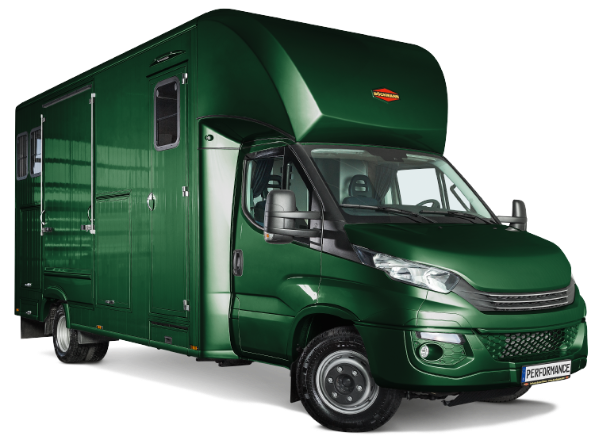

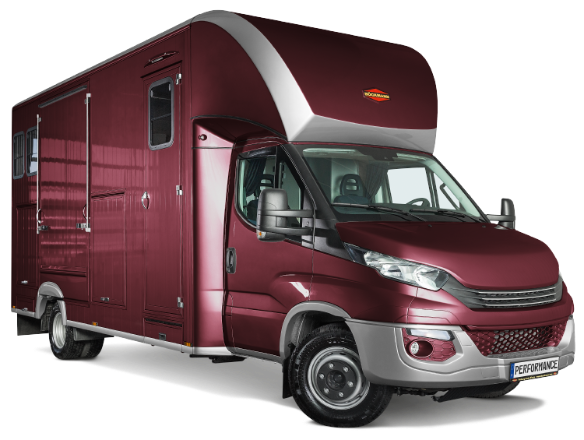

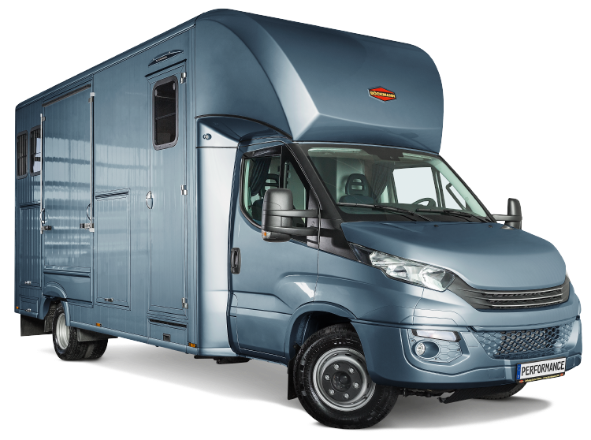

    • Sélection peinture

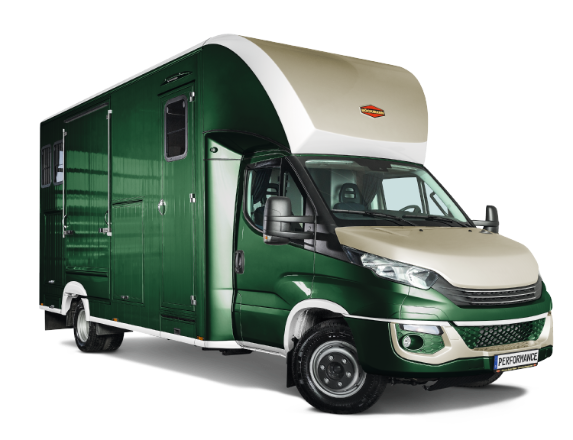

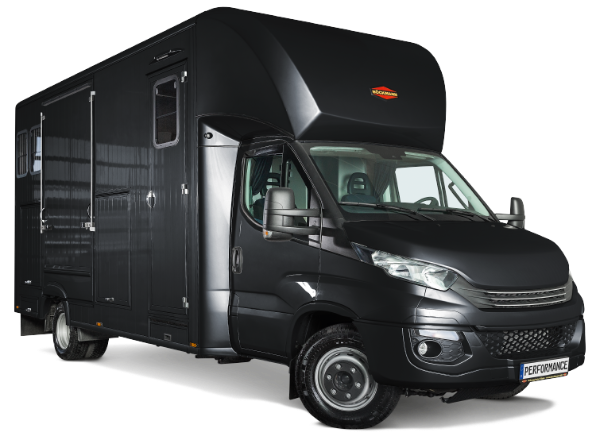

    • Paint, complete in metallic-colors (except PVC parts of the chassis)
    • Paint, complete in RAL-Colors
    • Paint of plastic parts (cab), metallic-colors
    • Sélection motorisation
    • Surcharge 205 hp
    • Sélection housse de siège
    • Seat covers Skai leather, per seat
    • Sélection taille réservoir
    • Tank, diesel 117 L
    • Autres options d'équipement
    • Airbag, passenger with belt tensioner
    • Trailer coupling (ball head), rigid
    • Battery reinforced (210 Ah)
    • Bluetooth touch screen radio with CD
    • Differential lock at rear axle
    • Air-Suspension (rear axle)
    • Floor mat (rubber)
    • Floor mats (driver's cab)
    • Air conditioning, automatic, with pollen filter and outside temperatur
    • Air conditioning, manual
    • Fog lights with static cornering light
    • Secondary drive
    • Radio / RDS, CD, 7 monitor, MP3 USB, Bluetooth, navigation with
    • Wheel covers, stainless steel
    • Reversing warning, acoustic
    • Cruise control
    • Reinforced generator 210 Ah

Intérieur

  • Séjour
    • Boiler, hot water, 15l
    • Window for exterior door,370x500mm, erectable, incl.rollo+mosquito net
    • Window, vertically sliding, without grille in external door
    • Door mat with emblem Böckmann
    • Jack cabinet above tack room
    • Cupboard under the ceiling, about 550 wide
    • Seat, 1 person,with upholstery, foldable with storage space underneath
    • Table, mobile, foldable, oval shape, approx. 500 x 700mm
    • TV 19
    • TV SAT equipment, fully automatic
    • Curtain passage
    • Apartment furnishings can be individually designed. Please Contact us!

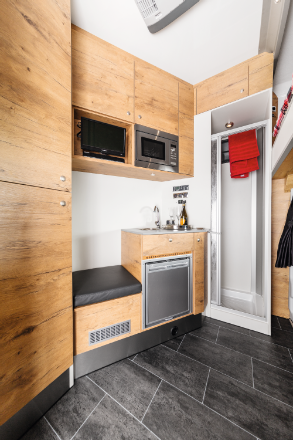

  • Cuisine
    • Kitchen block: Base cabinet with worktop approx. 500 x 500 X 900, with
    • Refrigerator (12V)
    • Microwave 230 V
    • Sink, stainless steel with faucet and electric pump
  • Salle de bain
    • Shower with cover approx. 600 x 800, with boiler and shower set,
    • Toilet, mobile Porta Potti Excellence
  • Dormir
    • Van bed, Iveco Daily

Divers

  • Installation électrique
    • AGM auxiliary battery 200 AH
    • Rooftop air conditioning
    • Electrical package 1: 230V connection, CEE input socket, FI-switch,
    • Electric package 2 = surcharge on EP 1: charging function from the
    • Electric package 3 = surcharge on EP 2: Charging function from 230V
  • Chauffage
    • Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
  • Peinture
    • Lettering Horses and Dressage and right
    • Lettering Horses and Jumper left and right
    • Lettering Horses and mare with foal left and right
    • Lettering Horses and looking horse left and right
    • Lettering 2-Horse-Heads left and right
  • Accessoires
