Caractéristiques
Nombre d'animaux
4 Chevaux
Familie
Equipe Familie, 15000 kg
Anzahl Schlafplätze
3

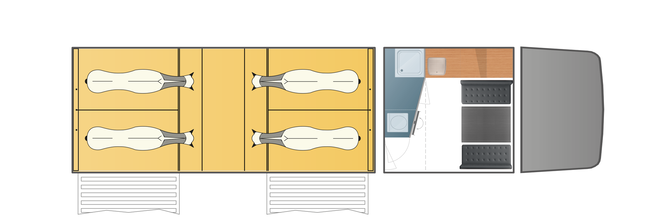

The compact Equipe L4 for four horses in lengthwise position has an impressive range of features. The large loading ramps at the side and the cosy living quarters offer horse and riders an equally high standard of comfort and a number of convenient features.
Spécifications techniques
Base
Nombre d'animaux
4 Chevaux
Wohnung
Deluxe 250 cm
Badezimmer
Kleines Bad
Poids
PTAC
15000 kg
Charge utile
4600 kg
Dimensions extérieures
Longueur totale
10050 mm
Largeur totale
2550 mm
Hauteur totale
4000 mm
Dimensions intérieures
longueur intérieure
5700 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- 2 Loading ramps with rubber covering with special step bars+side stop
- Feed alley (aluminum checker plate floor) with separate exterior
-
Caisse Espace pour chevaux
- L-partitions (2x) aluminum with transparent PVC curtain
- Feeding trough for hanging, black plastic, with suspension (4pc.)
- Aluminum partition profiling
- Roof skylights (2)
- Lighting switchable from the driver's cab (4 lights in horse area)
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Hay net hooks (1 per horse)
- Plastic kicking protection on left side
Châssis
-
Châssis
- 2x12V/100 Ah batteries
- Front passenger seat, simple
- Driver swing seat standard
- Tank 120 l
- 177 hp /130 KW
- Mercedes-Benz Atego Neu 15 L
- front springs parabolic
- main mirror electrically adjustable, on drivers side
- AdBlue® tank 25 l
- Front mirror, heatable
- PowerShift 3 transmission
- Daytime Running Light
- Cruisecontrol
Intérieur
-
Séjour
- Extension ladder at the front door with latch
- PVC Flooring
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- All furnitures in solid construction with safety catches
- Door mat with emblem Böckmann
- Lockable entrance door with 3-point closure
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Living room window above the bench, 900x600 mm, multifunctional,
- Walls panelled with laminated plastic sheeting
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Lowerable table
- Mirror
- 4 coat hooks in the entrance area
-
Cuisine
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- cabinet with drawer and towel rail under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
- Sink with tab
- Salle de bain
-
Dormir
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
-
Éclairage
- 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper
Divers
- Installation électrique
-
Peinture
- Painture: white
-
Eau/eaux usées
- Waste water tank 200 l
- Fresh water tank 200 l
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Caisse Espace pour chevaux
- Sélection bat-flanc
- Partition completely closed
- SES
- Airliner rail with 2 Anbindeketten,
- Autres options d'équipement
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed table (slightly oblique plate) instead of feeding trough
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, for L-partition
- Excrement slide
- Calm lighting
- Sliding on feed trough /feed table (2 parts)
- Screen made of PVC on feed trough / table
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
-
Caisse Sellerie
- Tack room in the intermediate gear/feed alley, outside+internal access
Châssis
-
Châssis
- Sélection puissance battérie
- 2x12V/165 Ah batteries
- Sélection siège passager
- Passenger suspension seat, comfort
- Sélection siège chauffeur
- Driver's suspension seat, comfort
- Sélection taille réservoir
- Tank 180 l
- Puissance moteur
- 220 hp / 299 KW
- Autres options d'équipement
- Trailer coupling
- trailer socket. 12-V, 13 pole
- electric windows
- Air Conditioning
- Extended central locking systems
- Middle seat with 3-point seat belt
- Halogen fog lamp
- CD-radio, Bluetooth
Intérieur
-
Séjour
- Sélection échelle vers l'entrée
- Folding steps insted of extension ladder, with treads of alu
- Autres options d'équipement
- Window (bullseye) in front door
- Accesss way to the cabin, covered with laminate
- TV flat screen 22
- Blinds for living room window
- Blinds for living room window (370x500mm)
- Groom apartment 1000mm (minus space for one horse),
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Cuisine
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Salle de bain
- Mobile toilet, incl elec. flush, fresh- and waste water tank
-
Éclairage
- LED ambient lighting
Divers
-
Installation électrique
- Sélection jeu électrique
- Electrical basic package 2
- Electrical basic package 3
- Autres options d'équipement
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
-
Chauffage
- Ceiling air conditioner
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
-
Eau/eaux usées
- Sélection réservoir d'eaux usées
- Waste tank 300 l (Surcharge)
- Sélection réservoir d'eau
- Fresh water tank 300 l (Surcharge)
- Accessoires
