Les illustrations peuvent montrer des accessoires non inclus dans le volume de livraison standard. Les illustrations et les données techniques peuvent varier légèrement en raison du développement constant. Erreurs et modifications réservées !
Caractéristiques
Nombre d'animaux
7 Chevaux
Familie
Equipe Familie, 18000 kg
Anzahl Schlafplätze
3

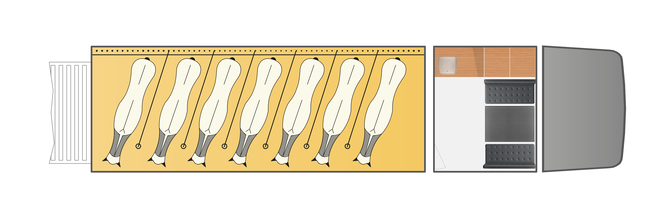

Some competitions are already won on the way to the event: The Big Equipe S with a large horse compartment for up to seven horses, spacious living quarters and XXL drivers cab is really impressive and will also spark your enthusiasm. Unsurpassed space and comfort. What more can you ask?
Spécifications techniques
Base
Nombre d'animaux
7 Chevaux
Wohnung
Classic 200 cm
Badezimmer
Poids
PTAC
18000 kg
Charge utile
3725 kg
Dimensions extérieures
Longueur totale
10960 mm
Largeur totale
2550 mm
Hauteur totale
4000 mm
Dimensions intérieures
longueur intérieure
6460 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Insulated sandwich roof 50 mm thick (GRP)
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
-
Caisse Espace pour chevaux
- Tethering rings
- slidable H-partitions (6pc. ) aluminum with transparent PVC curtain
- Feeding trough for hanging, black plastic, with suspension (7pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (7x)
- Roof skylights (4)
- Lighting switchable from the driver's cab (7 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
- Rubber flooring 30 mm (liquid rubber)
- Hay net hooks (1 per horse)
- Cordon in front of the loading flap
Châssis
-
Châssis
- Driver seat standard
- PowerShift 3 transmission
- Front spring, 7.5 t, 2-leaf
- Trailer coupling
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Wide angle mirror heatable
- Extended central locking systems
- Cruisecontrol
- Functional seat for passenger
- Radio with USB port
- Mercedes-Benz Actros Neu 18 L
- electric windows
- Multifunction steering wheel
- Tank 630 l
- AdBlue® tank 60 l
- Air Conditioning
- 240 kW / 326 hp
- 2x12V/170 Ah batteries
Intérieur
-
Séjour
- Lockable entrance door with 3-point closure
- Lowerable table
- Mirror
- 4 coat hooks in the entrance area
- Door mat with emblem Böckmann
- Living room window above the bench, 900x600 mm, multifunctional,
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Extension ladder at the front door with latch
- Walls panelled with laminated plastic sheeting
- PVC Flooring
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- All furnitures in solid construction with safety catches
- Two opposing benches for 4 persons with seat cushion
-
Cuisine
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- Cabinet with drawers under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
-
Dormir
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
-
Éclairage
- 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper
Divers
- Installation électrique
-
Peinture
- Painture: white
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)
- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Caisse Espace pour chevaux
- Sélection possibilité d'attache
- Airliner rail with 14 tying chains
- Sélection bat-flanc
- Partition completely closed
- Autres options d'équipement
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Caisse Sellerie
- Laterally large Tack room (deep drawn) in front of 2 horses,
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Châssis
-
Châssis
- Pilot's seat, with armrests, adjustable, rotatable
Intérieur
-
Séjour
- Version porte
- Folding steps insted of extension ladder, with treads of alu
- Autres options d'équipement
- Window (bullseye) in front door
- Passage to the cab (only Big Equipe)
- TV flat screen 22
- Blinds for living room window
- Blinds for living room window (370x500mm)
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Cuisine
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
-
Salle de bain
- complete bathroom
- Mobile toilet, incl elec. flush, fresh- and waste water tank
-
Dormir
- Lift bed for 2 persons, with electric spindle drive
-
Éclairage
- LED ambient lighting
Divers
-
Installation électrique
- Sélection jeu électrique
- Electrical basic package 2
- Electrical basic package 3
- Autres options d'équipement
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
-
Chauffage
- Ceiling air conditioner
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
-
Eau/eaux usées
- Waste water tank 200 l
- Waste water tank 300 l
- Fresh water tank 200 l
- Fresh water tank 300 l
- Accessoires
