Caractéristiques
Nombre d'animaux
6 Chevaux
Familie
Equipe Familie, 18000 kg
Anzahl Schlafplätze
3

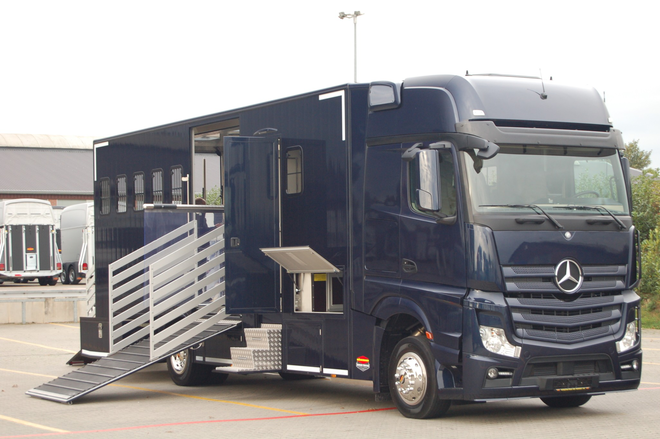

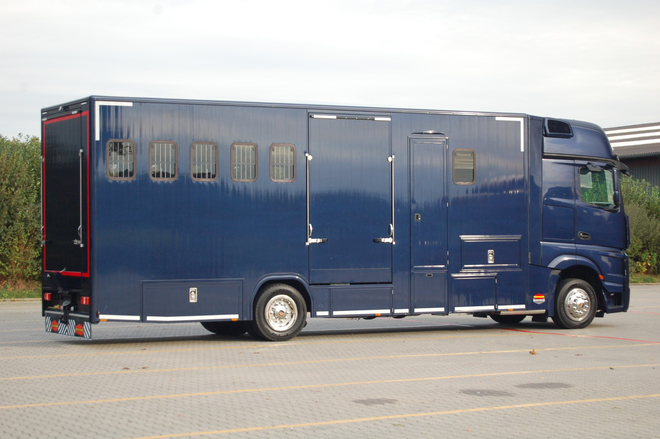

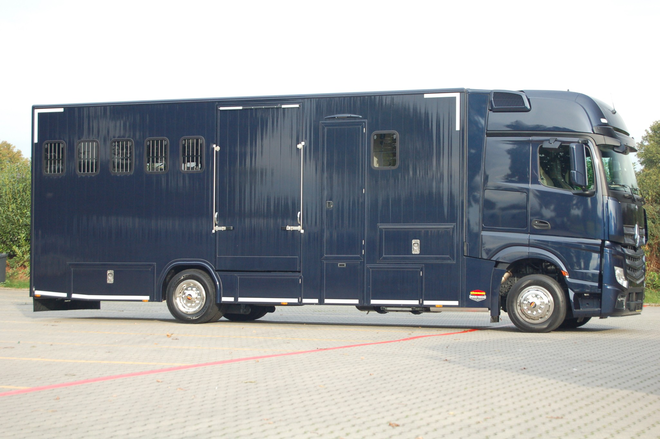

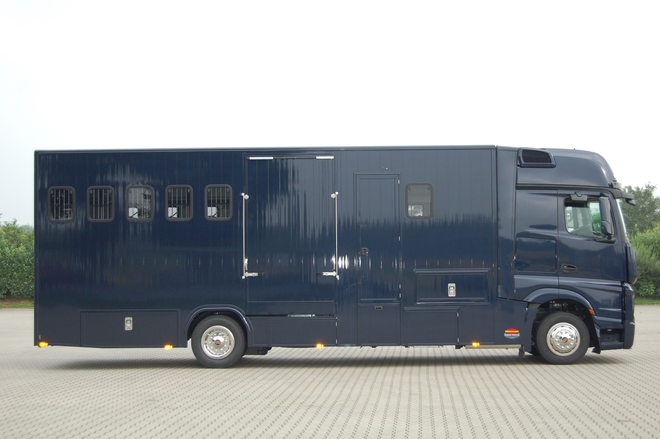

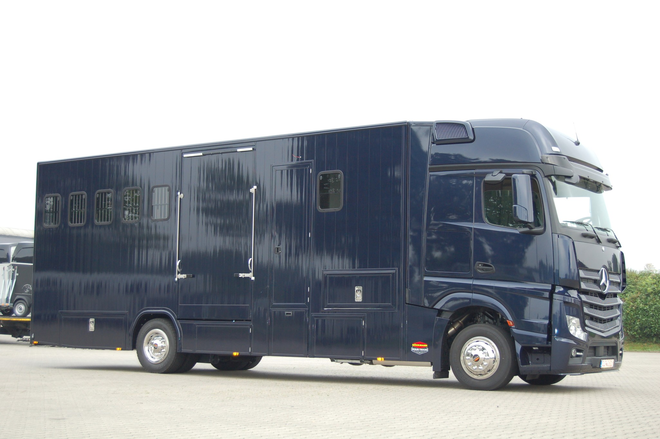

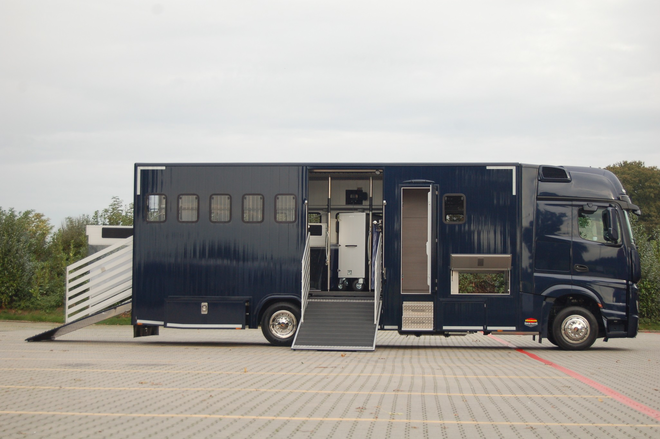

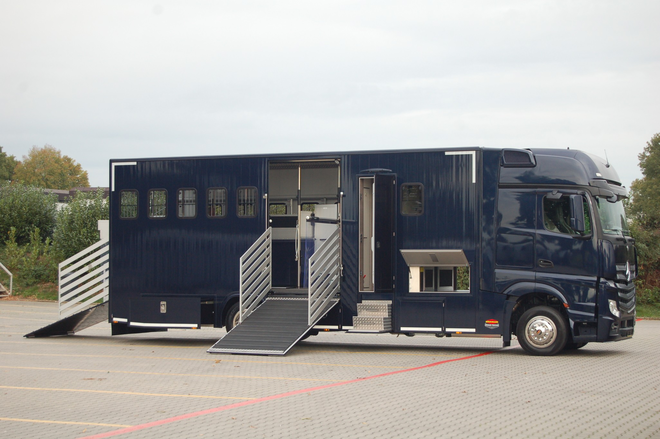

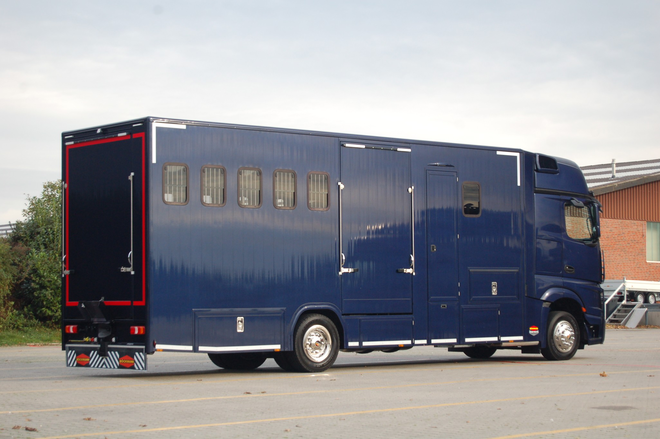

Some competitions are already won on the way to the event: The Big Equipe S with a large horse compartment for up to six horses, spacious living quarters and XXL drivers cab is really impressive and will also spark your enthusiasm. Unsurpassed space and comfort. What more can you ask?
Spécifications techniques
Base
Nombre d'animaux
6 Chevaux
Wohnung
Deluxe 250 cm
Badezimmer
Kleines Bad
Poids
PTAC
18000 kg
Charge utile
3995 kg
Dimensions extérieures
Longueur totale
10660 mm
Largeur totale
2550 mm
Hauteur totale
4000 mm
Dimensions intérieures
longueur intérieure
5660 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Insulated sandwich roof 50 mm thick (GRP)
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
- Double ribbed hollow profile, 25 mm, anodized aluminum
-
Caisse Espace pour chevaux
- Tethering rings
- slidable H-partitions (5pc. ) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Feeding trough for hanging, black plastic, with suspension (6pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (6x)
- Roof skylights (2)
- Lighting switchable from the driver's cab (6 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
- Hay net hooks (1 per horse)
Châssis
-
Châssis
- Driver seat standard
- Extended central locking systems
- Cruisecontrol
- Functional seat for passenger
- main mirror electrically adjustable, on drivers side
- PowerShift 3 transmission
- Front spring, 7.5 t, 2-leaf
- Trailer coupling
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- Mercedes-Benz Actros Neu 18 L
- Tank 630 l
- AdBlue® tank 60 l
- 240 kW / 326 hp
- 2x12V/170 Ah batteries
- Multifunction steering wheel
- Air Conditioning
- electric windows
- Radio with USB port
- Wide angle mirror heatable
Intérieur
-
Séjour
- Extension ladder at the front door with latch
- Mirror
- 4 coat hooks in the entrance area
- Door mat with emblem Böckmann
- Living room window above the bench, 900x600 mm, multifunctional,
- All furnitures in solid construction with safety catches
- PVC Flooring
- Walls panelled with laminated plastic sheeting
- Lockable entrance door with 3-point closure
- Separation to horse area by 25mm anodized.Aluminium Double web profile
- Cabinet row: 1 Jack closet, 1 filing cabinet, several wall cabinets
- Two opposing benches for 4 persons with seat cushion
- Topsleeper, insulated, lined with carpet, incl mattress and ladder
- Lowerable table
-
Cuisine
- Kitchenette with work surface
- 230 V sockets (2x) above kitchenette
- cabinet with drawer and towel rail under the work surface
- Living room window above kitchen, multi-functional,
- Ppotlights above kitchenette
- Sink with tab
- Salle de bain
-
Dormir
- Mattress in topsleeper (including ladder) for 1-2 persons
- Seats convertible to the lying surface for 1 person
-
Éclairage
- 4 spotlights in the ceiling, 1 radiator (reading lamp) in Topsleeper
Divers
- Installation électrique
-
Peinture
- Painture: white
-
Eau/eaux usées
- Waste water tank 200 l
- Fresh water tank 200 l
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)

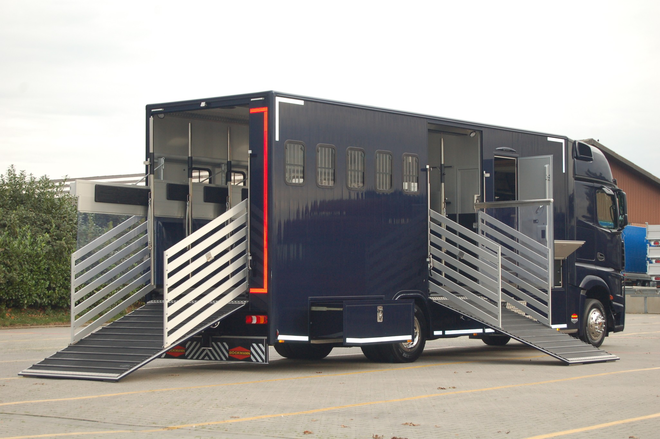

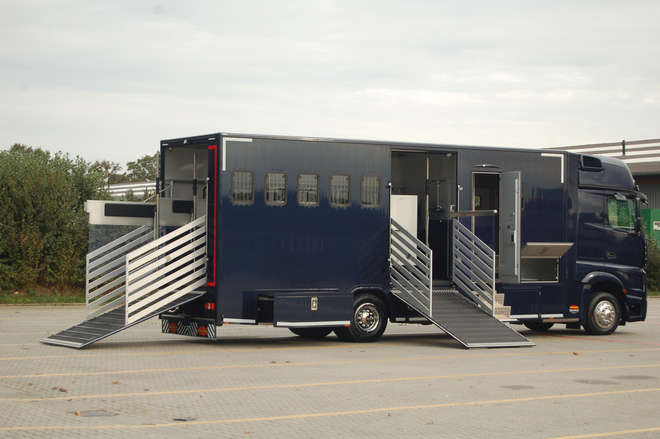

- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Caisse Espace pour chevaux
- Sélection possibilité d'attache
- Airliner rail with 12 tying chains
- Sélection bat-flanc
- Partition completely closed
- Autres options d'équipement
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 700W
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Caisse Sellerie
- Laterally large Tack room (deep drawn) in front of 2 horses,
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Châssis
-
Châssis
- Pilot's seat, with armrests, adjustable, rotatable
Intérieur
-
Séjour
- Sélection échelle vers l'entrée
- Folding steps insted of extension ladder, with treads of alu
- Autres options d'équipement
- Window (bullseye) in front door
- Passage to the cab (only Big Equipe)
- TV flat screen 22
- Blinds for living room window
- Blinds for living room window (370x500mm)
- Groom apartment 1000mm (minus space for one horse),
- TV SAT equipment, fully automatic
- Interconnecting horses area / living area with safety lock
- Curtain for access way
- Curtain for Top sleeper
- Curtain for living room window
- Wall Bracket (swiveble) for flat
- Living room window in the entrance door (370x500mm), multifunctional
-
Cuisine
- Ceramic cooking hob, two ring (230 V)
- Refrigerator 110 l
- Refrigerator 65 l
- Microwave (230V)
-
Salle de bain
- Mobile toilet, incl elec. flush, fresh- and waste water tank
-
Dormir
- Lift bed for 2 persons, with electric spindle drive
-
Éclairage
- LED ambient lighting
Divers
-
Installation électrique
- Sélection jeu électrique
- Electrical basic package 2
- Electrical basic package 3
- Autres options d'équipement
- AGM auxiliary battery 200 AH
- Hydraulic package
- 3,5 - 4 KW generator (diesel generator)
-
Chauffage
- Ceiling air conditioner
- Combi boiler, diesel D6 6000 watts (hot water and heating)
- Diesel auxiliary heating D2, 12 / 24 V, max. 2000 watts
- Diesel auxiliary heating D4, 12 / 24 V, max. 4000 watts
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
-
Eau/eaux usées
- Sélection réservoir d'eaux usées
- Waste tank 300 l (Surcharge)
- Sélection réservoir d'eau
- Fresh water tank 300 l (Surcharge)
- Autres options d'équipement
- Warm water, 15 l
