Caractéristiques
Nombre d'animaux
10 Chevaux
Familie
Equipe Familie, 26000 kg
Anzahl Schlafplätze

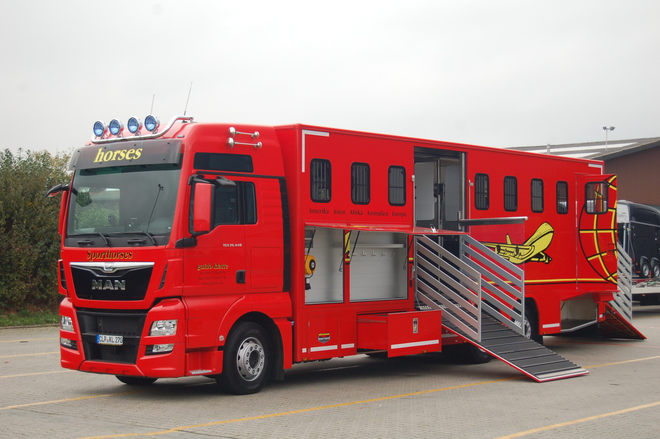

Some competitions are already won on the way to the event: The Big Equipe S with a large horse compartment for up to ten horses and XXL drivers cab is really impressive and will also spark your enthusiasm. Unsurpassed space and comfort? - what more can you ask?
Spécifications techniques
Base

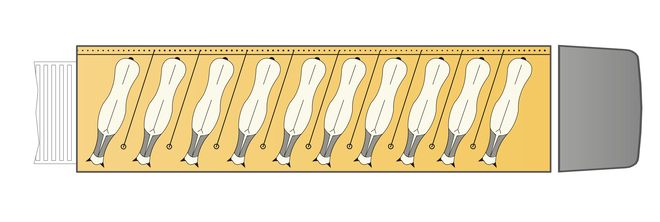

Nombre d'animaux
10 Chevaux
Wohnung
Badezimmer
Poids
PTAC
26000 kg
Charge utile
11145 kg
Dimension extérieure
Gesamtlänge
11310 mm
Gesamtbreite
2550 mm
Gesamthöhe
4000 mm
Dimension intérieure largeur
longueur intérieure
8860 mm
largeur intérieure
2440 mm
hauteur intérieure
2450 mm
Équipement standard
Parois
-
Coque en général
- Double ribbed hollow profile, 25 mm, anodized aluminum
- Insulated sandwich roof 50 mm thick (GRP)
- Rear loading flap, rubber floored, with lifting assistance, lockable
- 24mm high density plywood platform
-
Caisse Espace pour chevaux
- Tethering rings
- slidable H-partitions (9pc. ) aluminum with transparent PVC curtain
- Rubber flooring 30 mm (liquid rubber)
- Cordon in front of the loading flap
- Hay net hooks (1 per horse)
- Feeding trough for hanging, black plastic, with suspension (10pc.)
- Aluminum partition profiling
- Window, vertically sliding 450x600mm with integral window grille (10)
- Roof skylights (4)
- Lighting switchable from the driver's cab (10 lights in horse area)
- Rear panel with rubber coated
- Plastic kick protection in front of the horses
Divers
-
Installation électrique
- CEE input socket (230 V) with fuse and charger
- battery guard
- AGM battery 200 AH
-
Peinture
- Painture: white
Châssis
-
Châssis
- Driver seat standard
- Mercedes-Benz Actros Neu 25 L
- Tank 630 l
- 240 kW / 326 hp
- AdBlue® tank 60 l
- PowerShift 3 transmission
- Cruisecontrol
- Front spring, 7.5 t, 2-leaf
- Trailer coupling
- trailer socket. 24-V, 15 pole
- Front mirror, heatable
- main mirror electrically adjustable, on drivers side
- Wide angle mirror heatable
- Extended central locking systems
- electric windows
- Multifunction steering wheel
- Functional seat for passenger
- Air Conditioning
- Radio with USB port
Accessoires
Parois
-
Coque en général
- Stop board before loading ramp
- Acoustic warning device for open status of the loading flap.
- Hydraulic system for loading ramp
- Electric winch with remote control
- Electric winch with wired remote control
- L-awning mounted on the roof (4000x2500mm)
- Awning, recessed into wall (4000x2500mm)

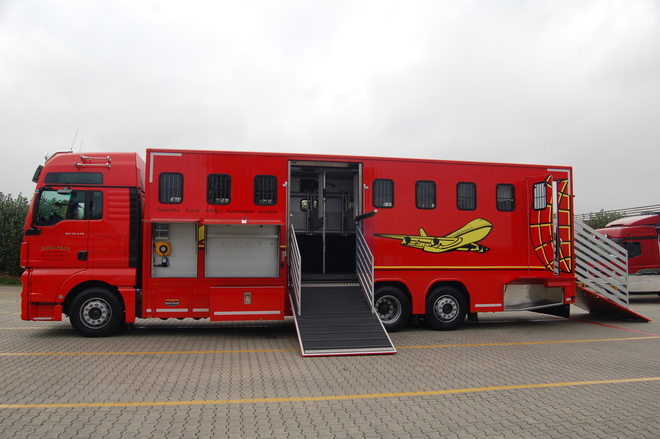

- Loading ramp lateral
- Ramp limiter for loading flap, of anodised aluminium profile
- Stowage box big
- Stowage box small
- Stowage box medium
- Stowage box extendable big
- Water hose with automatic roll up and electric pump
-
Caisse Espace pour chevaux
- Sélection possibilité d'attache
- Airliner rail with 20 tying chains
- Sélection bat-flanc
- Partition completely closed
- Autres options d'équipement
- Flap laterally in the head region of the horses in front of 2 horses
- Flap laterally in the head region of the horses in front of 3 horses
- Roof skylight, additional
- Electric roof vent
- Ceiling storage with grid
- Feed trough with water drain 1,600 mm
- Feed trough with water drain 2,400 mm
- additional camera
- Air conditioning, 960W
- Head divider, adjustable, for H-partition
- Excrement slide
- Calm lighting
- Temperature control in horse compartment (recordable, separate printo
- Video surveillance horses,revers.camera 7 Quad Split.monitor,2 camer
- Video surveillance horses,revers.camera, monitor in cab, 2 cameras
- Horizontal sliding window behind the horses
-
Caisse Sellerie
- Laterally large Tack room (deep drawn) in front of 2 horses,
- Tack room at the side,in front of horses, incl.2 saddle racks
- Tack room at the side,in front of horses, incl.2 saddle racks, 1600mm
Divers
-
Peinture
- Sélection peinture
- Paint, complete in metallic-colors (except PVC parts of the chassis)
- Paint, complete in RAL-Colors
- Paint of plastic parts (cab), metallic-colors
- Paint of plastic parts (cab), RAL colors
- Autres options d'équipement
- Lettering 2-Horse-Heads left and right
- Accessoires
Châssis
-
Châssis
- Pilot's seat, with armrests, adjustable, rotatable
