KT-PB-AL 2513/135 F
Price on request

Characteristics

Family
Van trailers
Total weight
1350 kg
Number of axles
1

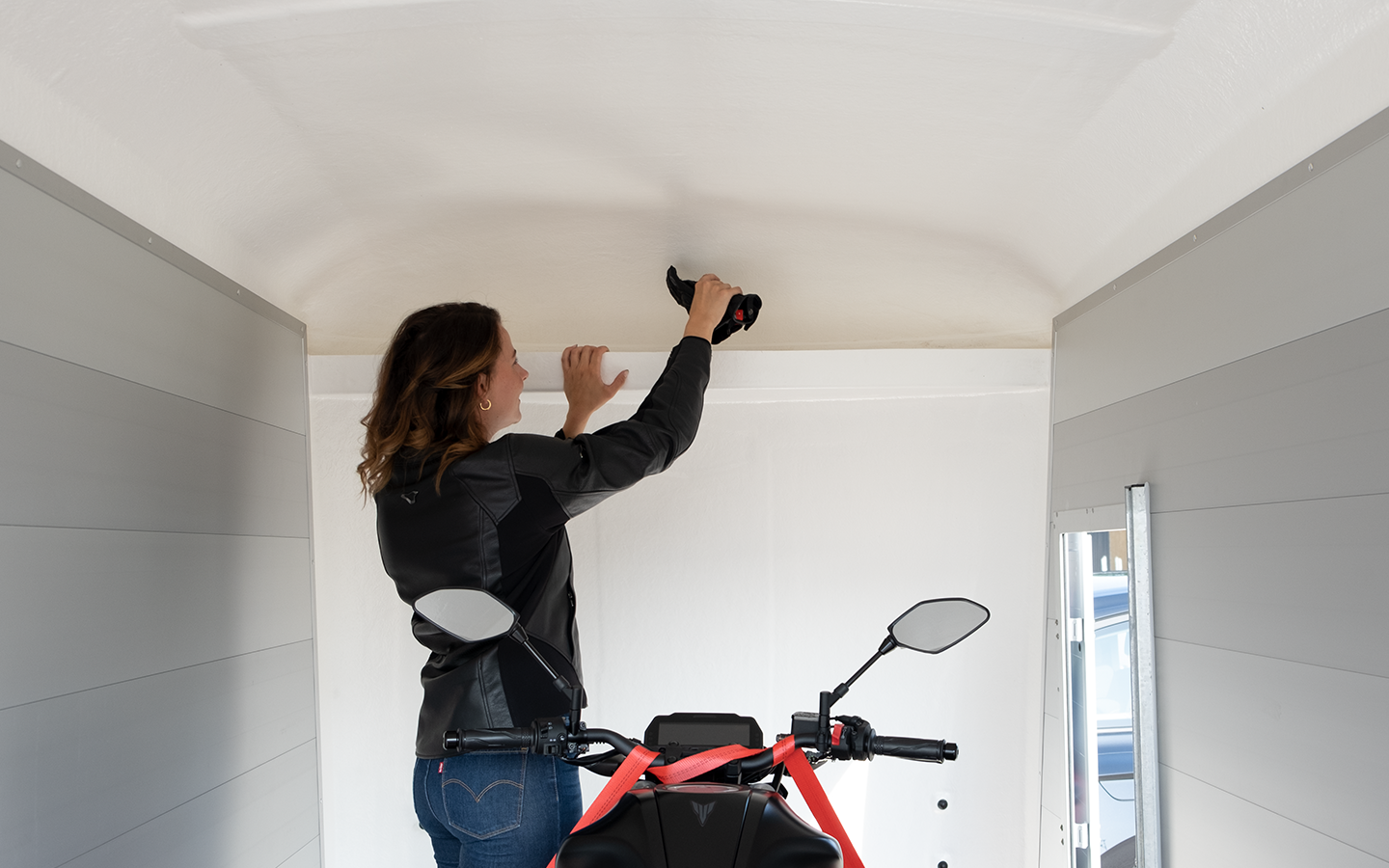

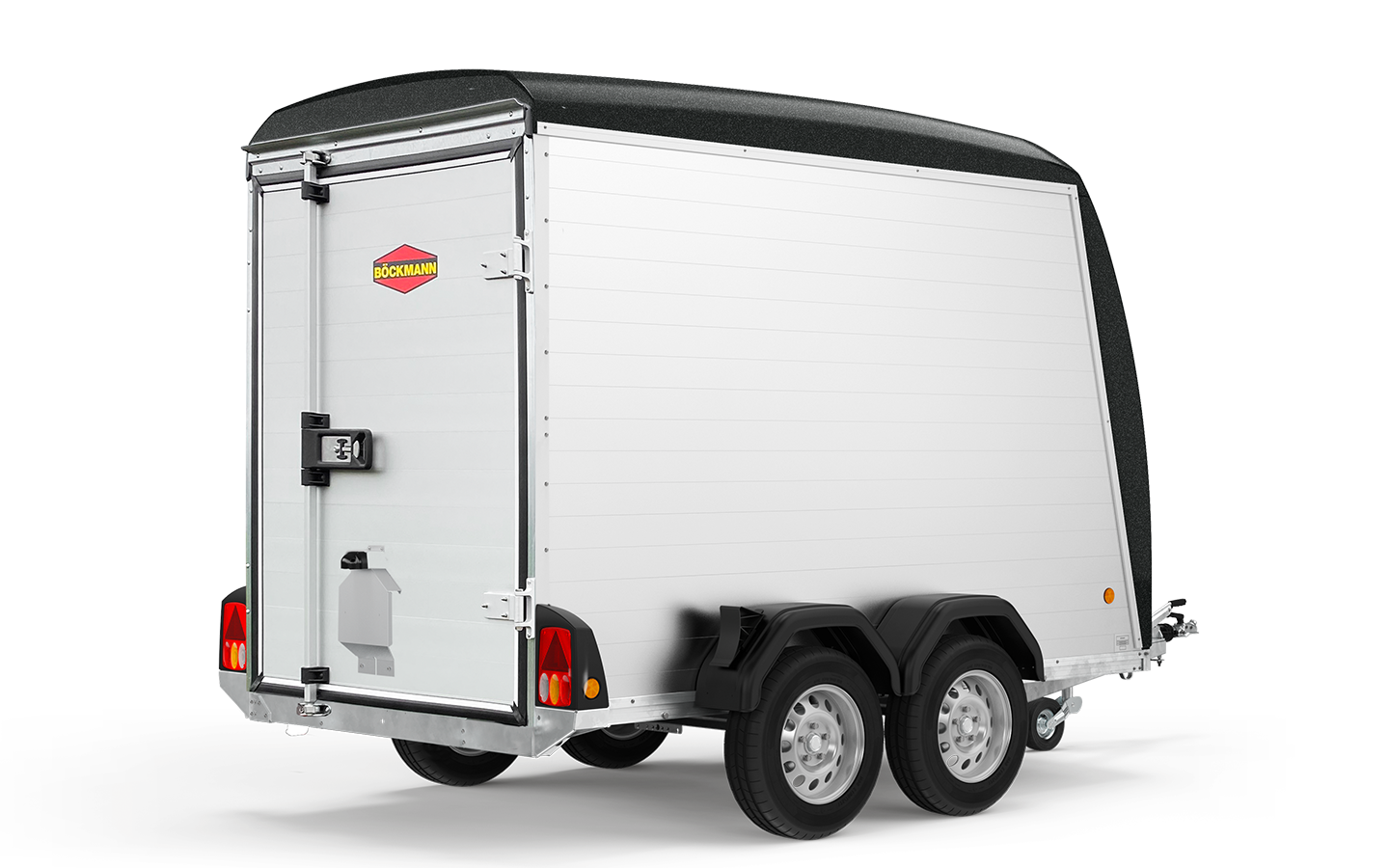

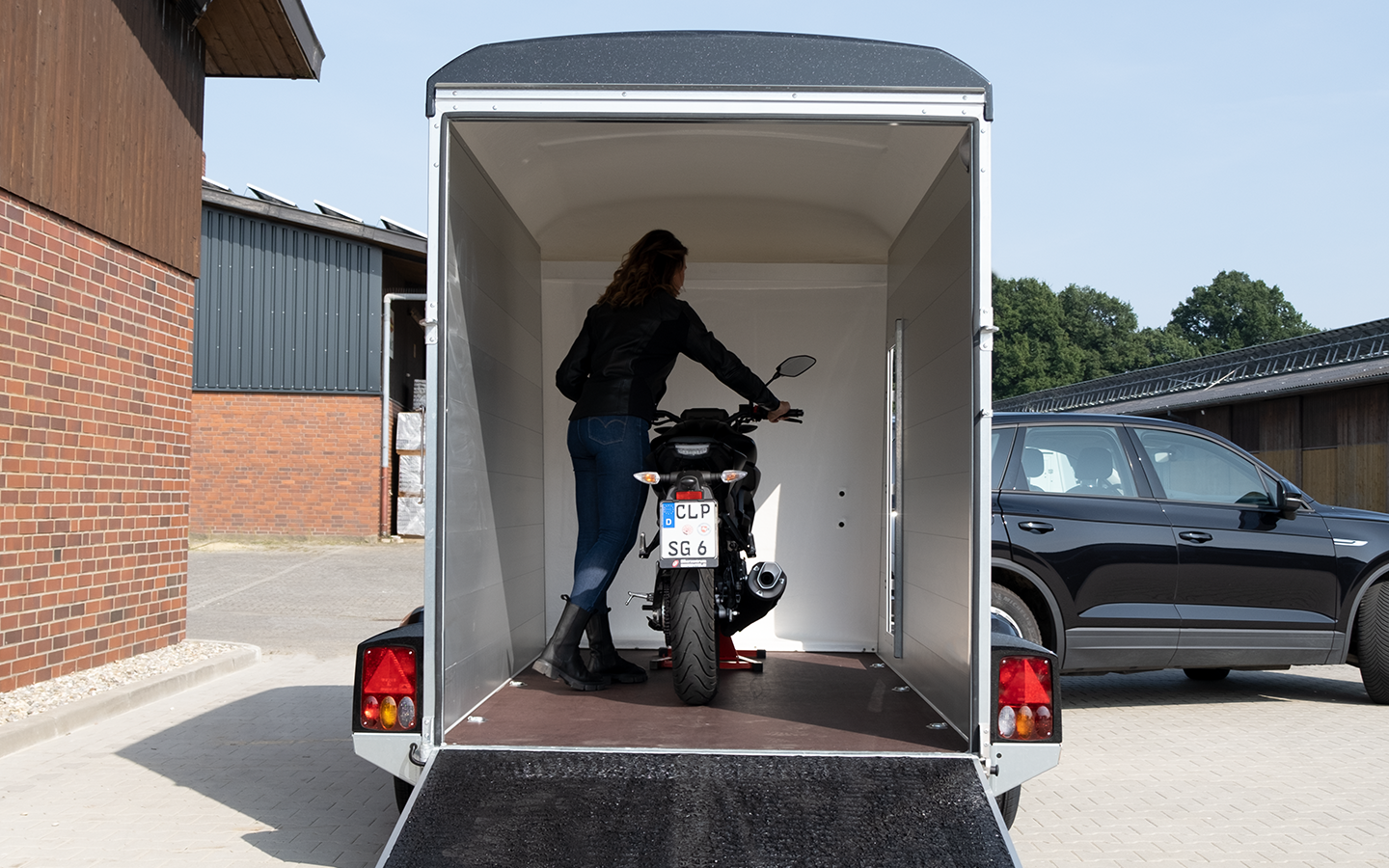

Highest functionality meets shapely design. The aluminium box trailers of the KT-PB-AL F series are particularly impressive due to their robust construction, all-aluminium body and low loading height. The trailers are equipped with a high-quality polyester bow and roof, which can be selected in several colours. The standard 1-wing door/ramp combination and many other detailed solutions complete the equipment of the trailer. The interior has an additional storage compartment in the front. Thanks to its design and the numerous accessories, the trailer is also ideal for transporting e-bikes or motorbikes. The lowered chassis ensures comfortable loading and unloading. With the Böckmann design package, the KT-PB-AL box trailer becomes a real eye-catcher.

The Böckmann added valuesKT-PB-AL-models

Mehrwert KT-PB-AL Niedrige Ladehöhe

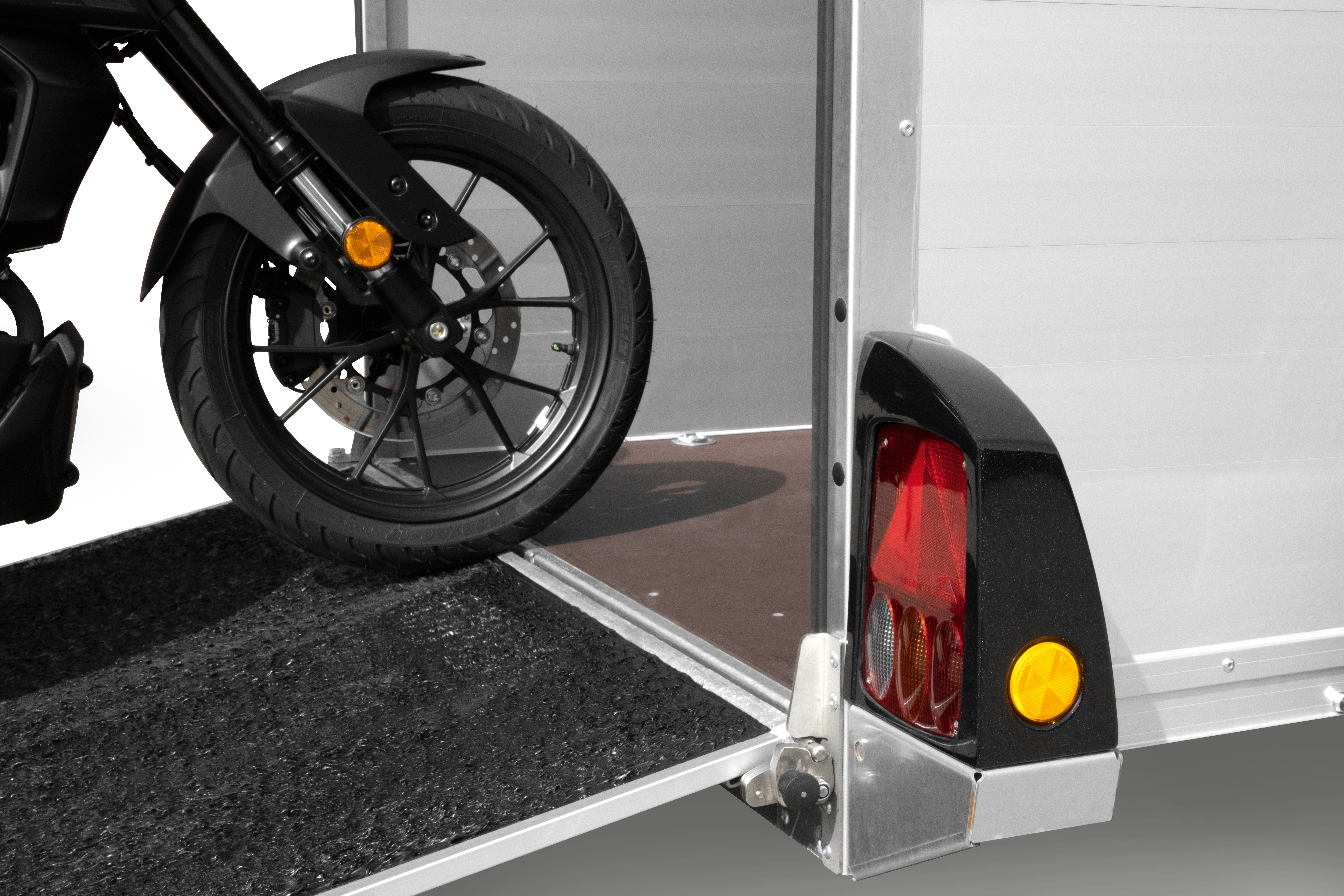

Low loading height

and flat ramp for particularly easy loading and unloading. Thanks to the F-version, the models have a particularly low loading height of 410-445 mm.

Mehrwert KT-PB-AL Robuster Aufbau
Robust body

made of particularly robust, double-walled profiles of anodised aluminium for maximum stability and durability.

Mehrwert KT-PB-AL Tür-Rampenkombination

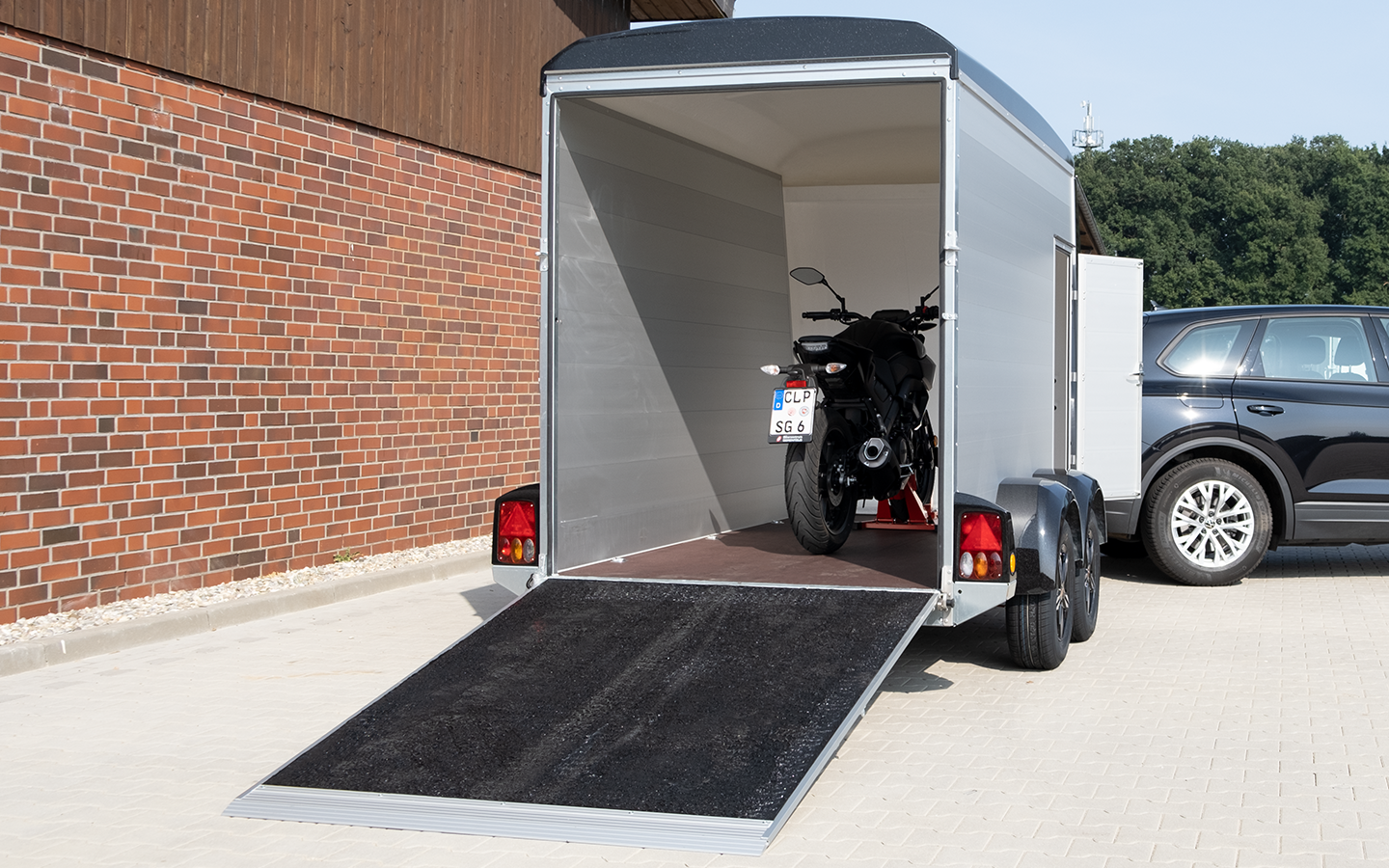

Door-ramp combination

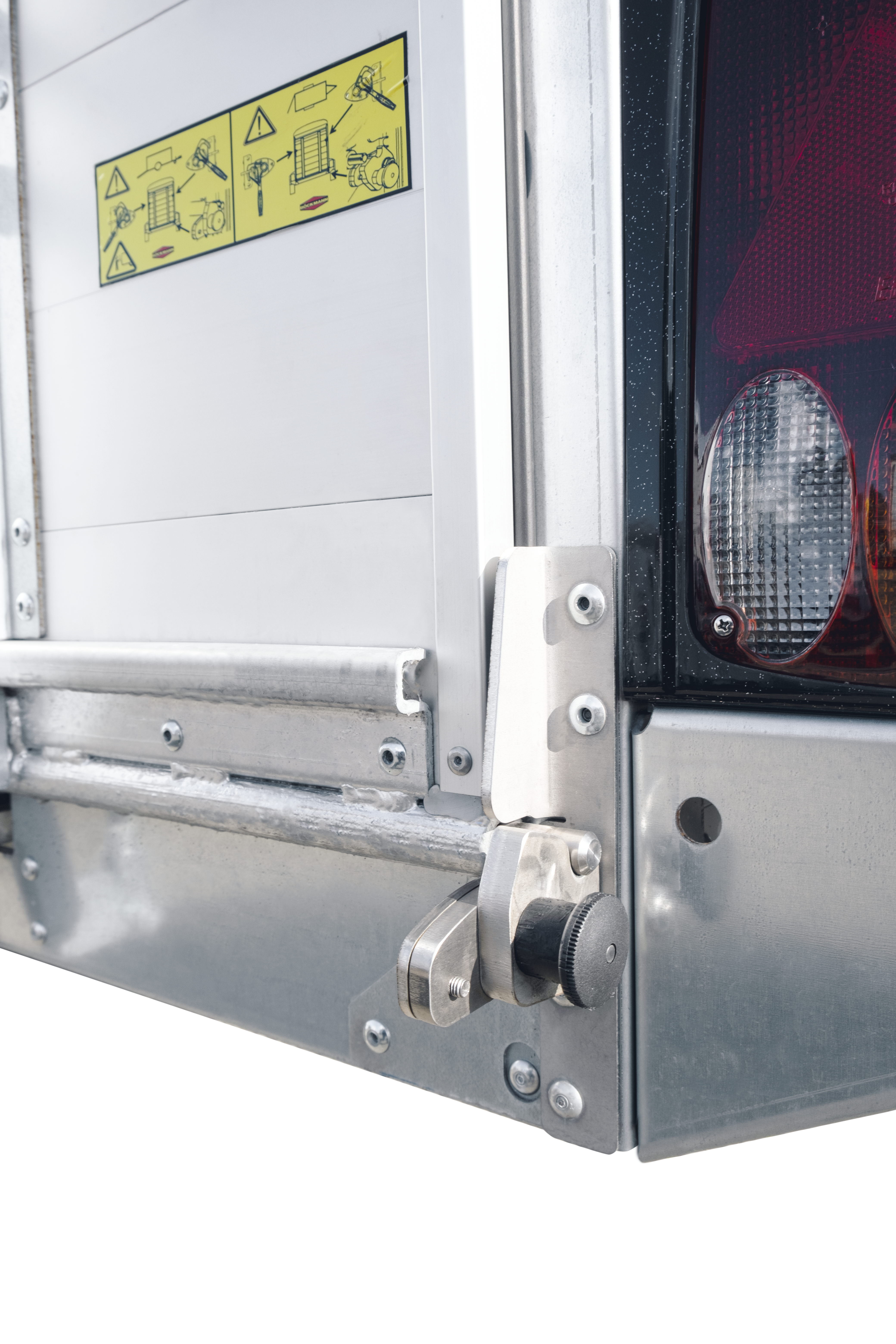

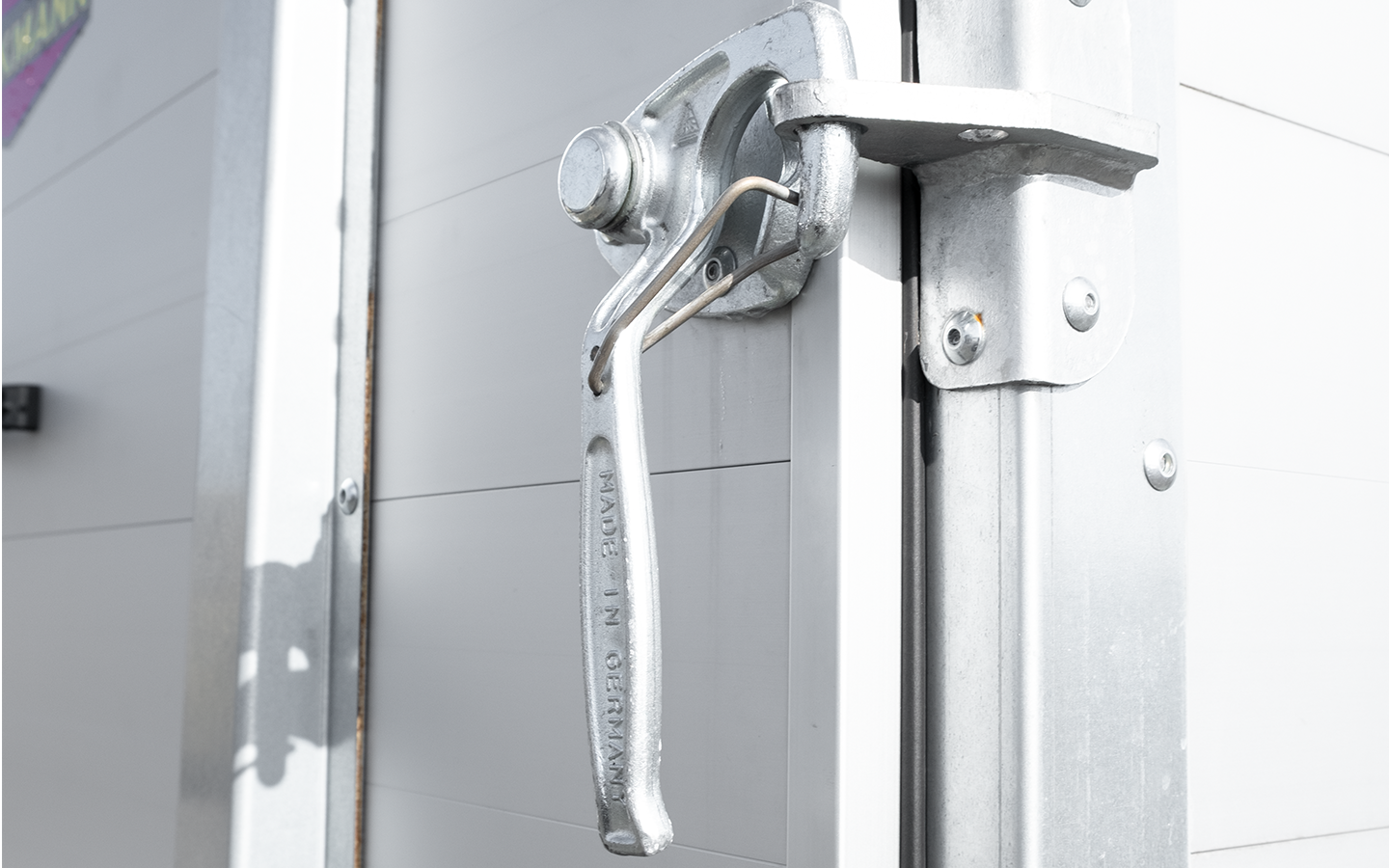

The perfect transport solution for flexible use as a door or drive-on ramp. Particularly sturdily constructed and lockable, with robust angle lever lock and particularly easy to operate with the handle in the right place.

Well thought out construction

Innovative details

Design packageAccessories

Practical accessories

Technical data

Base
Jockey wheel Jockey wheel
Tires Tires
14.0 Zoll
Loading height Loading height
430 mm
Overrun brake Overrun brake
Weight
Total weight Total weight
1350 kg
Payload Payload
920 kg
passageway dimensions
Headroom Headroom
1445 mm
Passage width Passage width
1245 mm
Internal dimensions
Interior length Interior length
2755 mm
Interior width Interior width
1315 mm
Interior height Interior height
1730 mm

Standard features

Body

Internal Space

Accessories

Body

  • Color of polyester roof
    • polyester roof, dark blue
    • polyester roof, dark green
    • polyester roof, flame red
    • polyester roof, yellow
    • polyester roof, grey
    • polyester roof, white
  • Color of polyester front bow
    • polyester front bow, dark blue
    • polyester front bow, dark green
    • polyester front bow, flame red
    • polyester front bow, yellow
    • polyester front bow, grey
    • polyester front bow, white
  • Color of polyester cover
  • Side walls
    • Selection wing-door / drive-on ramp
    • Combination: 1-wing door / access ramp with aluminium checker plate
    • price reduction: 1-wing door at rear
    • price reduction: 2-wing door at rear
    • Selection right side wall

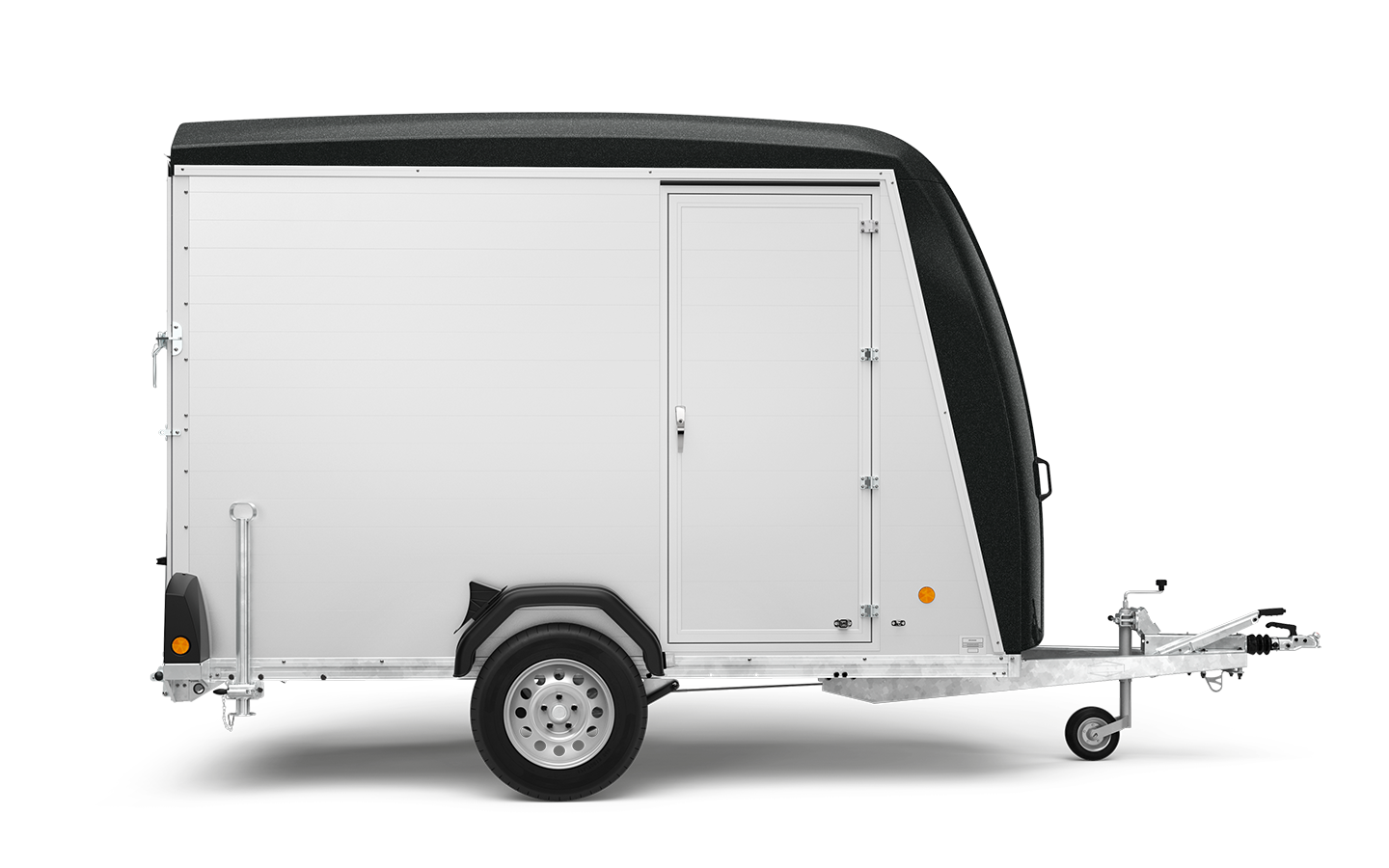

    • side door, right side 1220x460mm
  • Attachments
  • Floor
  • Lashings
    • airline rail left
    • airline rail left side, mounting height approx. 1000mm
    • airline rail left side, mounting height approx. 600mm
    • airline rail left side, mounting height approx. 800mm
    • AIr
    • airline rail right side, mounting height approx. 1000mm
    • airline rail right side, mounting height approx. 600mm
    • airline rail right side, mounting height approx. 800mm
    • Ankerschiene links
    • lashing rail left side, mounting height approx. 1000mm
    • lashing rail left side, mounting height approx. 600mm
    • lashing rail left side, mounting height approx. 800mm
    • L
    • lashing rail right side, mounting height approx. 1000mm
    • lashing rail right side, mounting height approx. 600mm
    • lashing rail right side, mounting height approx. 800mm
    • Selection lashing systems
    • shut-off bar (per pc.)
    • fitting with ring for airline rail
    • shut-off bar for airline rail
    • countersunk lashing ring
